Part Number: NCV69093
Couldn't load pickup availability
Specifications
| ABS Tone Ring Included | No |
|---|---|
| Axle Nut Included | Yes |
| Axle Nut Length (MM) | 21 |
| Axle Nut Socket Size (MM) | 33.7 |
| Axle Nut Thread Size | M22 - 1.5 |
| Axle Nut Type | Bihexagonal |
| Boot Material | Neoprene |
| California Proposition 65 | Yes |

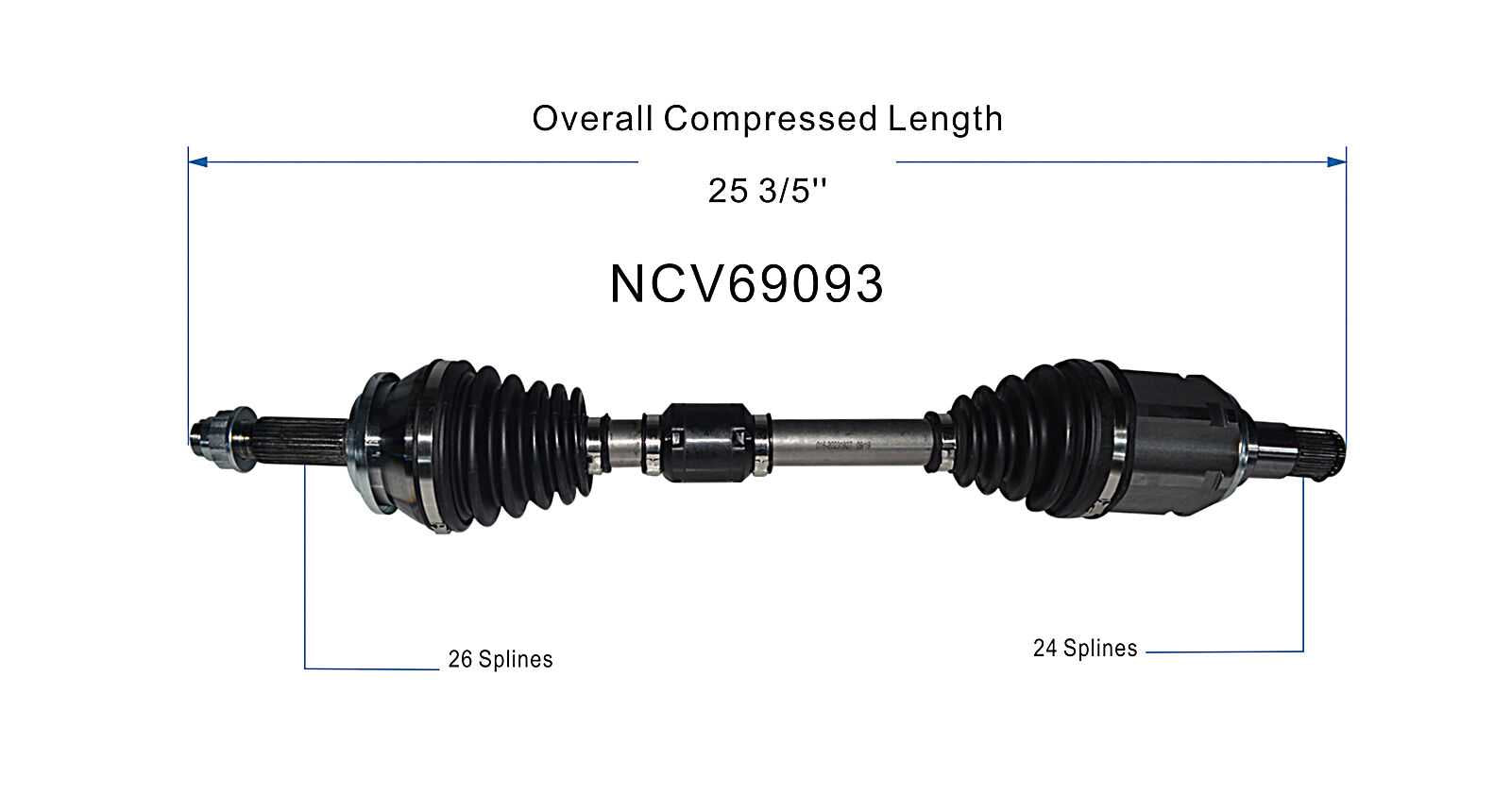

| Compressed Length (MM) | 650 |
| Compressed Length (IN) | 25.59 |
| Extended Length (IN) | 27.71 |
| Inboard Joint Type | Male |
| Inboard Spline Quantity | 24 |
| Outboard Joint Type | Conventional |
| Outboard Spline Quantity | 26 |
| Placement | Front Left |
| Prop 65 Applicable | Yes |
| Prop 65 Applicable | Yes |
Product Description
Quality Driven CV Axles is what GSP is known for. Designed to deliver high quality performance and reliability, GSP CV Axles are manufactured to withstand the demands of daily driving conditions. With GSP CV Axles, you can expect all axle components to be heat treated to the highest standards to provide premium strength, and extend service life. Each GSP CV Axle undergoes rigorous testing to meet or exceed OE specifications ensuring proper fit and optimal performance for your vehicle. With high-quality materials, advanced manufacturing techniques, and precise engineering, GSP CV Axles are the perfect replacement component and brand of choice amongst automotive professionals.
Features & Benefits
- Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
- All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
- Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
- High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
- To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Applications
| Year Range | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2016-2022 | Toyota | Prius | - | Front Left |
| 2017-2022 | Toyota | Prius Prime | - | Front Left |
| 2019-2022 | Toyota | Prius AWD-e | - | Front Left |
| 2020-2022 | Toyota | Corolla | Hybrid LE | Front Left |
