GSP

Part Number: NCV66501XDP

883331166559

Contact Dealer for Price

Specifications

ABS Tone Ring Included Yes
ABS Tone Ring Tooth Quantity 44
Axle Nut Included Yes
Axle Nut Length (MM) 20
Axle Nut Socket Size (MM) 32
Axle Nut Thread Size M22 - 1.5
Axle Nut Type Hex
Boot Material Thermoplastic
California Proposition 65 Yes
Compressed Length (IN) 26.89
Compressed Length (MM) 683
Extended Length (IN) 29.36
Inboard Joint Type Female
Inboard Spline Quantity 25
Outboard Joint Type Conventional
Outboard Spline Quantity 27
Placement Front
Prop 65 Applicable Yes
Prop 65 Applicable Yes

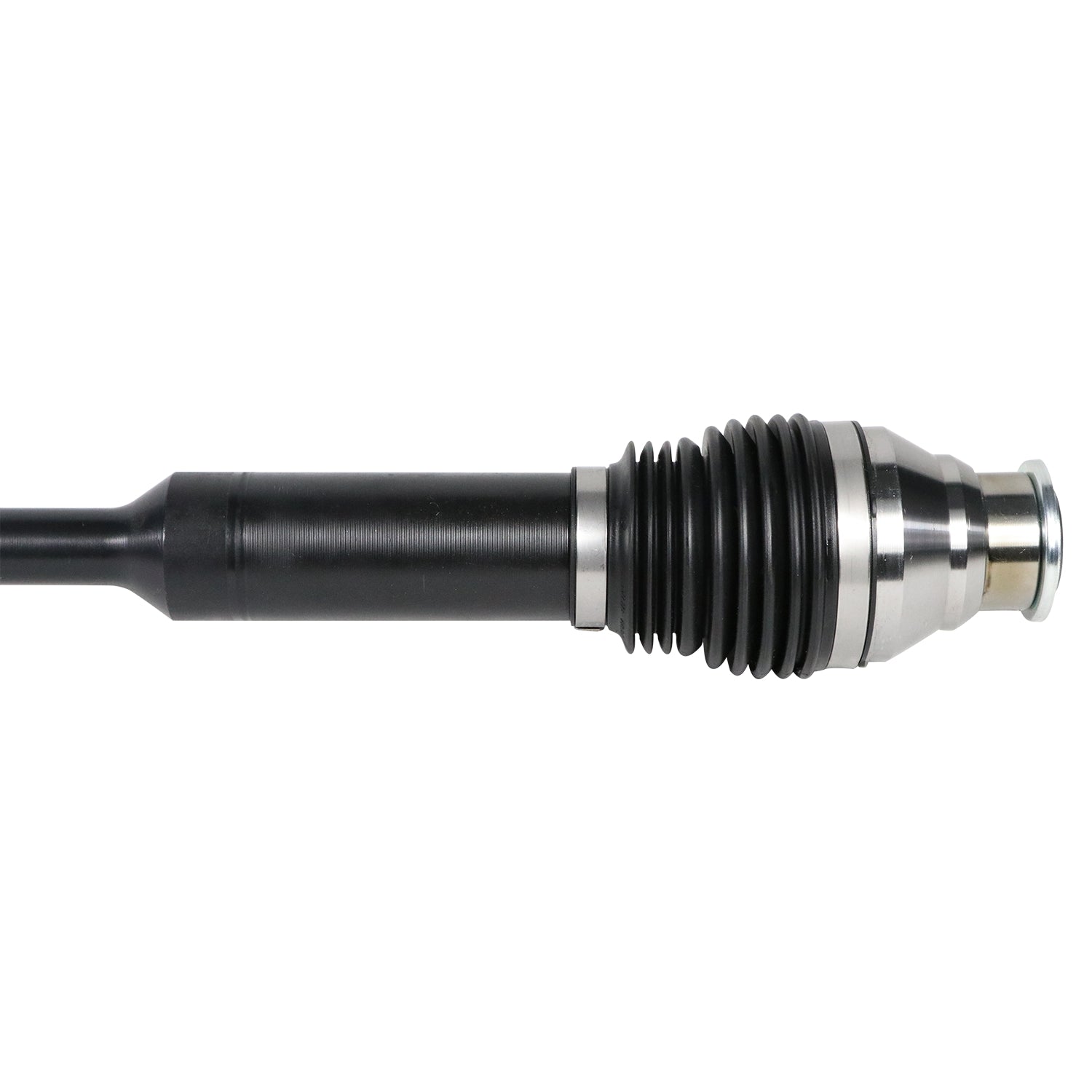

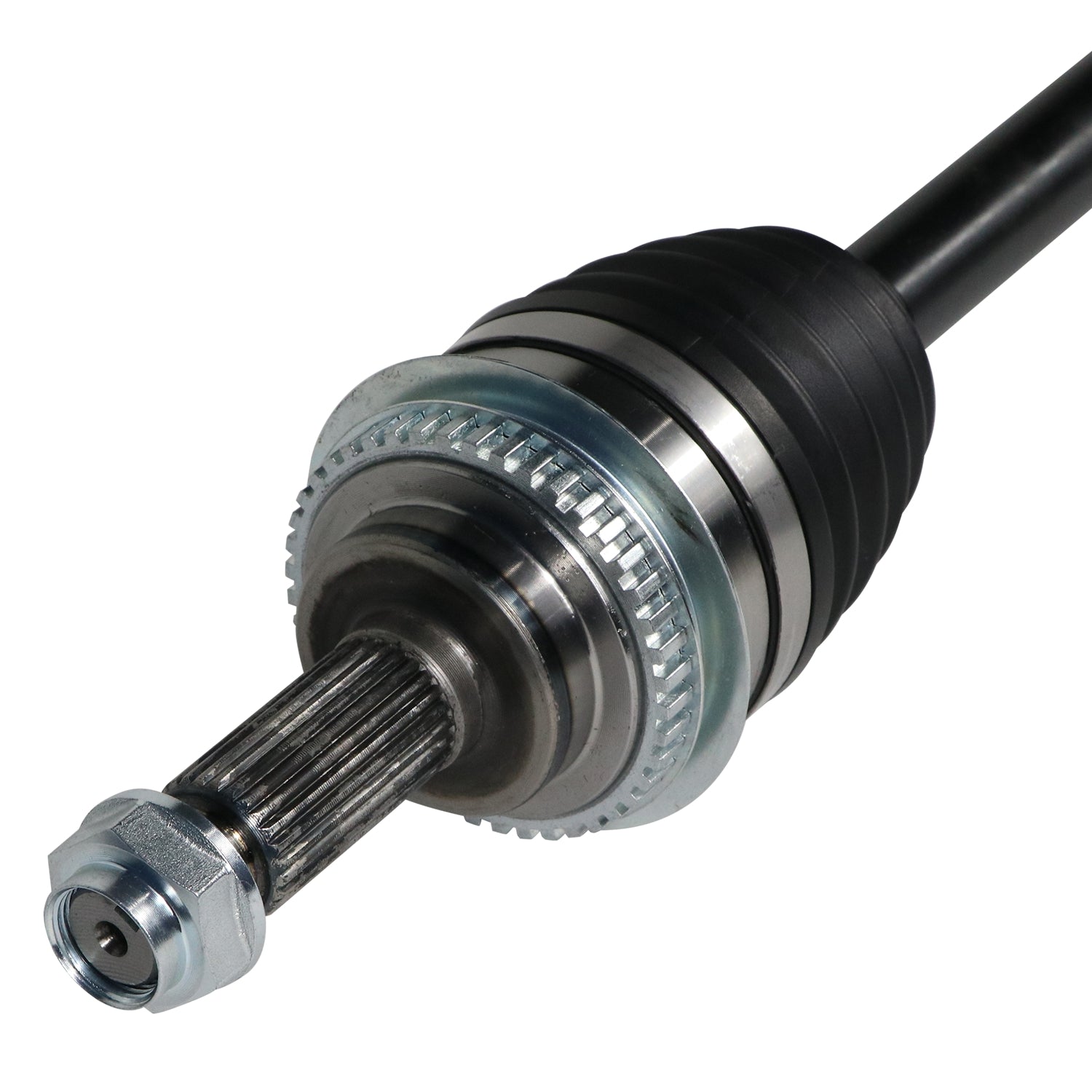

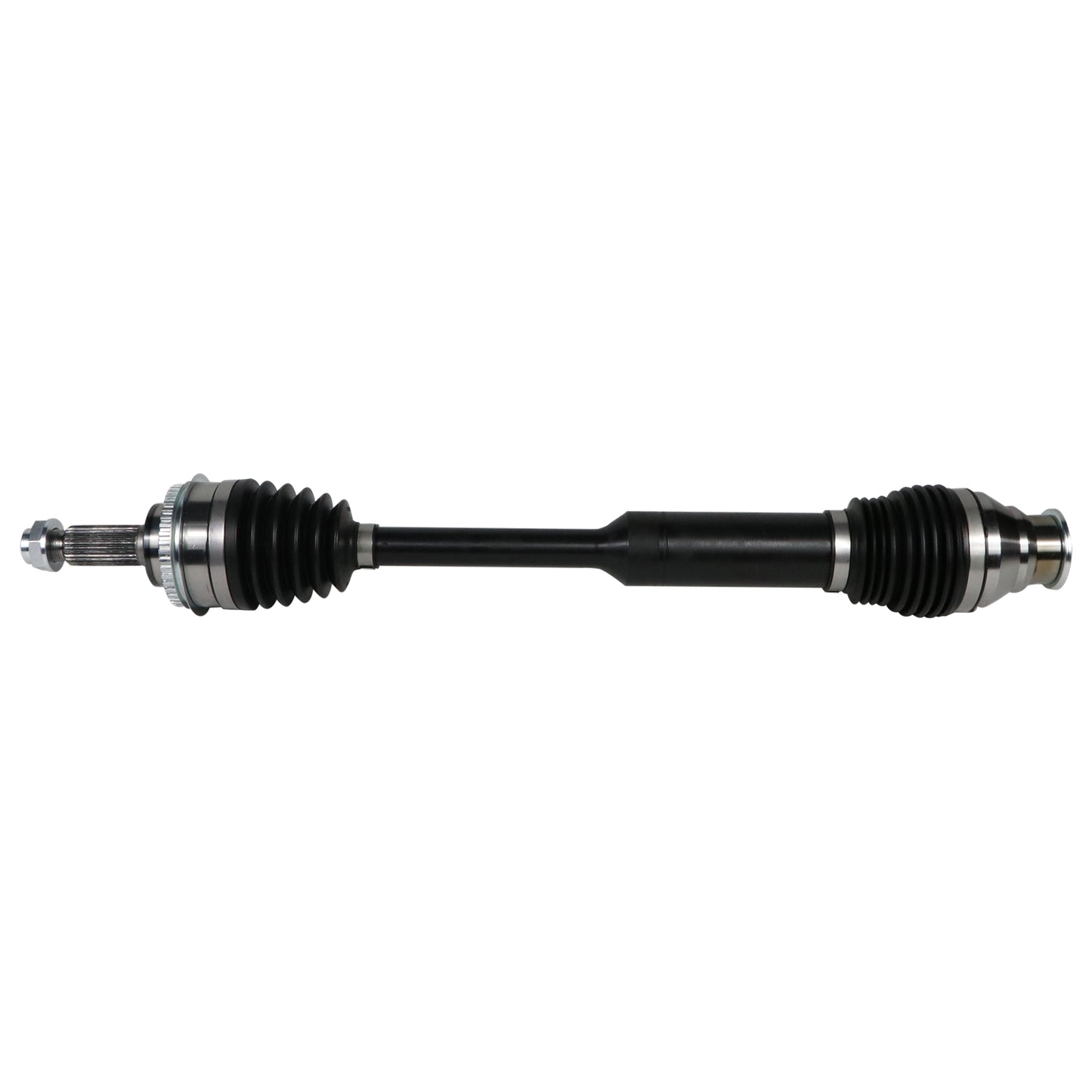

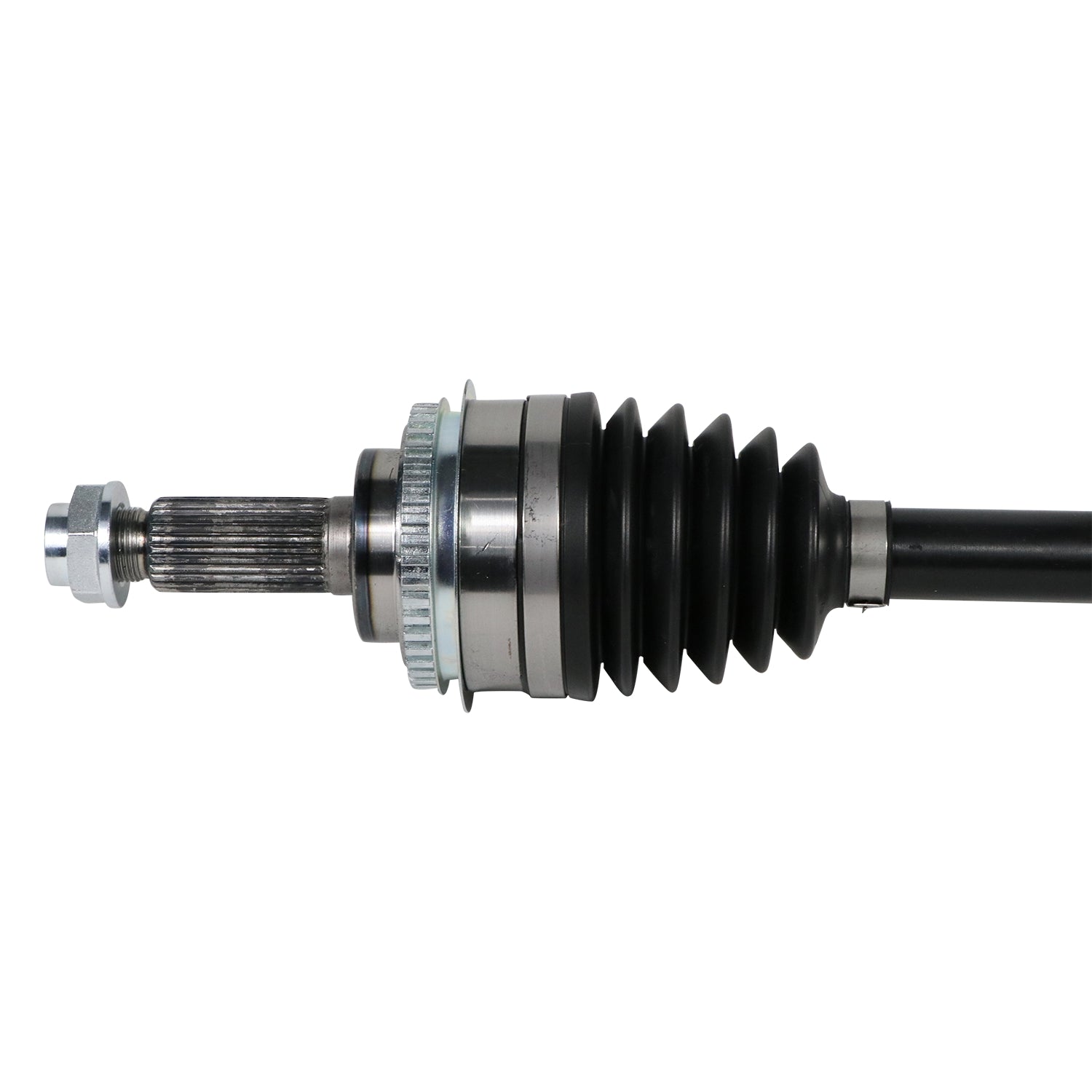

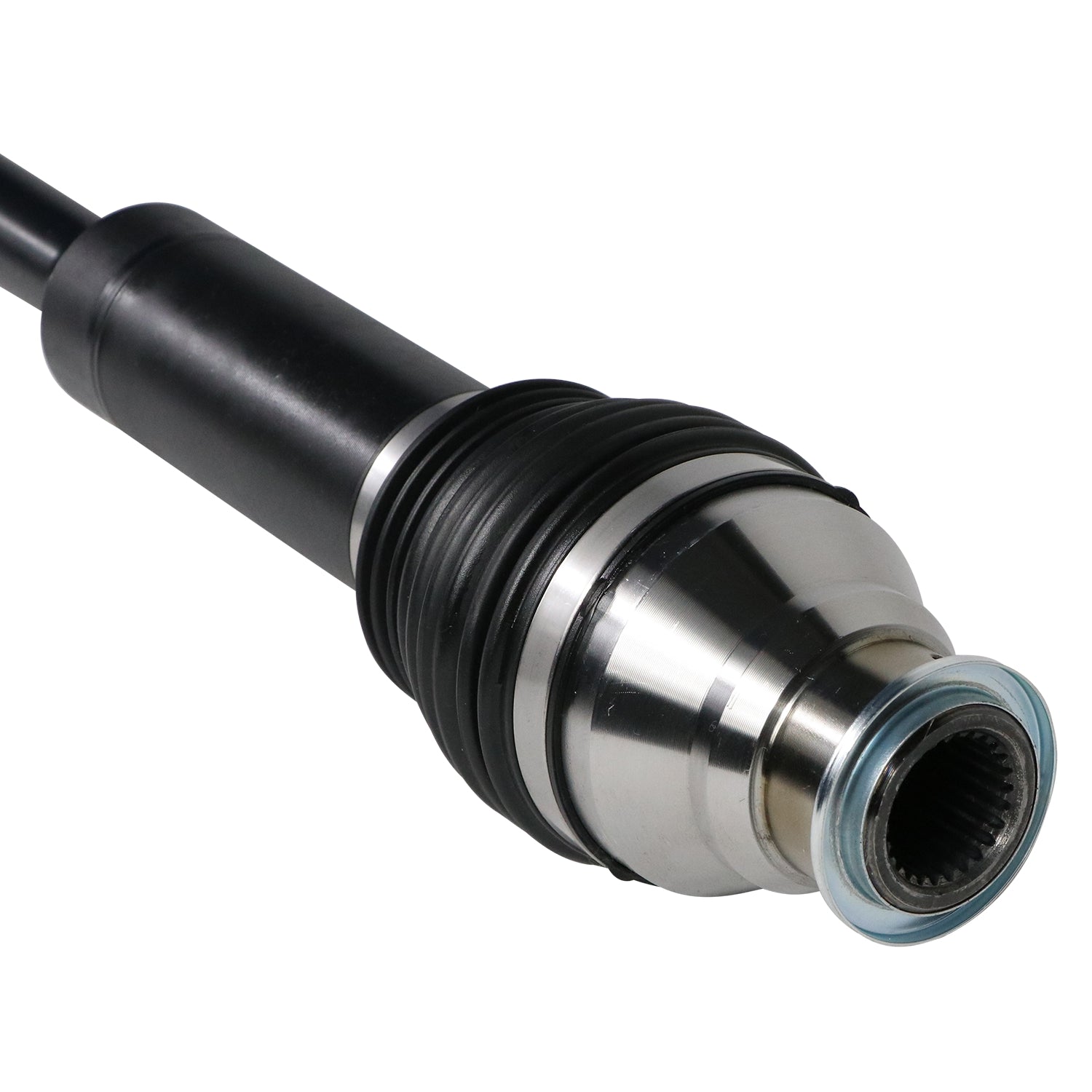

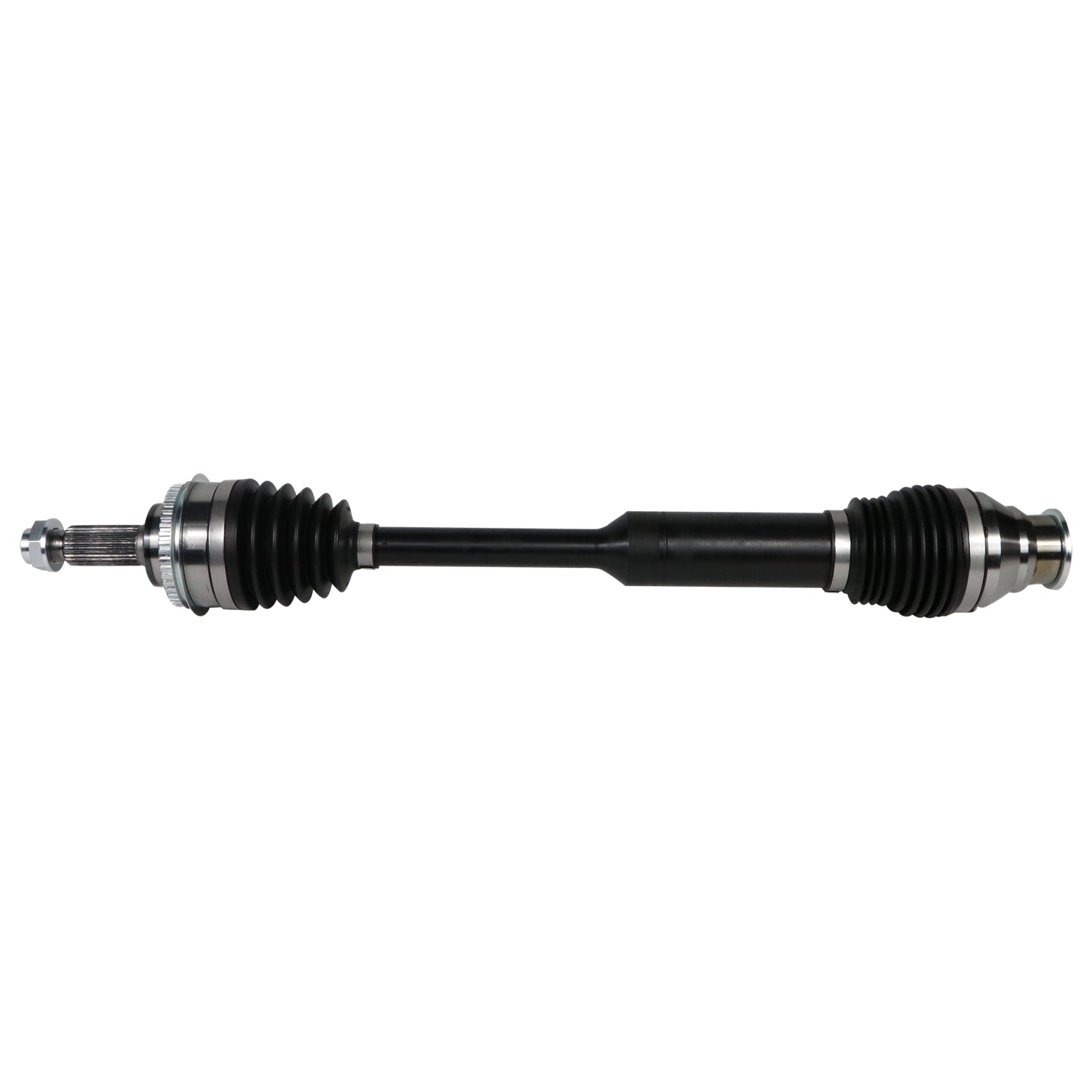

Subaru (Wagon - 2.0, 2.5) CV Axle Assembly - Front

$191.95 USD

Product Description

Unlock a new level of performance and capability for your lifted vehicle's suspension with GSP Extreme Duty Plus (XDP) Axles designed for extended travel. Elevate your vehicle's suspension with confidence, knowing that GSP XDP axles are manufactured for extreme operating angles. Equipped with a revolutionary rolling guide spline bearing driven center bar, GSP XDP axles provide an unparalleled advantage over OE designed options. Experience increased travel capabilities that allow your lifted vehicle to navigate through challenging terrains. Thanks to the innovative high-speed 8 ball joint featured on both the wheel and gearbox sides of the GSP XDP axle, you can expect a higher articulation angle of up to 47 degrees. This exceptional capability allows for maximum performance across all travel ranges and significantly improves torque capability. Say good-bye to corrosion, GSP Extreme Duty Plus (XDP) Axles are finished with a durable protective coating that prevents corrosion to ensure a longer service life. Trust in the reliability, durability, and travel capability that sets GSP Extreme Duty Plus Axles apart from the rest.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2003-2006 Subaru Baja - Front
2000-2002 Subaru Forester - Front
1999-2001 Subaru Impreza RS Front
1999-2001 Subaru Impreza Outback Front
2002-2002 Subaru Impreza Outback Front
2002-2002 Subaru Impreza TS Front
2002-2002 Subaru Impreza WRX Front
2003-2003 Subaru Impreza TS Front
2003-2003 Subaru Impreza TS Front
2003-2003 Subaru Impreza WRX Front
2003-2003 Subaru Impreza Outback Front
2004-2004 Subaru Impreza TS Front
2004-2004 Subaru Impreza TS Front
1999-2004 Subaru Legacy - Front
2000-2004 Subaru Outback - Front
