GSP

Part Number: 694402LF

883331339250

Contact Dealer for Price

Specifications

ABS Tone Ring Tooth Quantity 48
ABS System Type Encoder
Bearing Generation Gen 3
Bearing Type Ball
Bolts Included No
Flange Diameter (MM) 135
California Proposition 65 Yes
Driven Type Driven
Wheel Pilot Diameter (MM) 54
Driven Type Driven
Flange Bolt Hole Quantity 3
Flange Offset (MM) 47.5
Flange Bolt Hole Quantity 3
Flange Diameter (MM) 135
Hub Pilot Diameter (MM) 85
Flange Bolt Hole Quantity 3
Flange Diameter (MM) 135
Flange Included Yes
Bolts Included No
Flange Included Yes
Flange Offset (MM) 47.5
Flange Offset (MM) 47.5
Hub Pilot Diameter (MM) 85
Spline Quantity 26
Driven Type Driven
Hub Pilot Diameter (MM) 85
Spline Quantity 26
Flange Included Yes
Wheel Pilot Diameter (MM) 54
Prop 65 Applicable Yes
Wheel Stud Quantity (EA) 5
Spline Quantity 26
Wheel Studs Included Yes
California Proposition 65 Yes
Wheel Pilot Diameter (MM) 54
Wheel Stud Quantity (EA) 5
Prop 65 Applicable Yes
Wheel Studs Included Yes

Toyota (2.0) Wheel Bearing and Hub Assembly - Front

$0.00 USD

Product Description

When it comes to your vehicle's hub assemblies, settle for nothing less than the best. Choose GSP Hub Assemblies. Durability and performance are key features of our hub assemblies. We use only the highest quality materials for optimized performance in weather and driving conditions. No matter what the road has to offer, GSP has you covered. Our bearing housings are manufactured with polyamides, ensuring a smooth surface that is free from defects, burrs, and cracks. This not only enhances impact toughness but also provides outstanding resistance against aging. GSP Hub Assemblies go through a state-of-the-art vacuum vulcanization process, elevating the structural integrity of the seal and rubber components for a longer service life. Through strict quality control, GSP Hub Assemblies are precisely spaced to the appropriate clearance, guaranteeing smooth rotation, and increasing longevity. No more unnecessary abrasion, say hello to a smoother ride! GSP Wheel Hub Assemblies are the perfect choice to keep your car moving forward.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2020-2024 Toyota Corolla - Front
2019-2019 Toyota Corolla SE Front
2019-2019 Toyota Corolla XSE Front
2019-2022 Toyota Prius AWD-e - Front
2021-2021 Toyota Prius 2020 Edition Front
2021-2021 Toyota Prius LE Front
2021-2021 Toyota Prius L Eco Front
2021-2021 Toyota Prius Limited Front
2021-2021 Toyota Prius XLE Front
2017-2022 Toyota Prius Prime - Front
2017-2018 Toyota Prius Four Front
2017-2018 Toyota Prius Four Touring Front
2017-2018 Toyota Prius One Front
2017-2018 Toyota Prius Three Front
2017-2018 Toyota Prius Three Touring Front
2017-2018 Toyota Prius Two Front
2017-2018 Toyota Prius Two Eco Front
2016-2016 Toyota Prius Four Front
2016-2016 Toyota Prius Four Touring Front
2016-2016 Toyota Prius Three Front
2016-2016 Toyota Prius Three Touring Front
2016-2016 Toyota Prius Two Front
2016-2016 Toyota Prius Two Eco Front
2019-2019 Toyota Prius LE Front
2019-2019 Toyota Prius L Eco Front
2019-2019 Toyota Prius Limited Front
2019-2019 Toyota Prius XLE Front

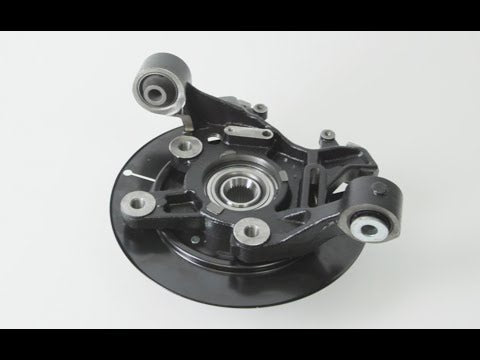

See It In Action
