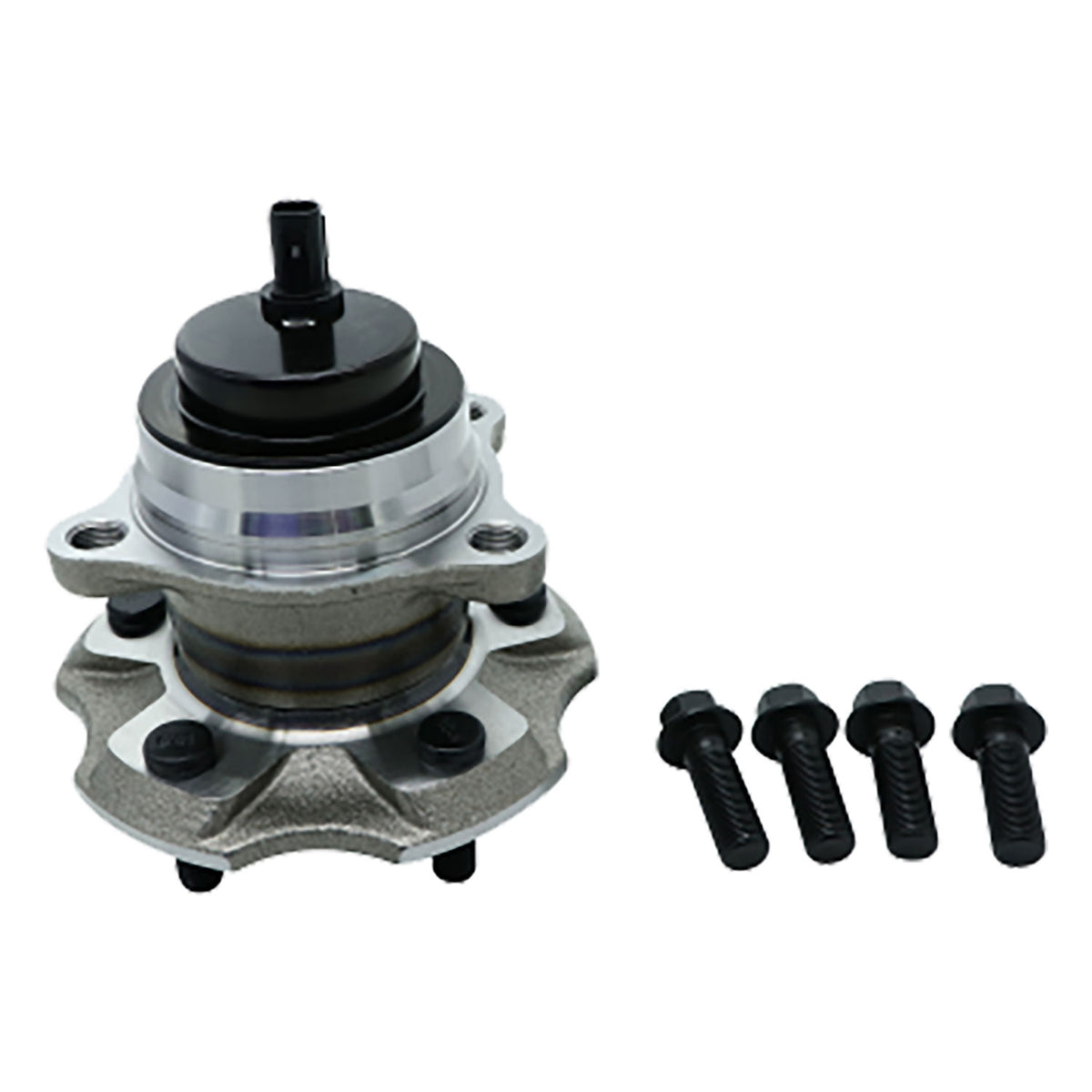

Part Number: 690063HA
Couldn't load pickup availability
Specifications
| ABS Tone Ring Tooth Quantity | 48 |
|---|---|
| ABS System Type | Encoder |
| Bearing Generation | Gen 3(solid) |
| Bearing Type | Ball |
| Bolt Circle Diameter (MM) | 114.3 |
| Bolt Thread Pitch (MM) | M14×1.5 |
| Bolts Included | Yes |
| Brake Pilot Diameter (MM) | 62 |
| California Proposition 65 | Yes |
| Driven Type | Non-driven |
| Flange Bolt Hole Quantity | 4 |
| Flange Bolts Included | Yes |
| Flange Diameter (MM) | 152 |
| Flange Included | Yes |
| Flange Offset (MM) | 65 |
| Hub Pilot Diameter (MM) | 86.9 |
| Placement | Rear |
| Prop 65 Applicable | Yes |
| Spline Quantity | / |
| Wheel Pilot Diameter (MM) | 60 |
| Wheel Stud Quantity (EA) | 5 |
| Wheel Studs Included | Yes |
Product Description
Features & Benefits
- Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
- All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
- Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
- High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
- To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Applications
Data coming soon...
