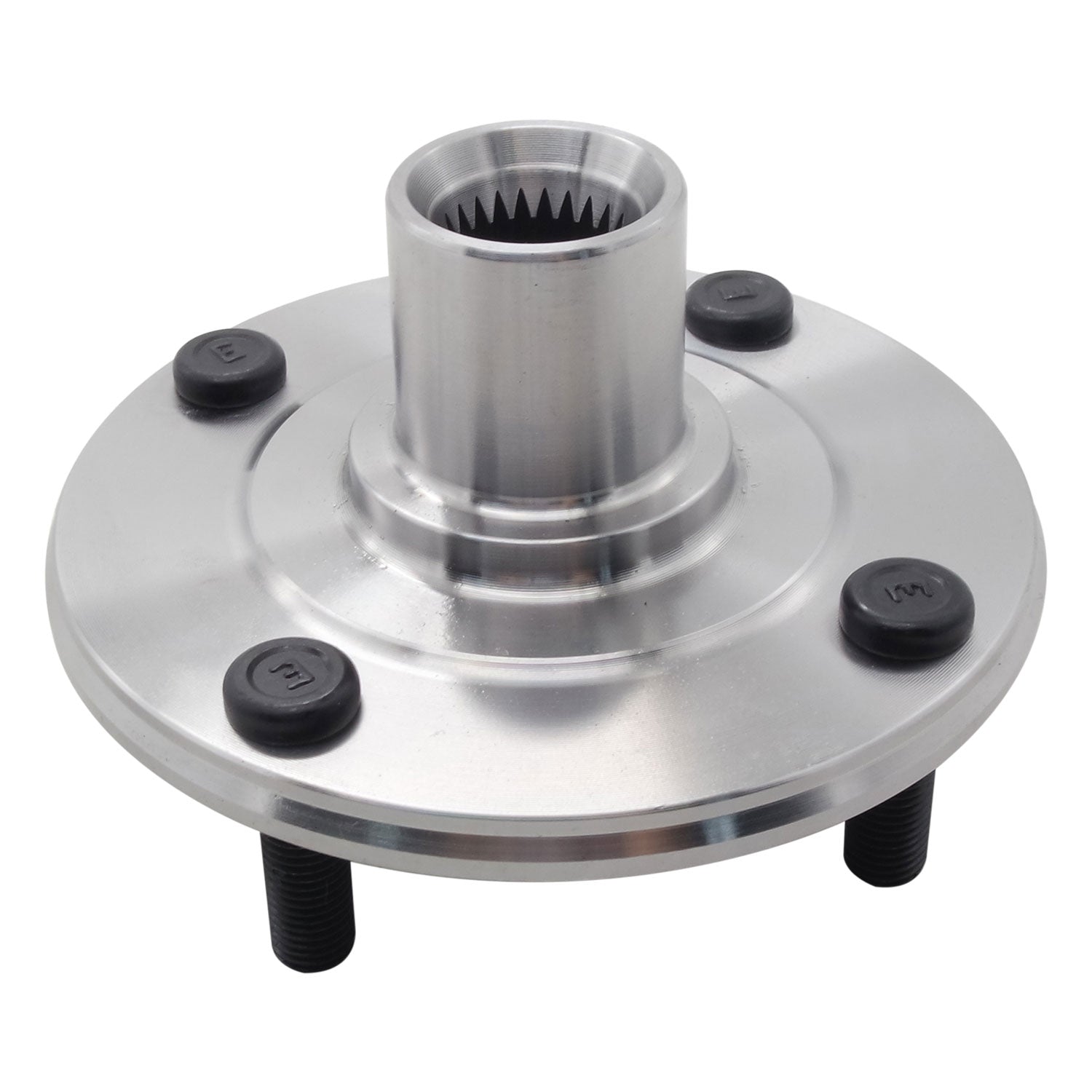

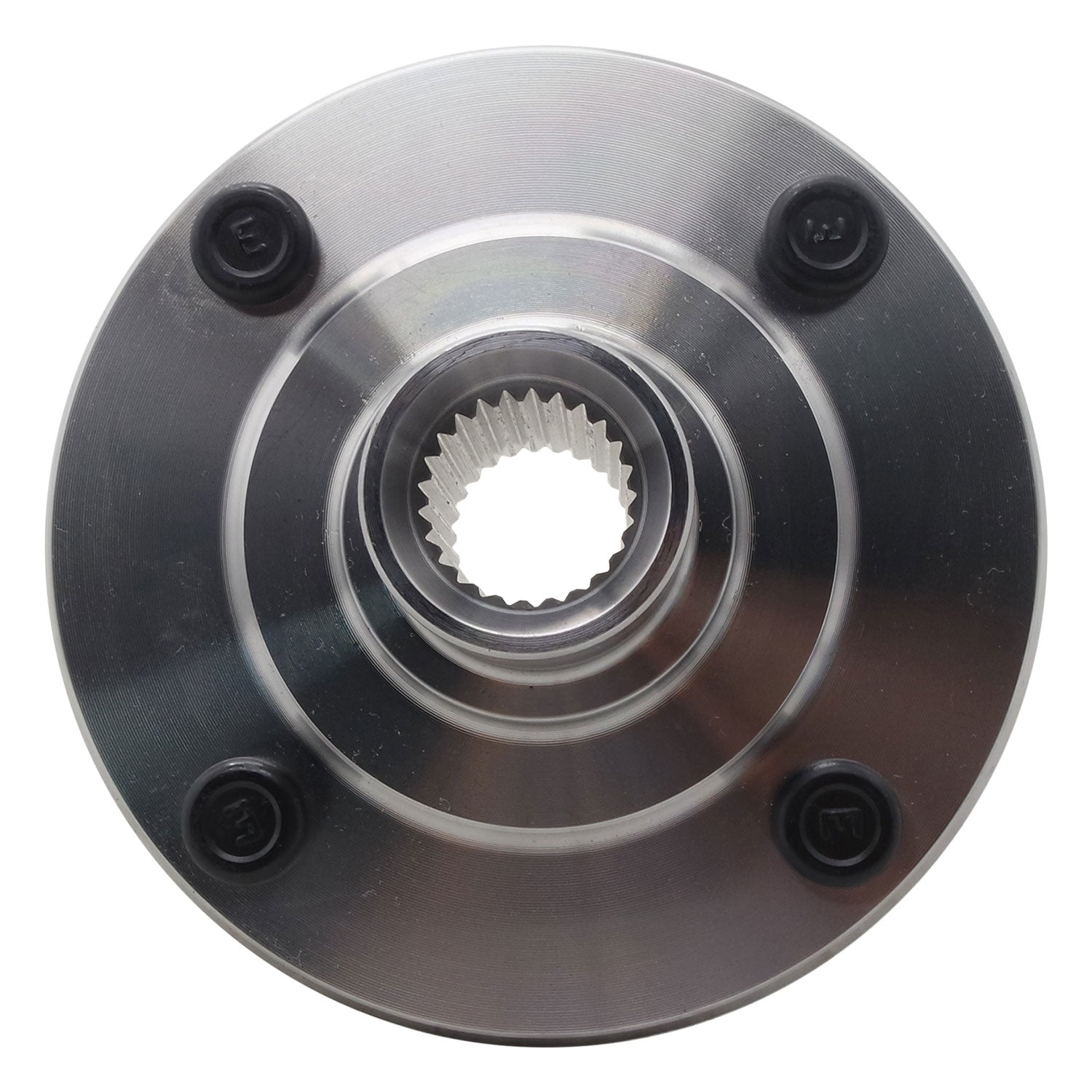

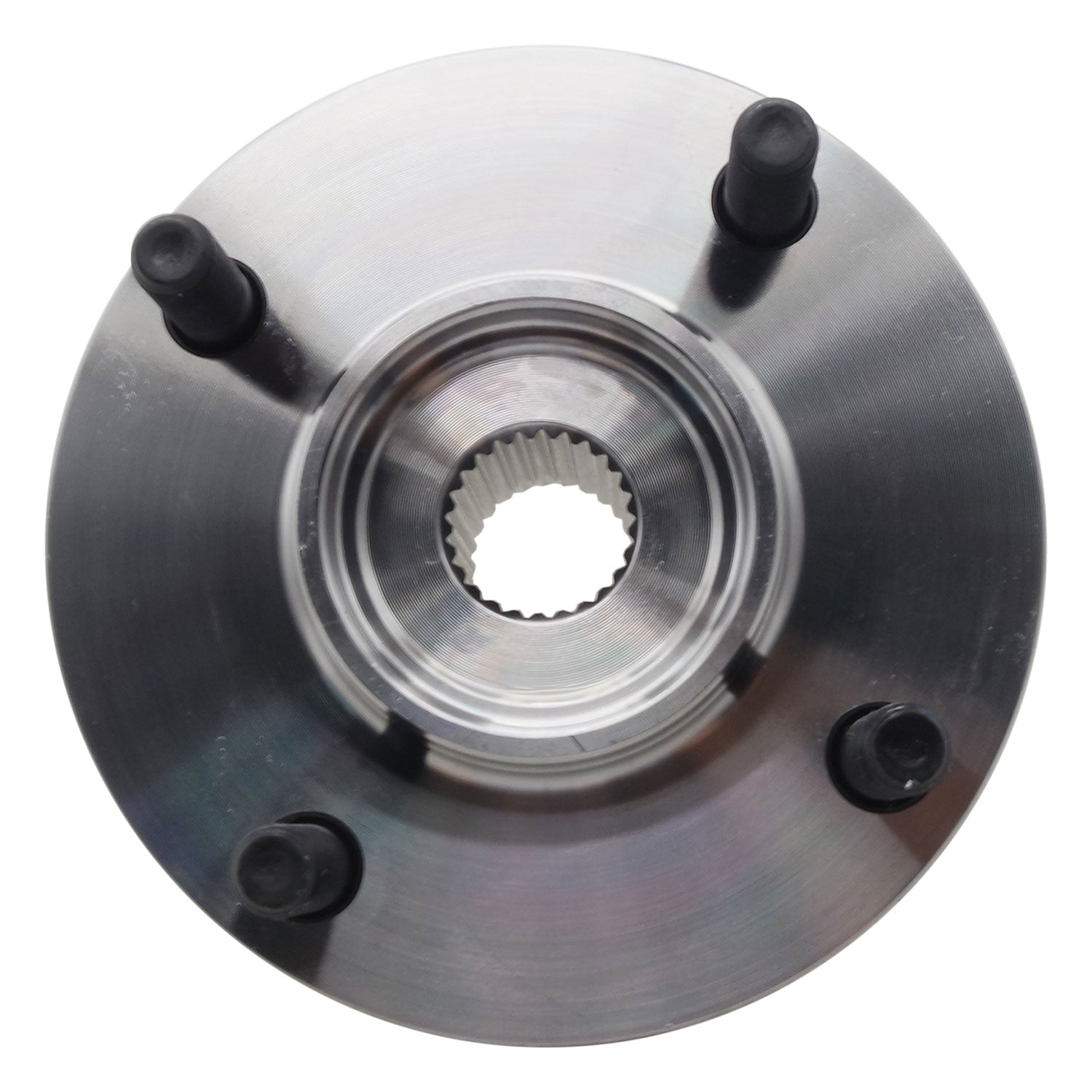

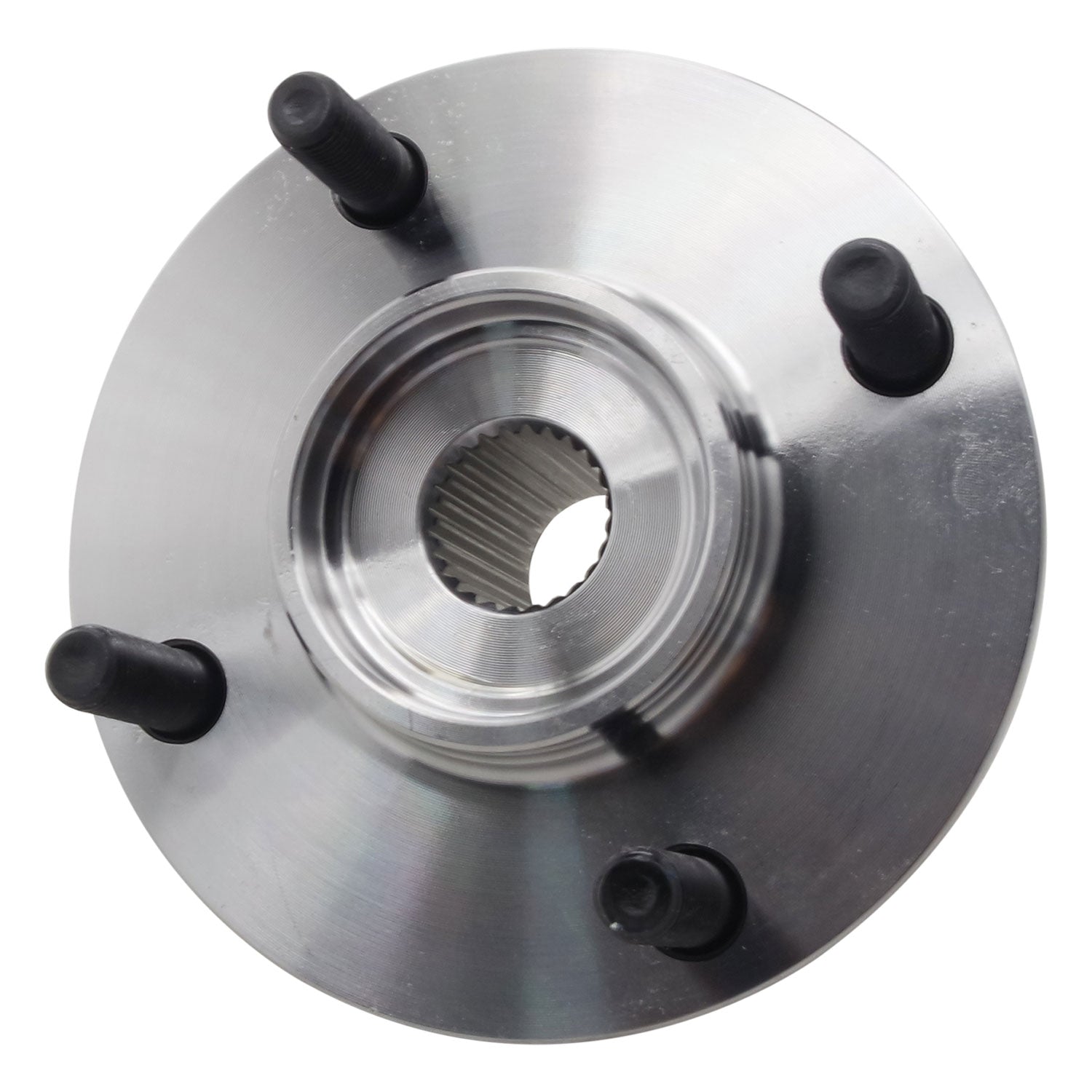

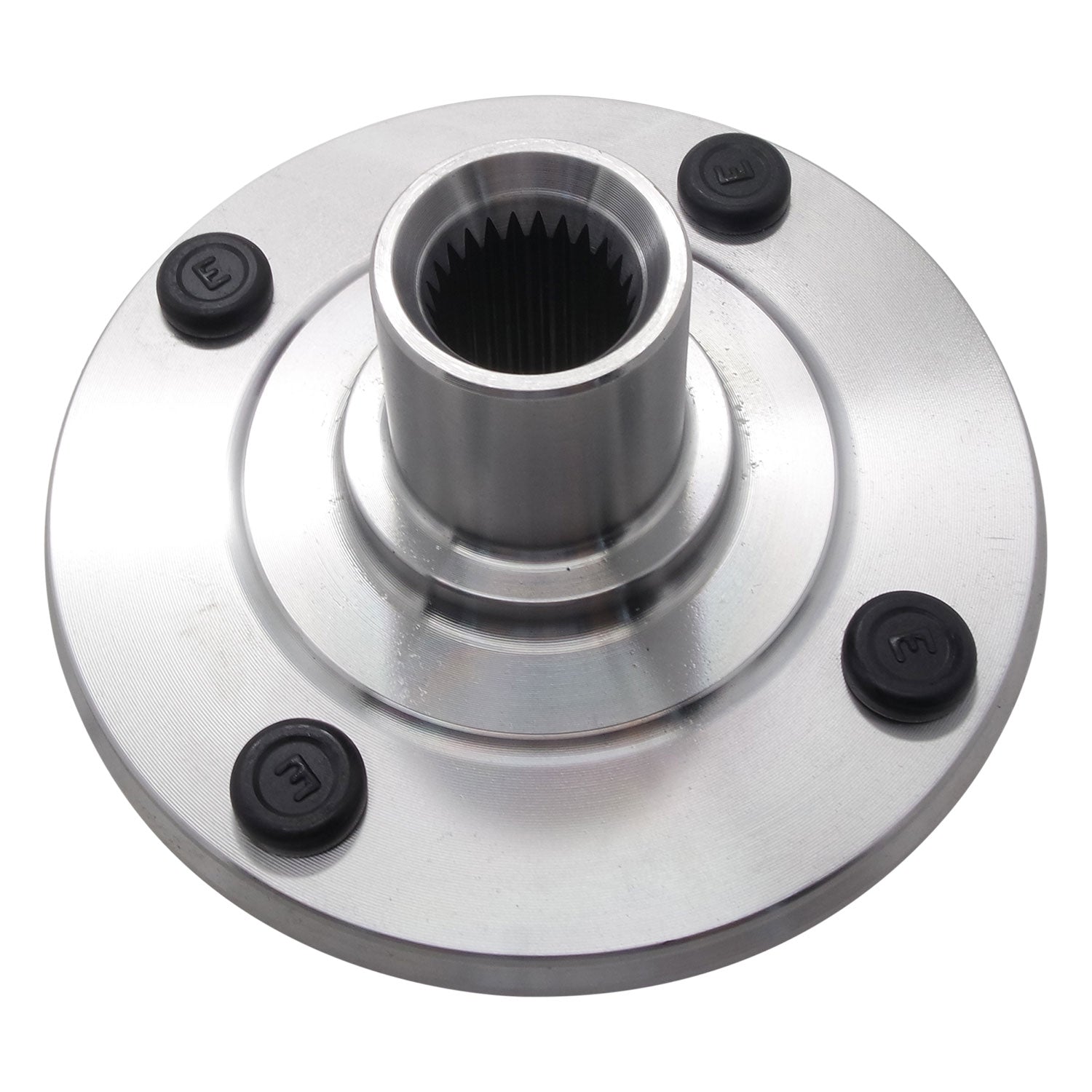

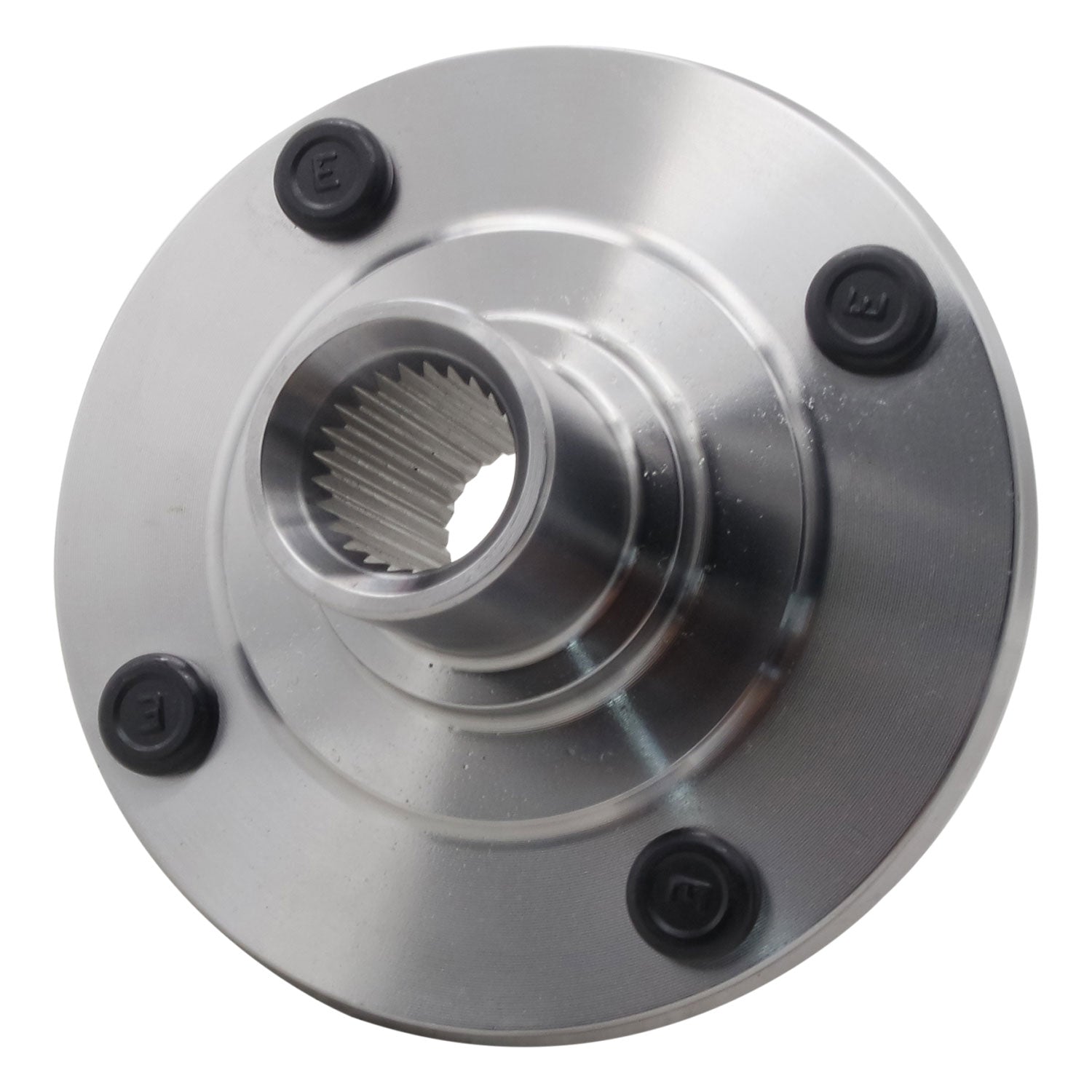

Part Number: 510004
Couldn't load pickup availability
Specifications
| ABS Tone Ring Tooth Quantity | / |
|---|---|
| Anti Lock Braking System | No |
| Anti Lock Braking System | No |
| Bearing Generation | Wheel Hub |
| ABS System Type | / |
| Bolt Circle Diameter (MM) | 114.3 |
| Bearing Generation | Wheel Hub |
| Bolt Thread Pitch (MM) | / |
| Bearing Type | / |
| Bolts Included | No |
| Bolt Circle Diameter (MM) | 114.3 |
| Brake Pilot Diameter (MM) | 69 |
| Bolt Thread Pitch (MM) | / |
| California Proposition 65 | Yes |
| Bolts Included | No |
| Driven Type | Driven |
| Brake Pilot Diameter (MM) | 69 |
| Flange Bolts Included | No |
| California Proposition 65 | Yes |
| Flange Diameter (MM) | 142.5 |
| Driven Type | Driven |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | / |
| Flange Offset (MM) | 39 |
| Flange Bolts Included | No |
| Hub Pilot Diameter (MM) | 40 |
| Flange Diameter (MM) | 142.5 |
| Placement | Front |
| Flange Included | Yes |
| Flange Offset (MM) | 39 |
| Prop 65 Applicable | Yes |
| Hub Pilot Diameter (MM) | 40 |
| Spline Quantity | 25 |
| Placement | Front |
| Wheel Pilot Diameter (MM) | 67 |
| Wheel Stud Quantity (EA) | 4 |
| Prop 65 Applicable | Yes |
| Wheel Studs Included | Yes |
| ABS Tone Ring Tooth Quantity | / |
| Spline Quantity | 25 |
| ABS System Type | / |
| Wheel Pilot Diameter (MM) | 67 |
| Bearing Type | / |
| Wheel Stud Quantity (EA) | 4 |
| Flange Bolt Hole Quantity | / |
| Wheel Studs Included | Yes |
Product Description
Embrace the foundation of automotive expertise with GSP's wheel bearings. Choose from our comprehensive range of ball, roller, and needle bearings, each engineered to excel in its specific applications.
Features & Benefits
- Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
- All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
- Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
- High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
- To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Applications
| Year Range | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2006-2006 | Mitsubishi | Lancer | ES | Front |
| 2005-2006 | Mitsubishi | Lancer | OZ Rally | Front |
| 2006-2006 | Mitsubishi | Lancer | SE | Front |
| 2004-2004 | Mitsubishi | Lancer | Sportback | Front |
| 2004-2004 | Mitsubishi | Lancer | Sportback Ralliart | Front |
| 2002-2002 | Mitsubishi | Lancer | - | Front |
| 2003-2004 | Mitsubishi | Lancer | ES | Front |
| 2003-2004 | Mitsubishi | Lancer | LS | Front |
| 2003-2004 | Mitsubishi | Lancer | OZ Rally | Front |
| 2007-2007 | Mitsubishi | Lancer | - | Front |
