Part Number: 4108017
Couldn't load pickup availability
Specifications
| Axle Nut Included | Yes |
|---|---|
| Axle Nut Length (IN) | 0.93 |
| Axle Nut Socket Size (MM) | 32 |
| Axle Nut Thread Size | M24X1.5-6H |
| Axle Nut Type | Castle Nut |
| Boot Material | TPE |
| California Proposition 65 | Yes |

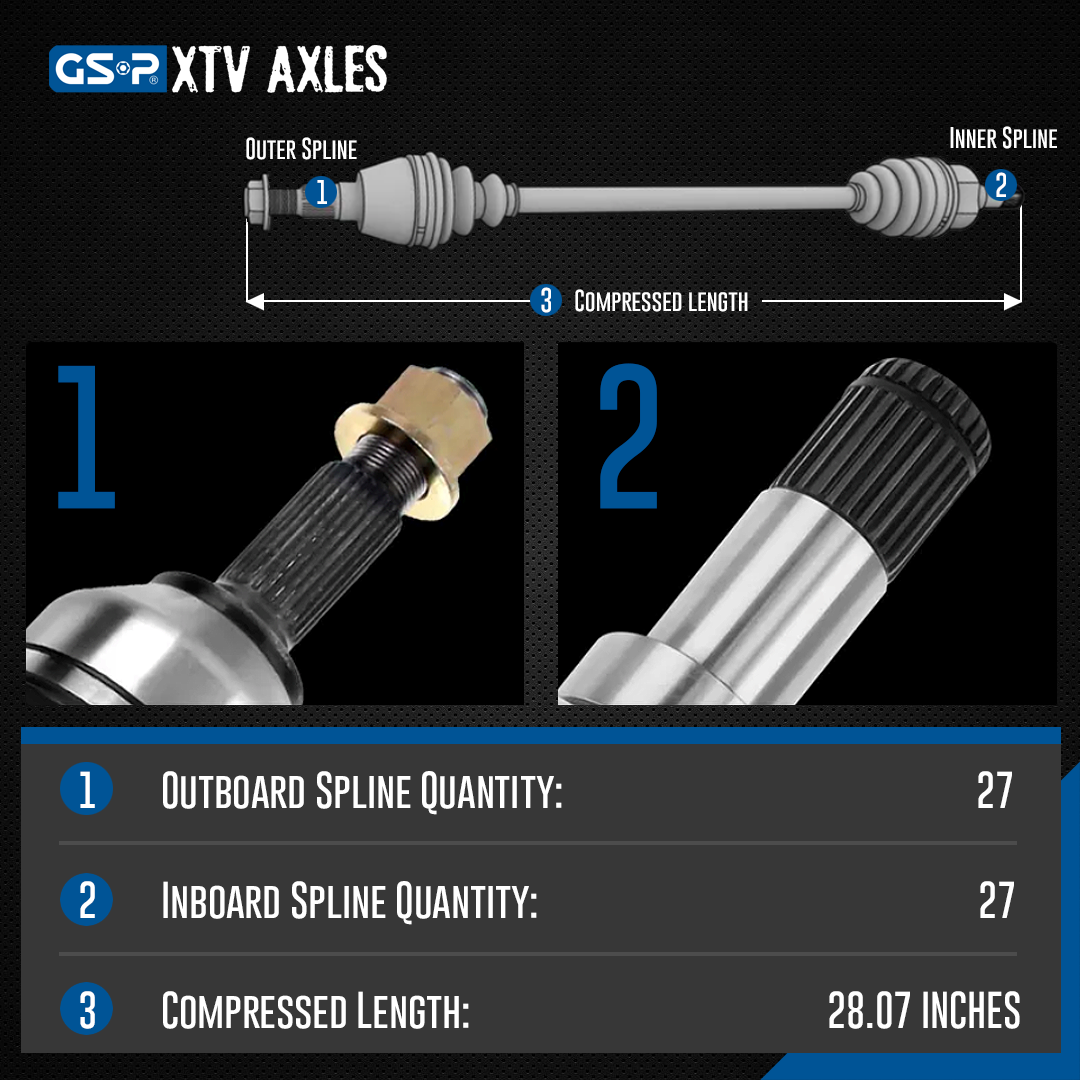

| Compressed Length (IN) | 28.07 |
| Dynamic Damper Attached | No |
| Extended Length (IN) | 29.96 |
| Inboard Joint Type | DOJ |
| Inboard Spline Quantity | - |
| Outboard Spline Quantity | 27 |
| Placement | Rear Left |
| Prop 65 Applicable | Yes |
| Shaft Diameter (MM) | 24.5 |
| Shaft Material | 40Cr(XC) |
Product Description
GSP's OE+ line is designed to provide you with an affordable yet high-quality OEM replacement axle that will exceed your expectations. With GSPXTV OE+ CV Axles, you can trust that you're getting a top-notch product that matches the quality of an original equipment (OE) replacement. We understand the importance of having a reliable and durable axle for your vehicle, which is why our OE+ line is built to last. Not only do our OE+ CV Axles offer exceptional quality, but they also provide outstanding value. We believe that everyone should have access to reliable and affordable replacement parts, without sacrificing on performance.
Features & Benefits
- Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
- All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
- Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
- High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
- To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Applications
| Year Range | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2016-2017 | Yamaha | YXM700 Viking FI 4x4 EPS SE | - | Rear Left |
| 2016-2017 | Yamaha | YXM700 Viking FI 4x4 EPS SE | - | Rear Right |
| 2015-2016 | Yamaha | YXM700 Viking VI EPS SE | - | Rear Left |
| 2015-2016 | Yamaha | YXM700 Viking VI EPS SE | - | Rear Right |
| 2015-2018 | Yamaha | YXM700 Viking VI EPS | - | Rear Left |
| 2015-2018 | Yamaha | YXM700 Viking VI EPS | - | Rear Right |
| 2015-2017 | Yamaha | YXM700 Viking VI | - | Rear Left |
| 2015-2017 | Yamaha | YXM700 Viking VI | - | Rear Right |
| 2016-2018 | Yamaha | YXE70 Wolverine | - | Rear Left |
| 2016-2018 | Yamaha | YXE70 Wolverine | - | Rear Right |
| 2016-2016 | Yamaha | YXM700 Viking VI EPS Ranch Edition | - | Rear Left |
| 2018-2018 | Yamaha | YXM700 Viking VI EPS Ranch Edition | - | Rear Left |
| 2016-2016 | Yamaha | YXM700 Viking VI EPS Ranch Edition | - | Rear Right |
| 2018-2018 | Yamaha | YXM700 Viking VI EPS Ranch Edition | - | Rear Right |
| 2020-2020 | Yamaha | YXM700 Viking EPS Ranch Edition | - | Rear Left |
| 2020-2020 | Yamaha | YXM700 Viking EPS Ranch Edition | - | Rear Right |
| 2020-2021 | Yamaha | YXC700 Viking VI EPS Ranch Edition | - | Rear Left |
| 2023-2023 | Yamaha | YXC700 Viking VI EPS Ranch Edition | - | Rear Left |
| 2020-2021 | Yamaha | YXC700 Viking VI EPS Ranch Edition | - | Rear Right |
| 2023-2023 | Yamaha | YXC700 Viking VI EPS Ranch Edition | - | Rear Right |
| 2020-2023 | Yamaha | YXC700 Viking VI EPS | - | Rear Left |
| 2020-2023 | Yamaha | YXC700 Viking VI EPS | - | Rear Right |
