GSP

Part Number: NCV48003

883331102861

Contact Dealer for Price

Specifications

ABS Tone Ring Included No
Axle Nut Included Yes
Axle Nut Length (MM) 24
Axle Nut Socket Size (MM) 36
Axle Nut Thread Size M24 - 1.5
Axle Nut Type Hex
Boot Material Neoprene
California Proposition 65 Yes

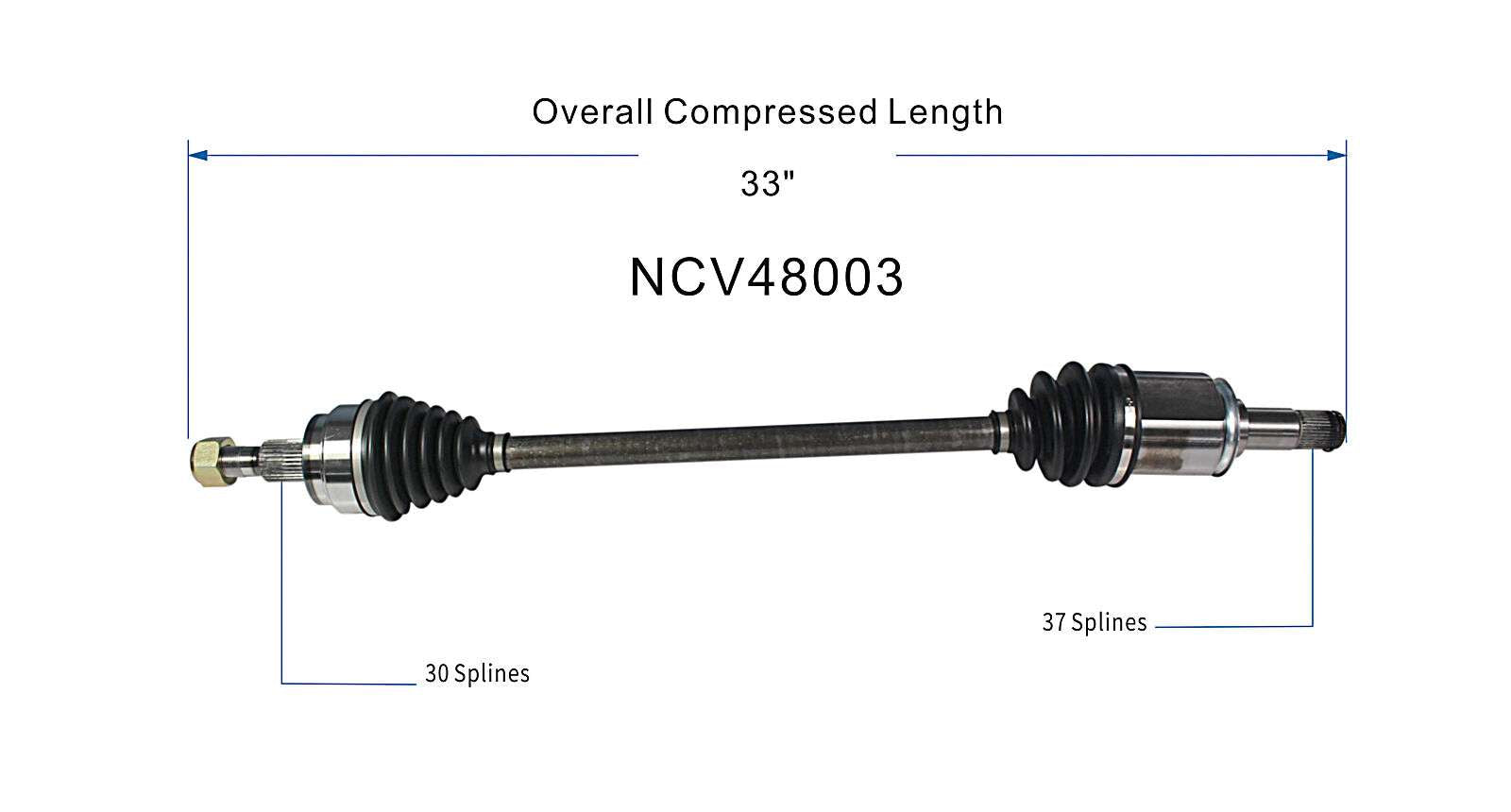

Compressed Length (MM) 837
Compressed Length (IN) 32.95
Extended Length (IN) 34.88
Inboard Joint Type Male
Inboard Spline Quantity 37
Outboard Joint Type Conventional
Outboard Spline Quantity 30
Placement Rear
Prop 65 Applicable Yes
Prop 65 Applicable Yes

Mercedes-Benz CV Axle Assembly - Rear

$107.95 USD

Product Description

Quality Driven CV Axles is what GSP is known for. Designed to deliver high quality performance and reliability, GSP CV Axles are manufactured to withstand the demands of daily driving conditions. With GSP CV Axles, you can expect all axle components to be heat treated to the highest standards to provide premium strength, and extend service life. Each GSP CV Axle undergoes rigorous testing to meet or exceed OE specifications ensuring proper fit and optimal performance for your vehicle. With high-quality materials, advanced manufacturing techniques, and precise engineering, GSP CV Axles are the perfect replacement component and brand of choice amongst automotive professionals.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2007-2012 Mercedes-Benz GL450 - Rear
2011-2011 Mercedes-Benz GL550 - Rear
2006-2006 Mercedes-Benz ML500 Base Rear
2007-2009 Mercedes-Benz GL320 - Rear
2009-2010 Mercedes-Benz ML350 Base Rear
2011-2011 Mercedes-Benz ML350 Bluetec 4Matic Rear
2012-2012 Mercedes-Benz GL550 Base Rear
2007-2007 Mercedes-Benz ML500 - Rear
2008-2010 Mercedes-Benz GL550 - Rear
2010-2010 Mercedes-Benz ML350 Bluetec 4Matic Rear
2011-2011 Mercedes-Benz ML550 - Rear
2008-2010 Mercedes-Benz ML550 - Rear
2010-2011 Mercedes-Benz ML450 - Rear
2011-2011 Mercedes-Benz ML350 Base Rear
2010-2012 Mercedes-Benz GL350 - Rear
2006-2010 Mercedes-Benz ML350 4Matic Rear
2011-2011 Mercedes-Benz ML350 4Matic Rear
2007-2009 Mercedes-Benz ML320 - Rear
