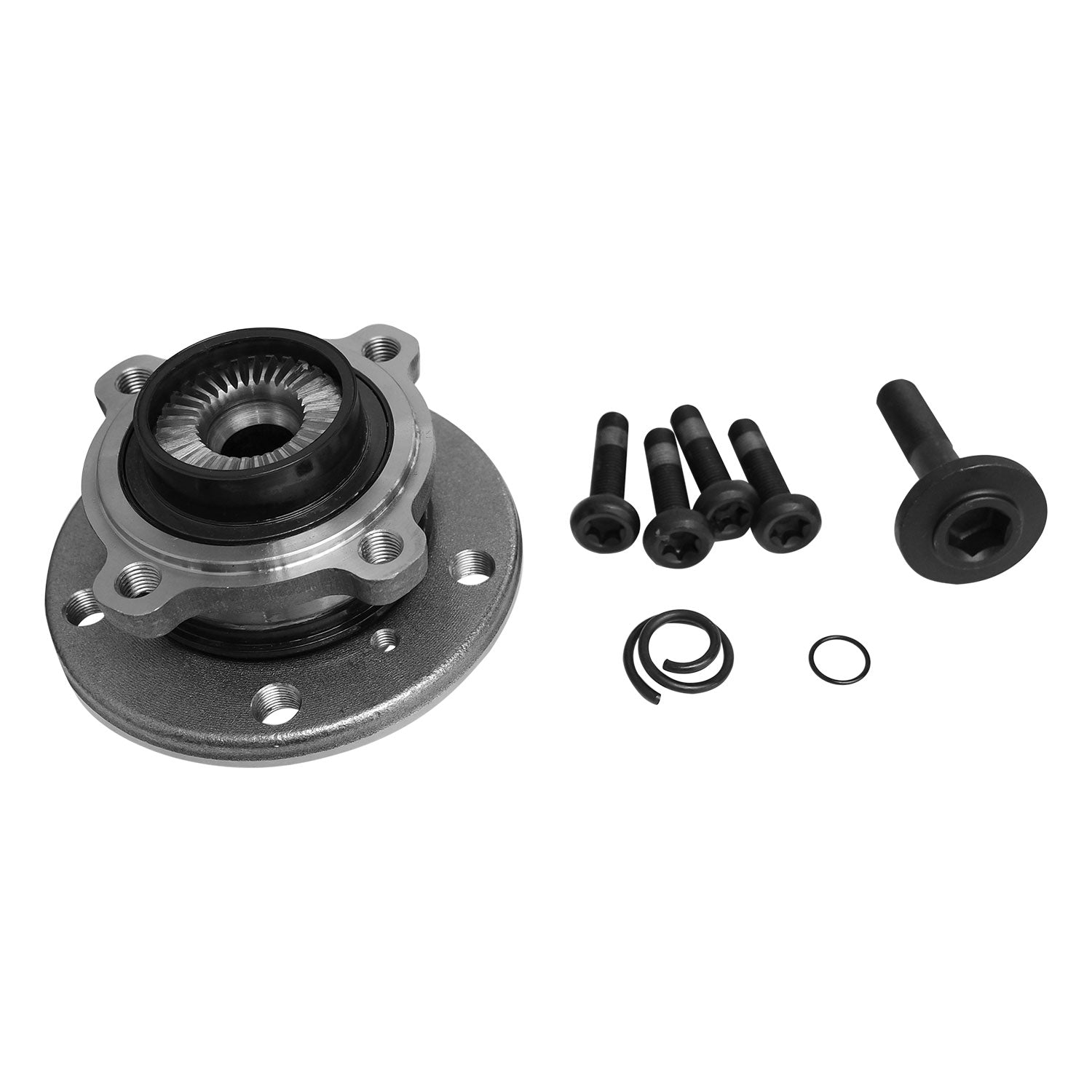

Part Number: 274417
Couldn't load pickup availability
Specifications
| ABS Tone Ring Tooth Quantity | 48 |
|---|---|
| Anti Lock Braking System | Yes |
| ABS System Type | Encoder |
| Bearing Generation | Gen 3(solid) |
| Bearing Type | Ball |
| Bolt Circle Diameter (MM) | 120 |
| Bolt Thread Pitch (MM) | M12×1.5 |
| Bolts Included | Yes |
| Brake Pilot Diameter (MM) | 79 |
| California Proposition 65 | Yes |
| Driven Type | Driven |
| Flange Bolt Hole Quantity | 4 |
| Flange Bolts Included | Yes |
| Flange Diameter (MM) | 147 |
| Flange Included | Yes |
| Flange Offset (MM) | 51 |
| Hub Pilot Diameter (MM) | 90 |
| Placement | Front |
| Prop 65 Applicable | Yes |
| Spline Quantity | 31 |
| Wheel Pilot Diameter (MM) | 72.5 |
| Wheel Stud Quantity (EA) | 5 |
| Wheel Studs Included | No |
Product Description
Embrace the foundation of automotive expertise with GSP's wheel bearings. Choose from our comprehensive range of ball, roller, and needle bearings, each engineered to excel in its specific applications.
Features & Benefits
- Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
- All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
- Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
- High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
- To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Applications
| Year Range | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2013-2013 | BMW | 320i xDrive | - | Front |
| 2014-2014 | BMW | 320i xDrive | - | Front |
| 2014-2014 | BMW | 328d xDrive | - | Front |
| 2014-2014 | BMW | 328i GT xDrive | - | Front |
| 2014-2014 | BMW | 328i xDrive | - | Front |
| 2013-2013 | BMW | 328i xDrive | - | Front |
| 2014-2014 | BMW | 335i GT xDrive | - | Front |
| 2014-2014 | BMW | 335i xDrive | - | Front |
| 2013-2013 | BMW | 335i xDrive | - | Front |
| 2014-2014 | BMW | 428i xDrive | - | Front |
| 2014-2014 | BMW | 435i xDrive | - | Front |
