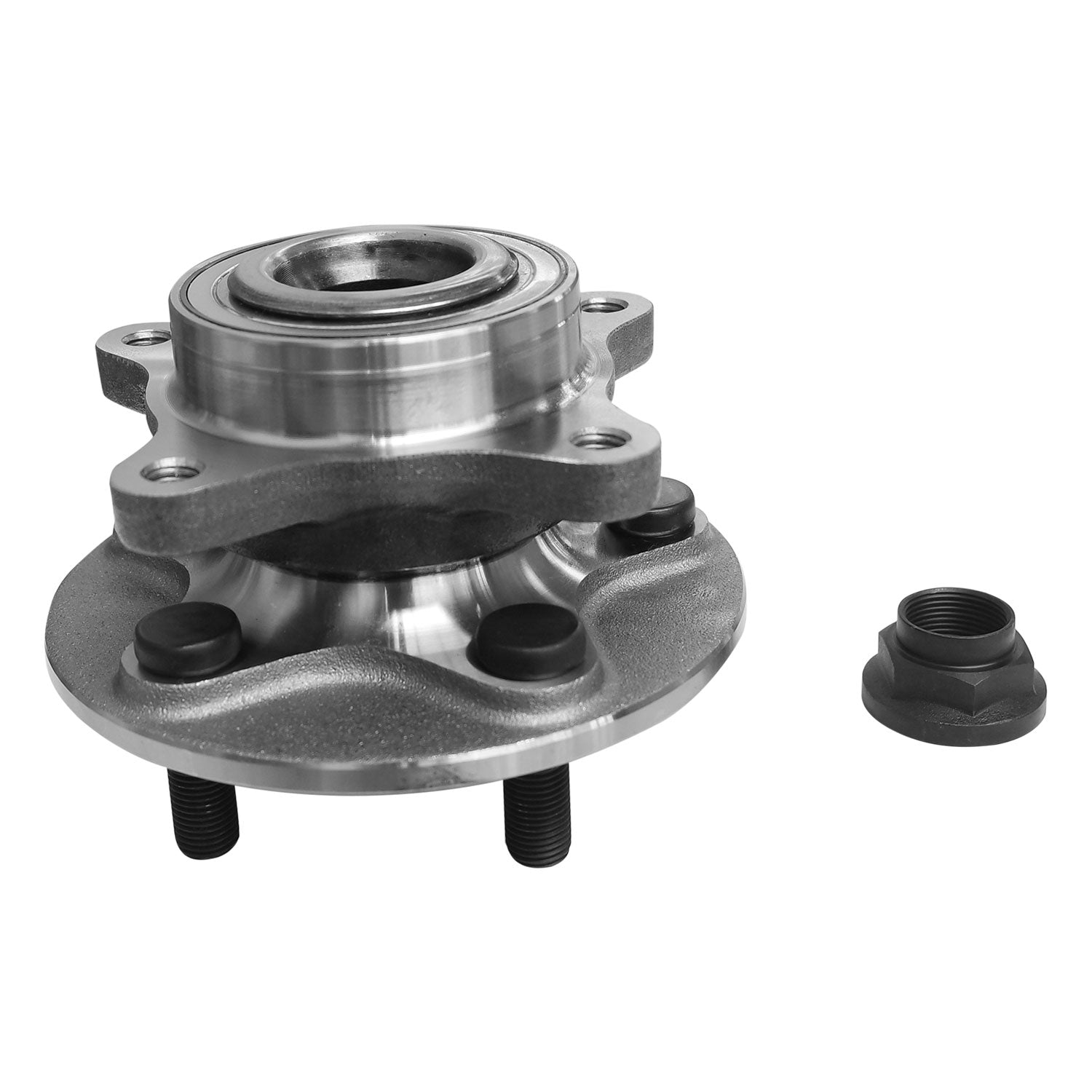

Part Number: 116067
Couldn't load pickup availability
Specifications
| ABS Tone Ring Tooth Quantity | / |
|---|---|
| Anti Lock Braking System | No |
| Anti Lock Braking System | No |
| Bearing Generation | Gen 3 |
| ABS System Type | / |
| Bearing Type | Taper |
| Bearing Generation | Gen 3 |
| Bolt Circle Diameter (MM) | 120 |
| Bearing Type | Taper |
| Bolt Thread Pitch (MM) | M12×1.75 |
| Bolt Circle Diameter (MM) | 120 |
| Bolts Included | No |
| Bolt Thread Pitch (MM) | M12×1.75 |
| Brake Pilot Diameter (MM) | 79 |
| Bolts Included | No |
| California Proposition 65 | Yes |
| Brake Pilot Diameter (MM) | 79 |
| Driven Type | Driven |
| California Proposition 65 | Yes |
| Flange Bolt Hole Quantity | 4 |
| Driven Type | Driven |
| Flange Bolts Included | No |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter (MM) | 158.5 |
| Flange Bolts Included | No |
| Flange Included | Yes |
| Flange Diameter (MM) | 158.5 |
| Flange Offset (MM) | 57.9 |
| Flange Included | Yes |
| Hub Pilot Diameter (MM) | 89 |
| Flange Offset (MM) | 57.9 |
| Placement | Front |
| Hub Pilot Diameter (MM) | 89 |
| Placement | Front |
| Prop 65 Applicable | Yes |
| Spline Quantity | 29 |
| Prop 65 Applicable | Yes |
| Wheel Pilot Diameter (MM) | 72.5 |
| Spline Quantity | 29 |
| Wheel Stud Quantity (EA) | 5 |
| Wheel Pilot Diameter (MM) | 72.5 |
| Wheel Studs Included | Yes |
| ABS Tone Ring Tooth Quantity | / |
| Wheel Stud Quantity (EA) | 5 |
| ABS System Type | / |
| Wheel Studs Included | Yes |
Product Description
Embrace the foundation of automotive expertise with GSP's wheel bearings. Choose from our comprehensive range of ball, roller, and needle bearings, each engineered to excel in its specific applications.
Features & Benefits
- Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
- All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
- Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
- High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
- To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Applications
| Year Range | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2005-2009 | Land Rover | LR3 | - | Front |
| 2010-2016 | Land Rover | LR4 | - | Front |
| 2006-2013 | Land Rover | Range Rover Sport | - | Front |
