GSP

Part Number: NCV11110XDP

883331216643

Contact Dealer for Price

Specifications

ABS Tone Ring Included No
Axle Nut Included Yes
Axle Nut Length (MM) 20.5
Axle Nut Socket Size (MM) 31.5
Axle Nut Thread Size M22 - 1.5
Axle Nut Type Hex
Boot Material Thermoplastic
California Proposition 65 Yes
Compressed Length (IN) 20.75
Compressed Length (MM) 527
Extended Length (IN) 23.12
Inboard Joint Type Male
Inboard Spline Quantity 27
Outboard Joint Type Conventional
Outboard Spline Quantity 27
Placement Front Right
Prop 65 Applicable Yes
Prop 65 Applicable Yes

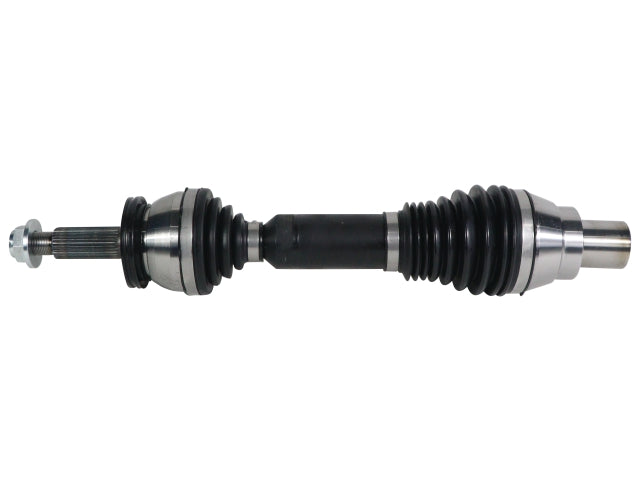

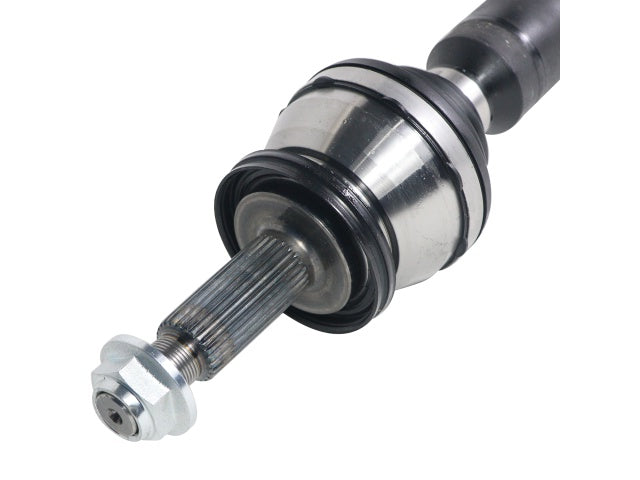

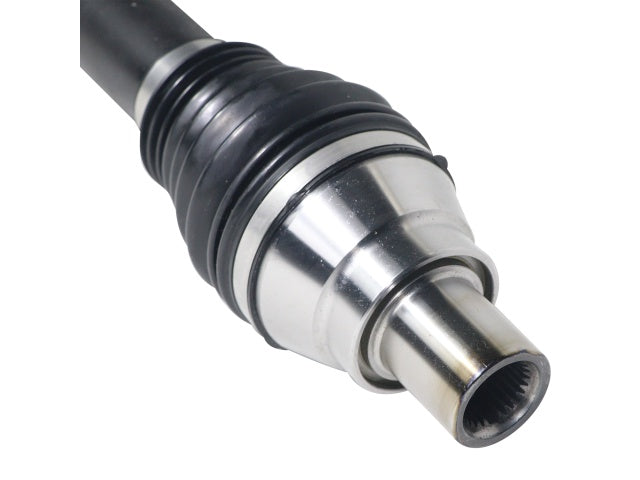

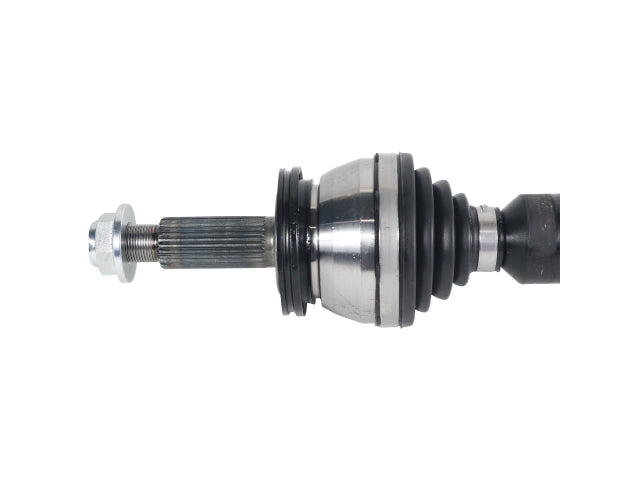

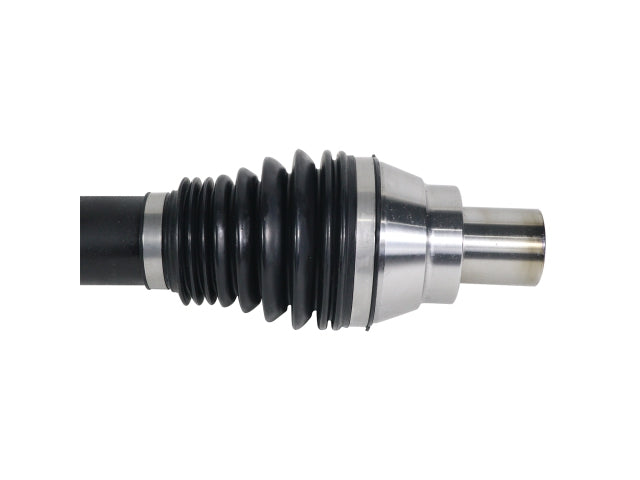

Ford, Mazda, Mercury (4WD/AWD) CV Axle Assembly - Front Right

$182.95 USD

Product Description

Unlock a new level of performance and capability for your lifted vehicle's suspension with GSP Extreme Duty Plus (XDP) Axles designed for extended travel. Elevate your vehicle's suspension with confidence, knowing that GSP XDP axles are manufactured for extreme operating angles. Equipped with a revolutionary rolling guide spline bearing driven center bar, GSP XDP axles provide an unparalleled advantage over OE designed options. Experience increased travel capabilities that allow your lifted vehicle to navigate through challenging terrains. Thanks to the innovative high-speed 8 ball joint featured on both the wheel and gearbox sides of the GSP XDP axle, you can expect a higher articulation angle of up to 47 degrees. This exceptional capability allows for maximum performance across all travel ranges and significantly improves torque capability. Say good-bye to corrosion, GSP Extreme Duty Plus (XDP) Axles are finished with a durable protective coating that prevents corrosion to ensure a longer service life. Trust in the reliability, durability, and travel capability that sets GSP Extreme Duty Plus Axles apart from the rest.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2001-2001 Ford Explorer Sport - Front Right
2001-2002 Ford Explorer Sport Trac - Front Right
1995-2001 Ford Explorer - Front Right
2000-2002 Ford Ranger - Front Right
1997-2001 Mercury Mountaineer - Front Right
1997-2001 Mercury Mountaineer - Front Right
2001-2002 Mazda B2300 - Front Right
2000-2000 Mazda B3000 SE Front Right
2001-2002 Mazda B3000 - Front Right
2000-2000 Mazda B4000 - Front Right
2001-2005 Mazda B4000 - Front Right

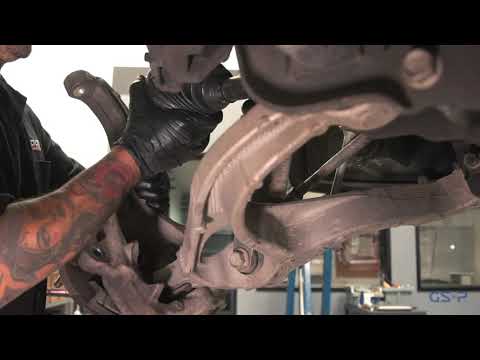

See It In Action
