GSP

Part Number: NCV10187XDP

883331262435

Contact Dealer for Price

Specifications

ABS Tone Ring Included No
Axle Nut Included Yes
Axle Nut Length (MM) 26
Axle Nut Socket Size (MM) 36
Axle Nut Thread Size M24 - 2.0
Axle Nut Type Hex
Boot Material Thermoplastic
California Proposition 65 Yes
Compressed Length (IN) 24.72
Compressed Length (MM) 628
Extended Length (IN) 27.12
Inboard Joint Type Male
Inboard Spline Quantity 28
Outboard Joint Type Conventional
Outboard Spline Quantity 33
Placement Front
Prop 65 Applicable Yes
Prop 65 Applicable Yes

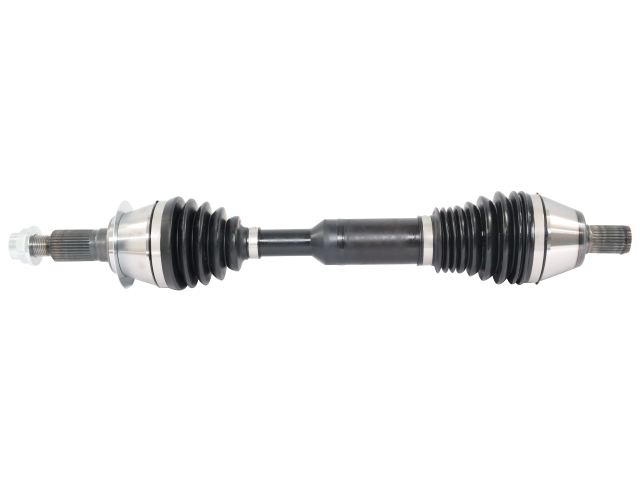

Cadillac, Chevrolet, GMC CV Axle Assembly - Front

$229.95 USD

Product Description

Unlock a new level of performance and capability for your lifted vehicle's suspension with GSP Extreme Duty Plus (XDP) Axles designed for extended travel. Elevate your vehicle's suspension with confidence, knowing that GSP XDP axles are manufactured for extreme operating angles. Equipped with a revolutionary rolling guide spline bearing driven center bar, GSP XDP axles provide an unparalleled advantage over OE designed options. Experience increased travel capabilities that allow your lifted vehicle to navigate through challenging terrains. Thanks to the innovative high-speed 8 ball joint featured on both the wheel and gearbox sides of the GSP XDP axle, you can expect a higher articulation angle of up to 47 degrees. This exceptional capability allows for maximum performance across all travel ranges and significantly improves torque capability. Say good-bye to corrosion, GSP Extreme Duty Plus (XDP) Axles are finished with a durable protective coating that prevents corrosion to ensure a longer service life. Trust in the reliability, durability, and travel capability that sets GSP Extreme Duty Plus Axles apart from the rest.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2021-2023 Cadillac Escalade ESV Premium Luxury Front
2021-2023 Cadillac Escalade ESV Sport Front
2021-2023 Cadillac Escalade ESV Sport Platinum Front
2021-2023 Cadillac Escalade ESV Luxury Front
2021-2023 Cadillac Escalade ESV Premium Luxury Platinum Front
2021-2023 Cadillac Escalade Sport Front
2021-2023 Cadillac Escalade Premium Luxury Platinum Front
2021-2023 Cadillac Escalade Sport Platinum Front
2021-2023 Cadillac Escalade Luxury Front
2021-2023 Cadillac Escalade Premium Luxury Front
2021-2023 Chevrolet Suburban - Front
2022-2022 Chevrolet Silverado 1500 LTD WT Front
2022-2022 Chevrolet Silverado 1500 LTD LTZ Front
2022-2022 Chevrolet Silverado 1500 LTD SSV Front
2022-2022 Chevrolet Silverado 1500 LTD RST Front
2022-2022 Chevrolet Silverado 1500 LTD Custom Front
2022-2022 Chevrolet Silverado 1500 LTD High Country Front
2022-2022 Chevrolet Silverado 1500 LTD LT Front
2022-2022 Chevrolet Silverado 1500 LTD Custom Trail Boss Front
2022-2022 Chevrolet Silverado 1500 LTD LT Trail Boss Front
2019-2023 Chevrolet Silverado 1500 LTZ Front
2019-2023 Chevrolet Silverado 1500 RST Front
2019-2023 Chevrolet Silverado 1500 Custom Front
2019-2023 Chevrolet Silverado 1500 LT Front
2019-2023 Chevrolet Silverado 1500 High Country Front
2019-2023 Chevrolet Silverado 1500 WT Front
2019-2023 Chevrolet Silverado 1500 LT Trail Boss Front
2019-2023 Chevrolet Silverado 1500 Custom Trail Boss Front
2019-2021 Chevrolet Silverado 1500 SSV Front
2023-2023 Chevrolet Silverado 1500 PPV Front
2021-2023 Chevrolet Tahoe - Front
2021-2023 GMC Yukon XL - Front
2022-2022 GMC Sierra 1500 Limited - Front
2019-2023 GMC Sierra 1500 - Front
2021-2023 GMC Yukon - Front
