Part Number: NCV10183XDP

883331262473

Contact Dealer for Price

Specifications

ABS Tone Ring Included No
Axle Nut Included Yes
Axle Nut Length (MM) 21.5
Axle Nut Socket Size (MM) 36
Axle Nut Thread Size M24 - 2.0
Axle Nut Type Hex
Boot Material Thermoplastic
California Proposition 65 Yes
Compressed Length (MM) 597
Compressed Length (IN) 23.5
Extended Length (IN) 25.87
Inboard Joint Type Male
Inboard Spline Quantity 28
Outboard Joint Type Conventional
Outboard Spline Quantity 33
Placement Front
Prop 65 Applicable Yes
Prop 65 Applicable Yes

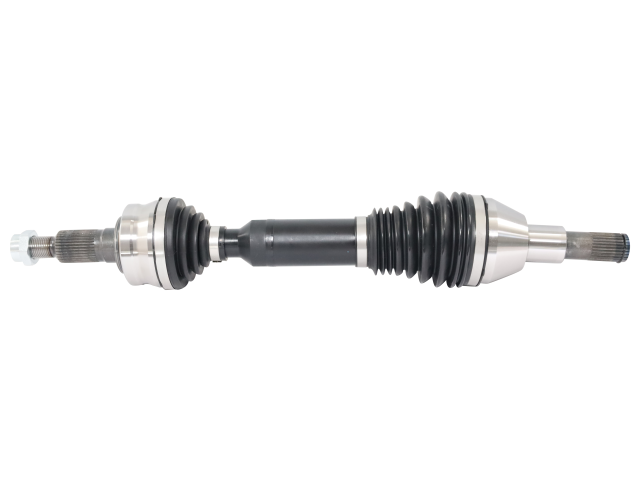

Chevrolet, GMC CV Axle Assembly - Front

$269.95 USD

Product Description

Unlock a new level of performance and capability for your lifted vehicle's suspension with GSP Extreme Duty Plus (XDP) Axles designed for extended travel. Elevate your vehicle's suspension with confidence, knowing that GSP XDP axles are manufactured for extreme operating angles. Equipped with a revolutionary rolling guide spline bearing driven center bar, GSP XDP axles provide an unparalleled advantage over OE designed options. Experience increased travel capabilities that allow your lifted vehicle to navigate through challenging terrains. Thanks to the innovative high-speed 8 ball joint featured on both the wheel and gearbox sides of the GSP XDP axle, you can expect a higher articulation angle of up to 47 degrees. This exceptional capability allows for maximum performance across all travel ranges and significantly improves torque capability. Say good-bye to corrosion, GSP Extreme Duty Plus (XDP) Axles are finished with a durable protective coating that prevents corrosion to ensure a longer service life. Trust in the reliability, durability, and travel capability that sets GSP Extreme Duty Plus Axles apart from the rest.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2015-2022 Chevrolet Colorado LT Front
2015-2022 Chevrolet Colorado WT Front
2015-2022 Chevrolet Colorado Z71 Front
2015-2022 GMC Canyon AT4 Front
2015-2020 GMC Canyon Base Front
2015-2020 GMC Canyon SL Front
2015-2020 GMC Canyon SLE Front
2015-2020 GMC Canyon SLT Front
2017-2022 GMC Canyon Denali Front
2018-2020 GMC Canyon All Terrain Front
2021-2022 GMC Canyon Elevation Front
2021-2022 GMC Canyon Elevation Standard Front

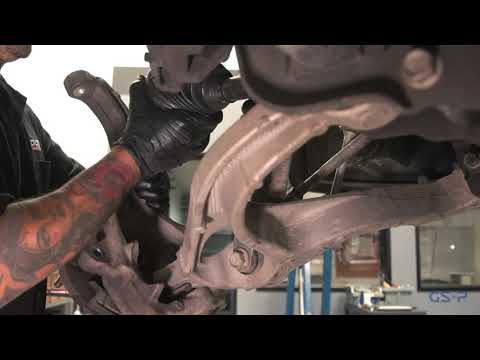

See It In Action
