GSP

Part Number: NCV10142XDP

883331172529

Contact Dealer for Price

Specifications

ABS Tone Ring Included No
Axle Nut Included Yes
Axle Nut Length (MM) 24
Axle Nut Socket Size (MM) 36
Axle Nut Thread Size M24 - 1.5
Axle Nut Type Hex
Boot Material Thermoplastic
California Proposition 65 Yes
Compressed Length (MM) 529
Compressed Length (IN) 20.83
Extended Length (IN) 23.50

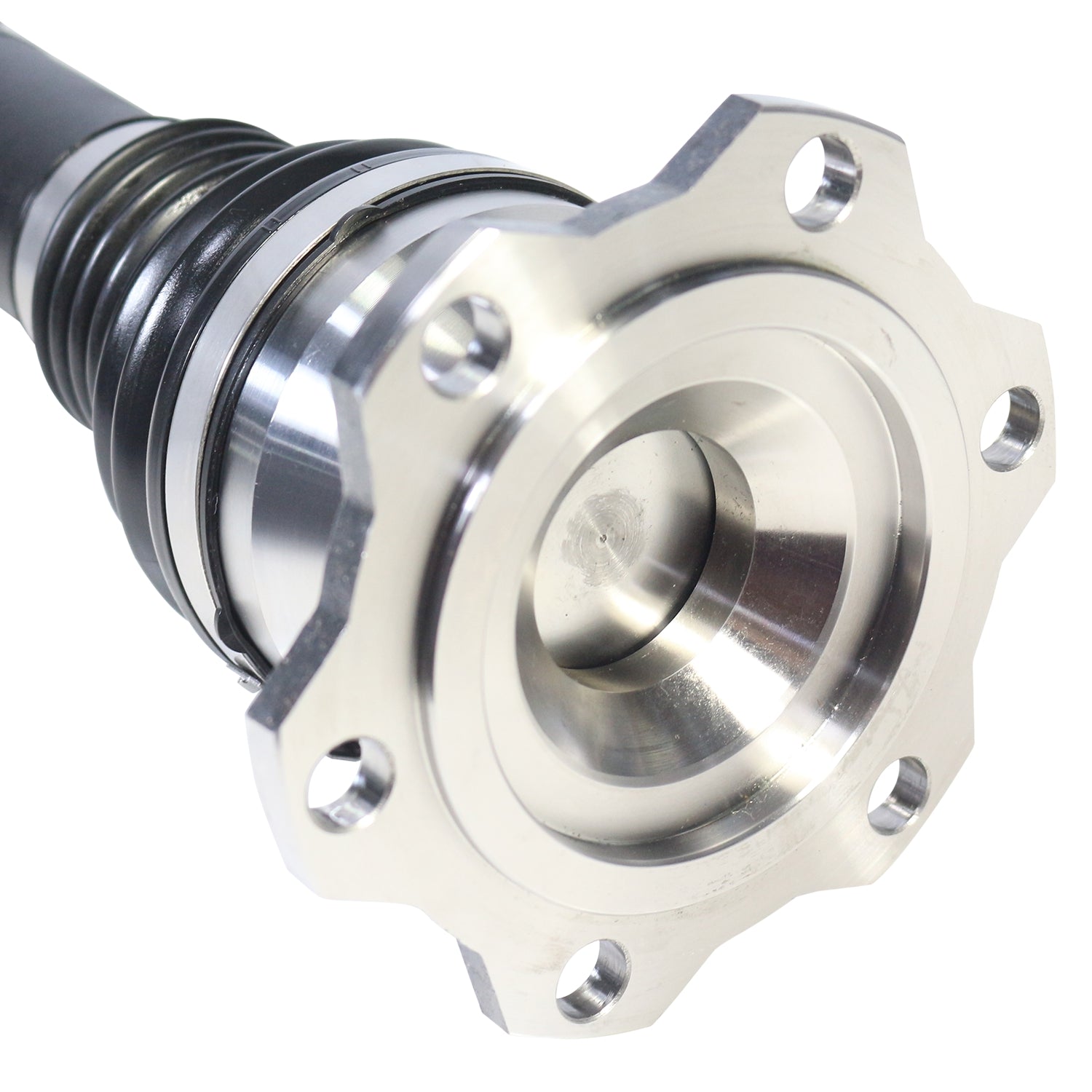

Inboard Joint Type Flange
Outboard Joint Type Conventional
Outboard Spline Quantity 33
Placement Front
Prop 65 Applicable Yes
Prop 65 Applicable Yes

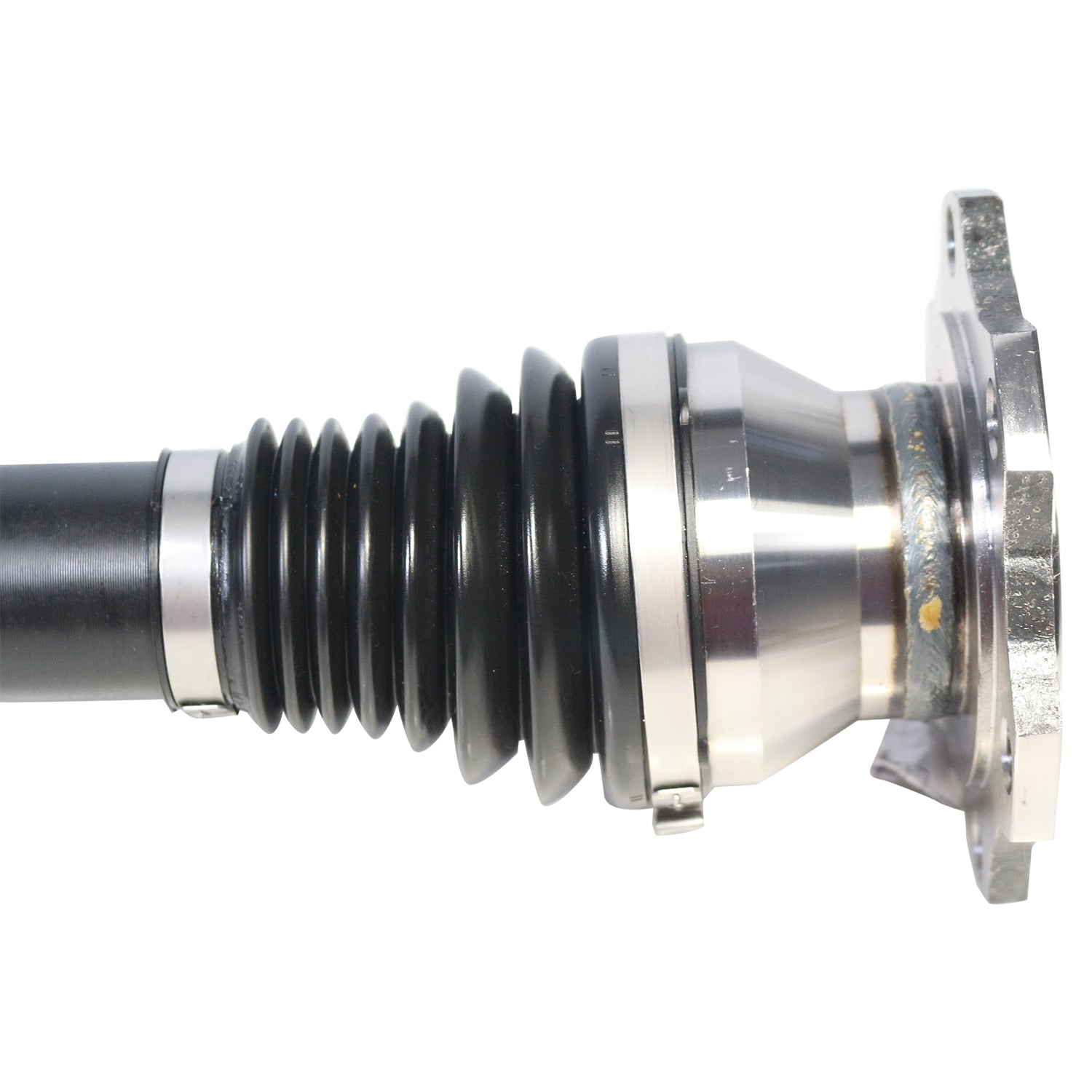

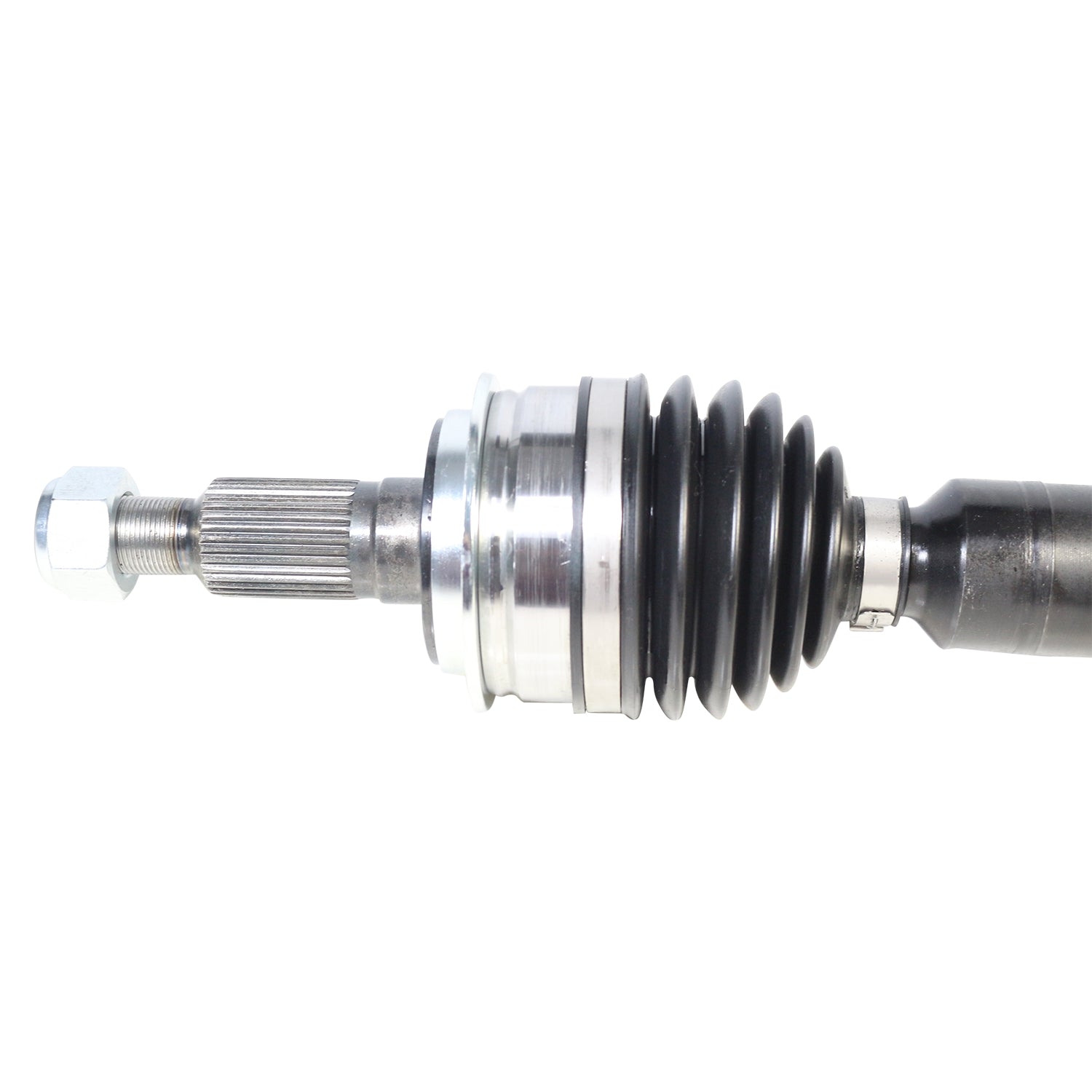

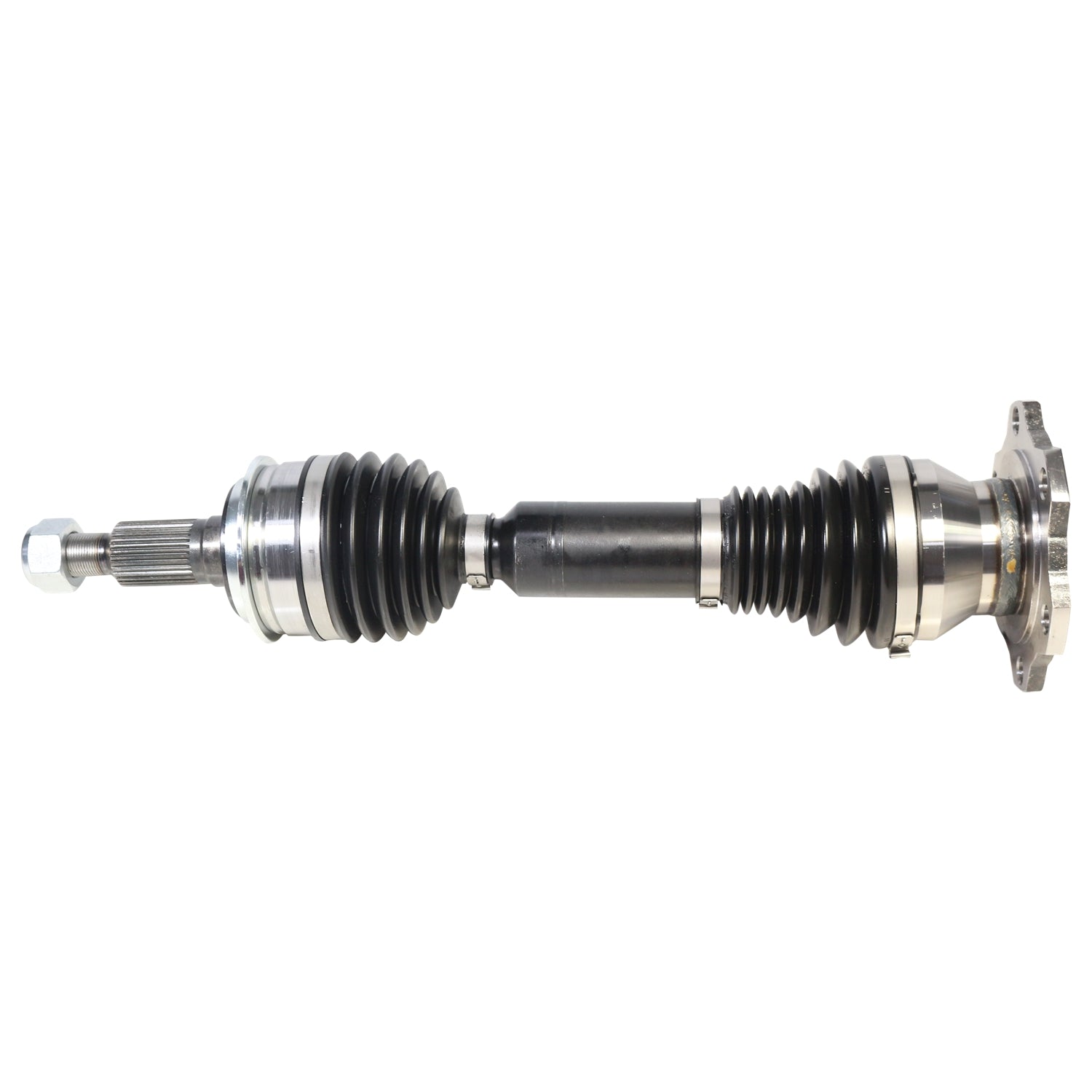

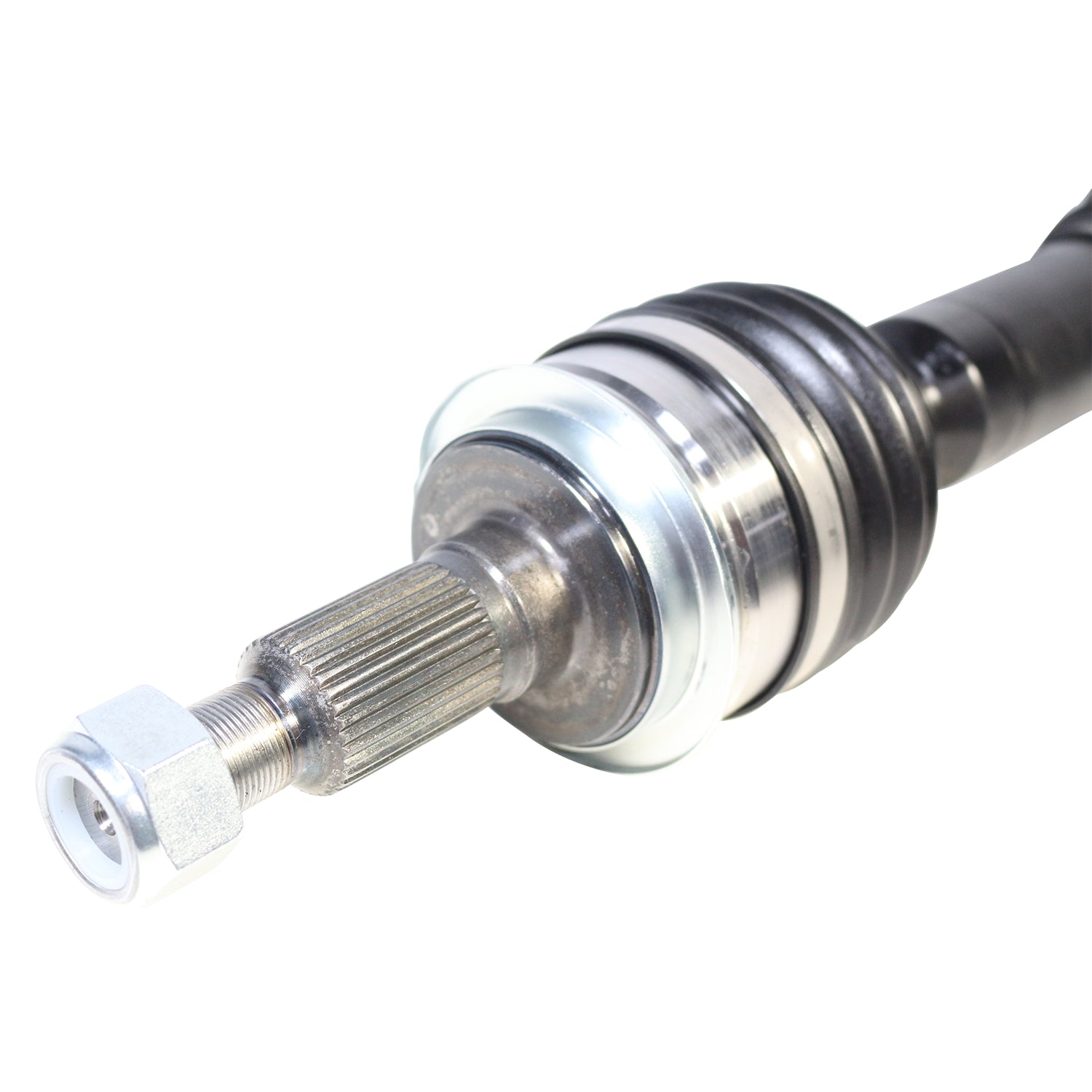

Cadillac, Chevrolet, GMC (4WD) CV Axle Assembly - Front

$251.95 USD

Product Description

Unlock a new level of performance and capability for your lifted vehicle's suspension with GSP Extreme Duty Plus (XDP) Axles designed for extended travel. Elevate your vehicle's suspension with confidence, knowing that GSP XDP axles are manufactured for extreme operating angles. Equipped with a revolutionary rolling guide spline bearing driven center bar, GSP XDP axles provide an unparalleled advantage over OE designed options. Experience increased travel capabilities that allow your lifted vehicle to navigate through challenging terrains. Thanks to the innovative high-speed 8 ball joint featured on both the wheel and gearbox sides of the GSP XDP axle, you can expect a higher articulation angle of up to 47 degrees. This exceptional capability allows for maximum performance across all travel ranges and significantly improves torque capability. Say good-bye to corrosion, GSP Extreme Duty Plus (XDP) Axles are finished with a durable protective coating that prevents corrosion to ensure a longer service life. Trust in the reliability, durability, and travel capability that sets GSP Extreme Duty Plus Axles apart from the rest.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2003-2006 Cadillac Escalade ESV - Front
2002-2006 Cadillac Escalade EXT - Front
1999-2000 Cadillac Escalade - Front
2002-2006 Cadillac Escalade - Front
2007-2007 Chevrolet Silverado 1500 Classic - Front
2002-2006 Chevrolet Avalanche 1500 - Front
1988-1999 Chevrolet K1500 - Front
1995-1999 Chevrolet K1500 Suburban - Front
1992-1998 Chevrolet K2500 - Front
1999-2006 Chevrolet Silverado 1500 - Front
1998-2006 Chevrolet Suburban 1500 - Front
1995-1999 Chevrolet Tahoe - Front
2000-2006 Chevrolet Tahoe - Front
2007-2007 GMC Sierra 1500 Classic - Front
1988-1999 GMC K1500 - Front
1995-1999 GMC K1500 Suburban - Front
1992-1998 GMC K2500 - Front
1999-2006 GMC Sierra 1500 - Front
1995-1997 GMC Yukon - Front
1998-2006 GMC Yukon - Front
2000-2006 GMC Yukon XL 1500 - Front

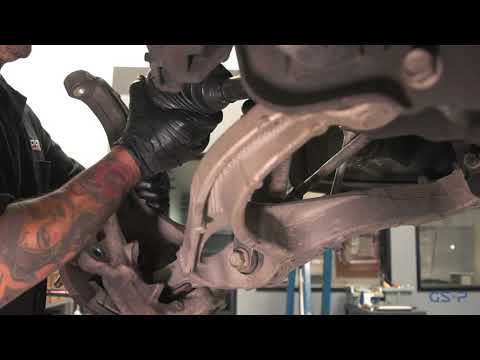

See It In Action
