GSP

Part Number: NCV10040XDP

883331167563

Contact Dealer for Price

Specifications

ABS Tone Ring Included No
Axle Nut Included Yes
Axle Nut Length (MM) 25
Axle Nut Socket Size (MM) 36
Axle Nut Thread Size M24 - 2.0
Axle Nut Type Hex
Boot Material Thermoplastic
California Proposition 65 Yes
Compressed Length (IN) 24.29
Compressed Length (MM) 617
Extended Length (IN) 26.96
Inboard Joint Type Female
Inboard Spline Quantity 29
Outboard Joint Type Conventional
Outboard Spline Quantity 33
Placement Front
Prop 65 Applicable Yes
Prop 65 Applicable Yes

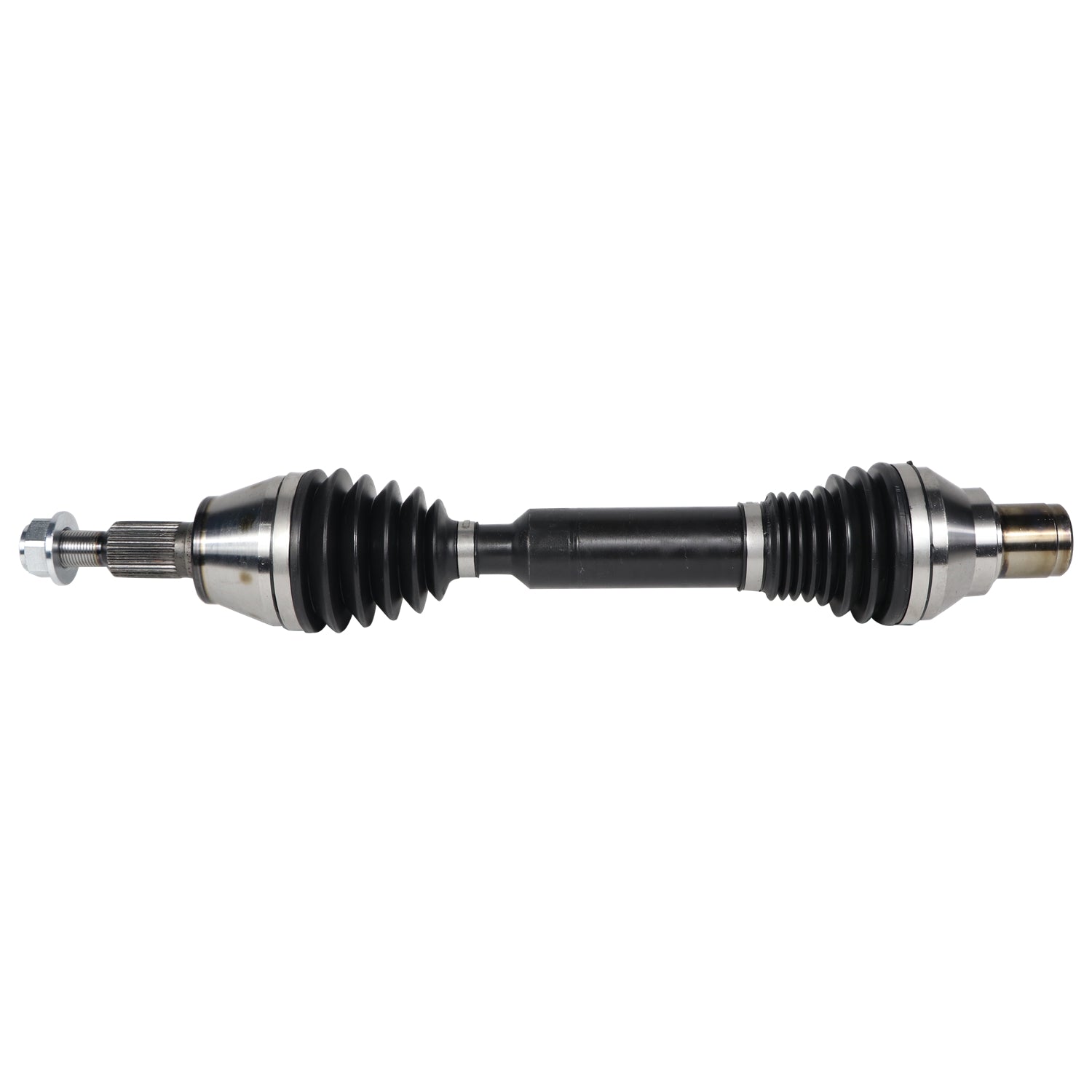

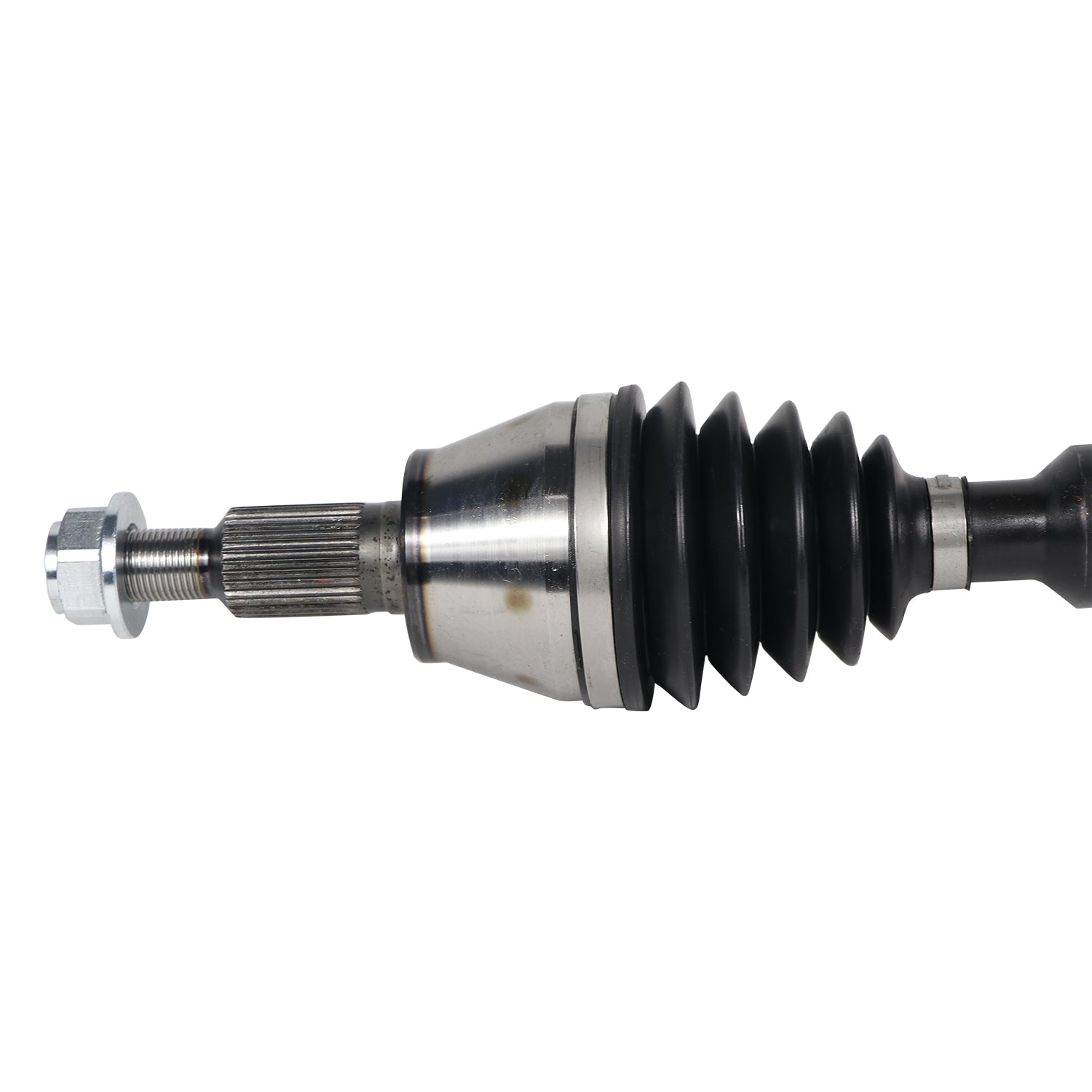

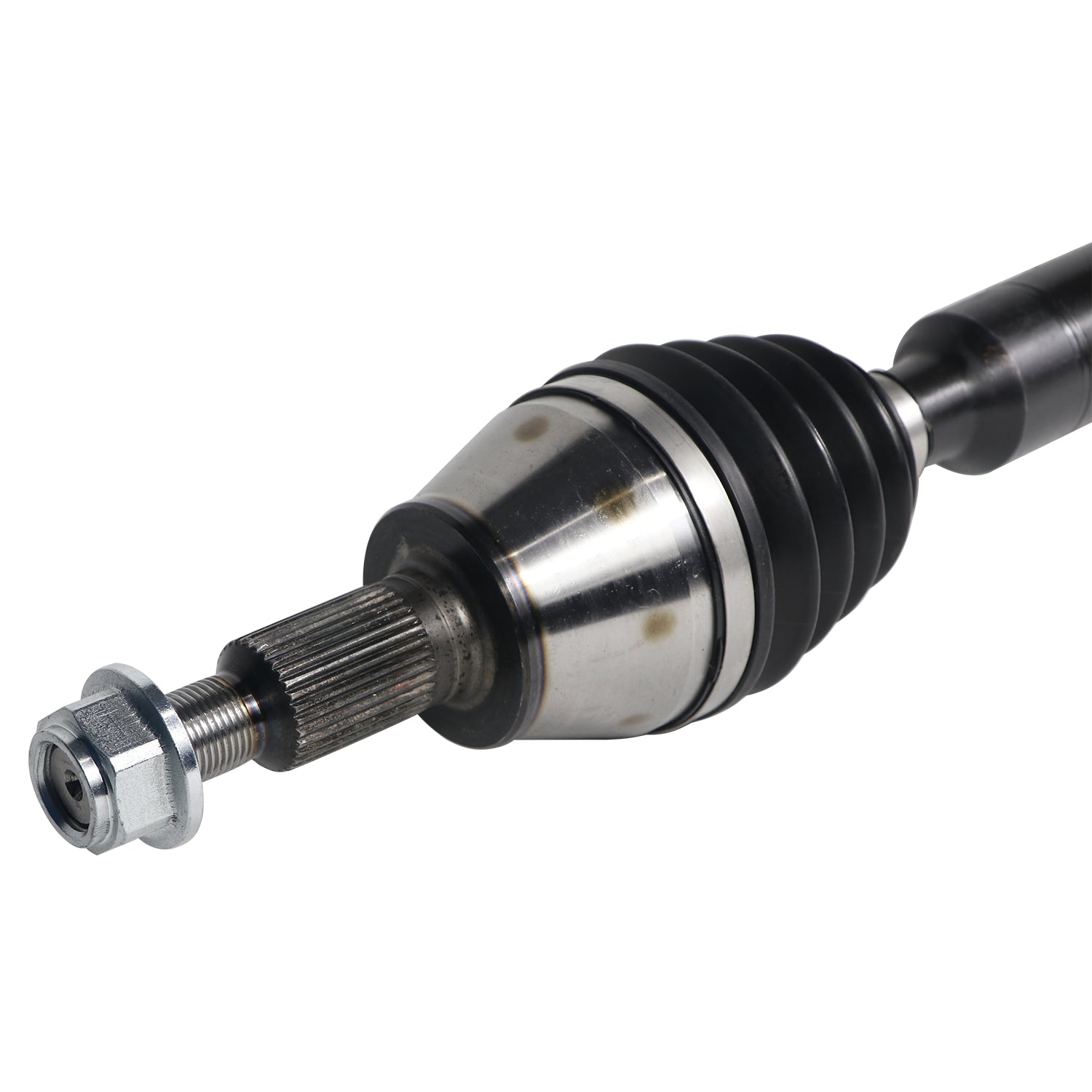

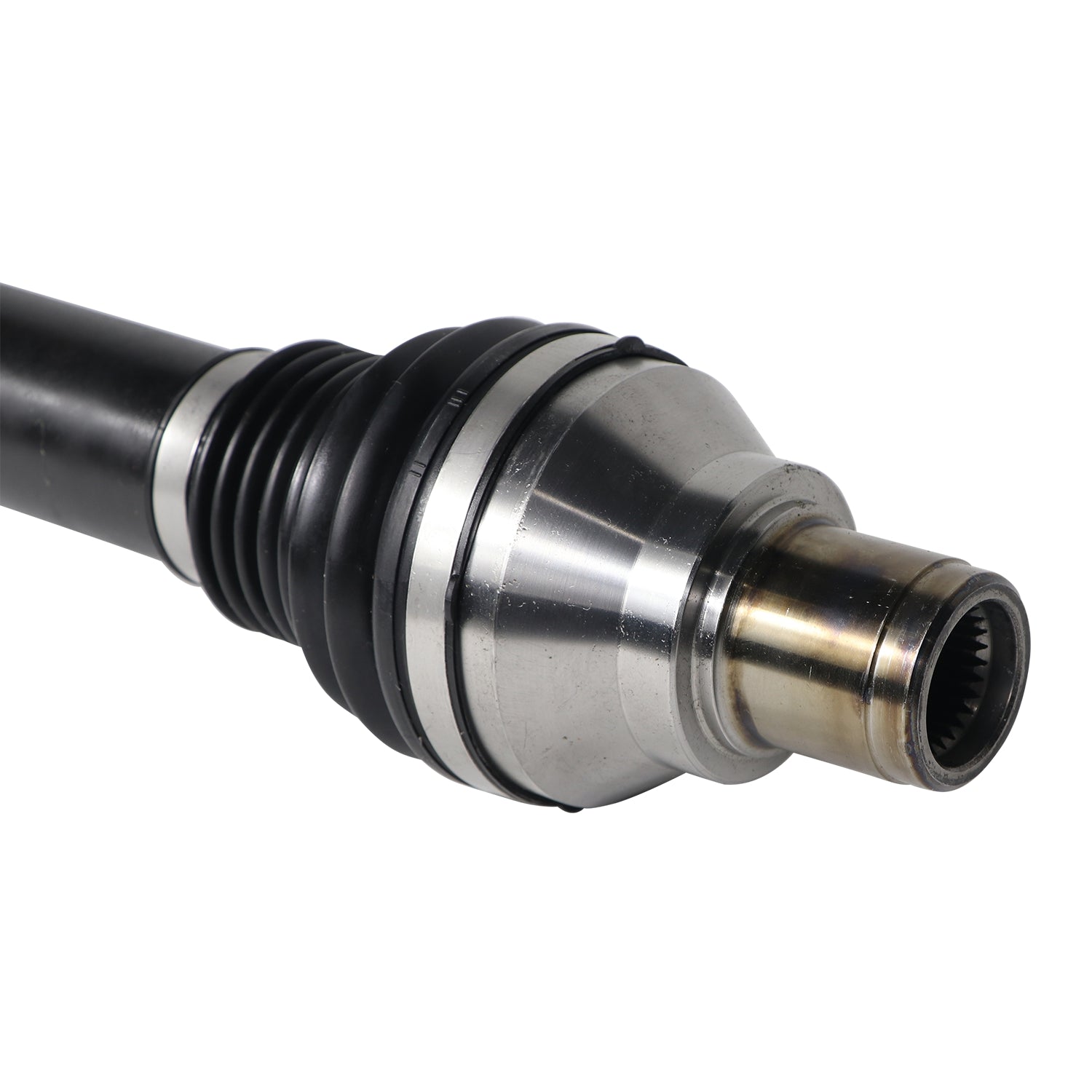

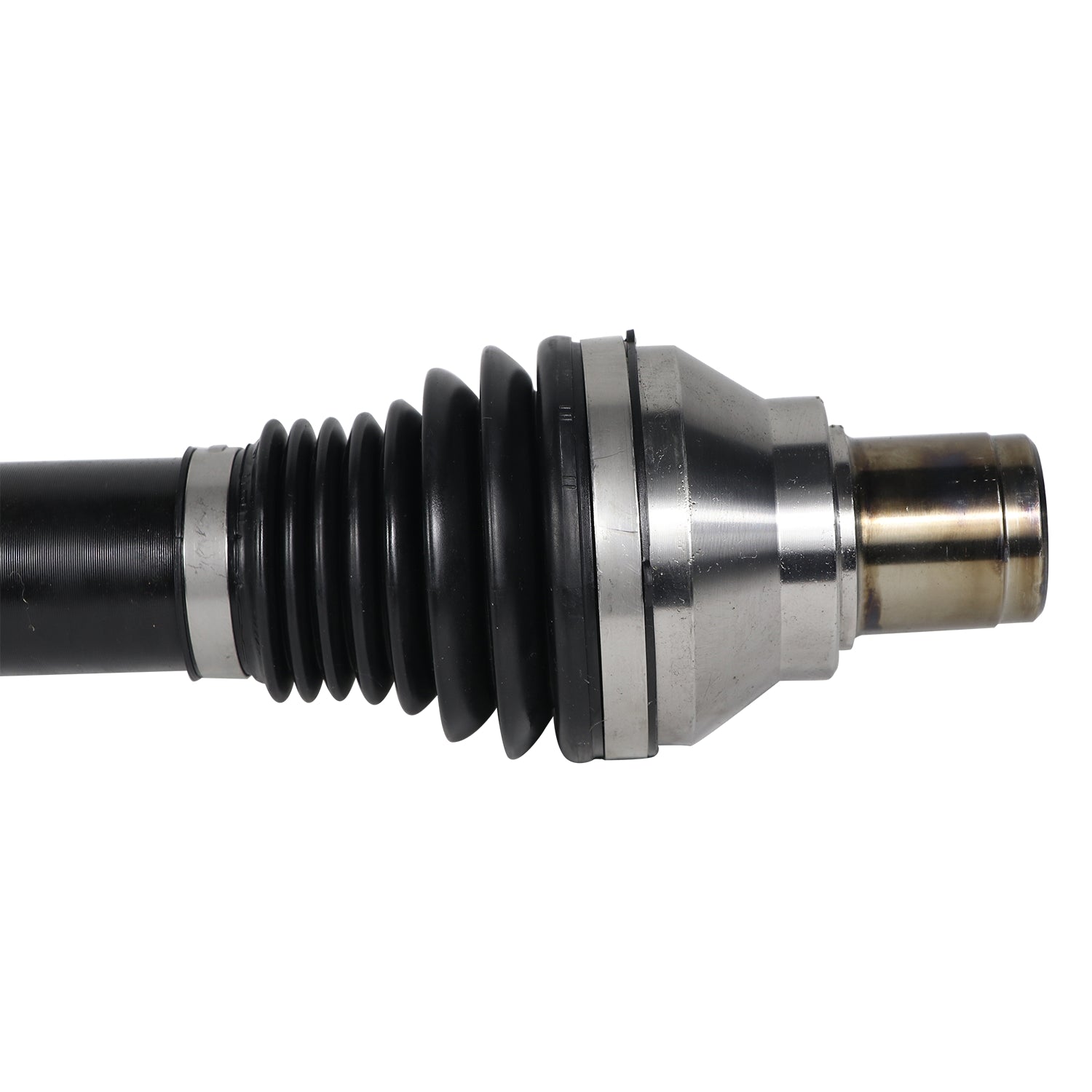

Jeep, Ram (4WD) CV Axle Assembly - Front

$212.95 USD

Product Description

Unlock a new level of performance and capability for your lifted vehicle's suspension with GSP Extreme Duty Plus (XDP) Axles designed for extended travel. Elevate your vehicle's suspension with confidence, knowing that GSP XDP axles are manufactured for extreme operating angles. Equipped with a revolutionary rolling guide spline bearing driven center bar, GSP XDP axles provide an unparalleled advantage over OE designed options. Experience increased travel capabilities that allow your lifted vehicle to navigate through challenging terrains. Thanks to the innovative high-speed 8 ball joint featured on both the wheel and gearbox sides of the GSP XDP axle, you can expect a higher articulation angle of up to 47 degrees. This exceptional capability allows for maximum performance across all travel ranges and significantly improves torque capability. Say good-bye to corrosion, GSP Extreme Duty Plus (XDP) Axles are finished with a durable protective coating that prevents corrosion to ensure a longer service life. Trust in the reliability, durability, and travel capability that sets GSP Extreme Duty Plus Axles apart from the rest.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2012-2020 Ram 1500 - Front
2021-2021 Ram 1500 Big Horn Front
2021-2021 Ram 1500 Hemi Sport Front
2021-2021 Ram 1500 Laramie Front
2021-2021 Ram 1500 Laramie Longhorn Front
2021-2021 Ram 1500 Laramie Sport Front
2021-2021 Ram 1500 Limited Front
2021-2021 Ram 1500 Limited Longhorn Front
2021-2021 Ram 1500 Lone Star Front
2021-2021 Ram 1500 Longhorn Front
2021-2021 Ram 1500 Rebel Front
2021-2021 Ram 1500 SLT Front
2021-2021 Ram 1500 Special Service Front
2021-2021 Ram 1500 Sport Front
2021-2021 Ram 1500 Tradesman Front
2021-2021 Ram 1500 HFE Front
2022-2022 Ram 1500 Big Horn Front
2022-2022 Ram 1500 Hemi Sport Front
2022-2022 Ram 1500 HFE Front
2022-2022 Ram 1500 Laramie Front
2022-2022 Ram 1500 Laramie Sport Front
2022-2022 Ram 1500 Limited Front
2022-2022 Ram 1500 Limited Longhorn Front
2022-2022 Ram 1500 Lone Star Front
2022-2022 Ram 1500 Longhorn Front
2022-2022 Ram 1500 Rebel Front
2022-2022 Ram 1500 SLT Front
2022-2022 Ram 1500 Sport Front
2022-2022 Ram 1500 Tradesman Front
2023-2023 Ram 1500 Big Horn Front
2023-2023 Ram 1500 Big Horn OffRoad Front
2023-2023 Ram 1500 Hemi Sport Front
2023-2023 Ram 1500 HFE Front
2023-2023 Ram 1500 Laramie Front
2023-2023 Ram 1500 Laramie Sport Front
2023-2023 Ram 1500 Limited Front
2023-2023 Ram 1500 Limited Longhorn Front
2023-2023 Ram 1500 Lone Star Front
2023-2023 Ram 1500 Longhorn Front
2023-2023 Ram 1500 Rebel Front
2023-2023 Ram 1500 SLT Front
2023-2023 Ram 1500 Sport Front
2023-2023 Ram 1500 Tradesman Front
2024-2024 Ram 1500 Big Horn Front
2024-2024 Ram 1500 HFE Front
2024-2024 Ram 1500 Laramie Front
2024-2024 Ram 1500 Laramie Sport Front
2024-2024 Ram 1500 Limited Front
2024-2024 Ram 1500 Limited Longhorn Front
2024-2024 Ram 1500 Lone Star Front
2024-2024 Ram 1500 Longhorn Front
2024-2024 Ram 1500 Rebel Front
2024-2024 Ram 1500 Sport Front
2024-2024 Ram 1500 Tradesman Front
2025-2025 Ram 1500 Big Horn Front
2025-2025 Ram 1500 Laramie Front
2025-2025 Ram 1500 Limited Front
2025-2025 Ram 1500 Limited Longhorn Front
2025-2025 Ram 1500 Lone Star Front
2025-2025 Ram 1500 Rebel Front
2025-2025 Ram 1500 Tradesman Front
2025-2025 Ram 1500 Tungsten Front
2025-2025 Ram 1500 Warlock Front
2019-2020 Ram 1500 Classic - Front
2021-2021 Ram 1500 Classic - Front
2023-2024 Jeep Grand Wagoneer L - Front
2023-2024 Jeep Wagoneer L - Front
2022-2024 Jeep Grand Wagoneer - Front
2022-2024 Jeep Wagoneer - Front
