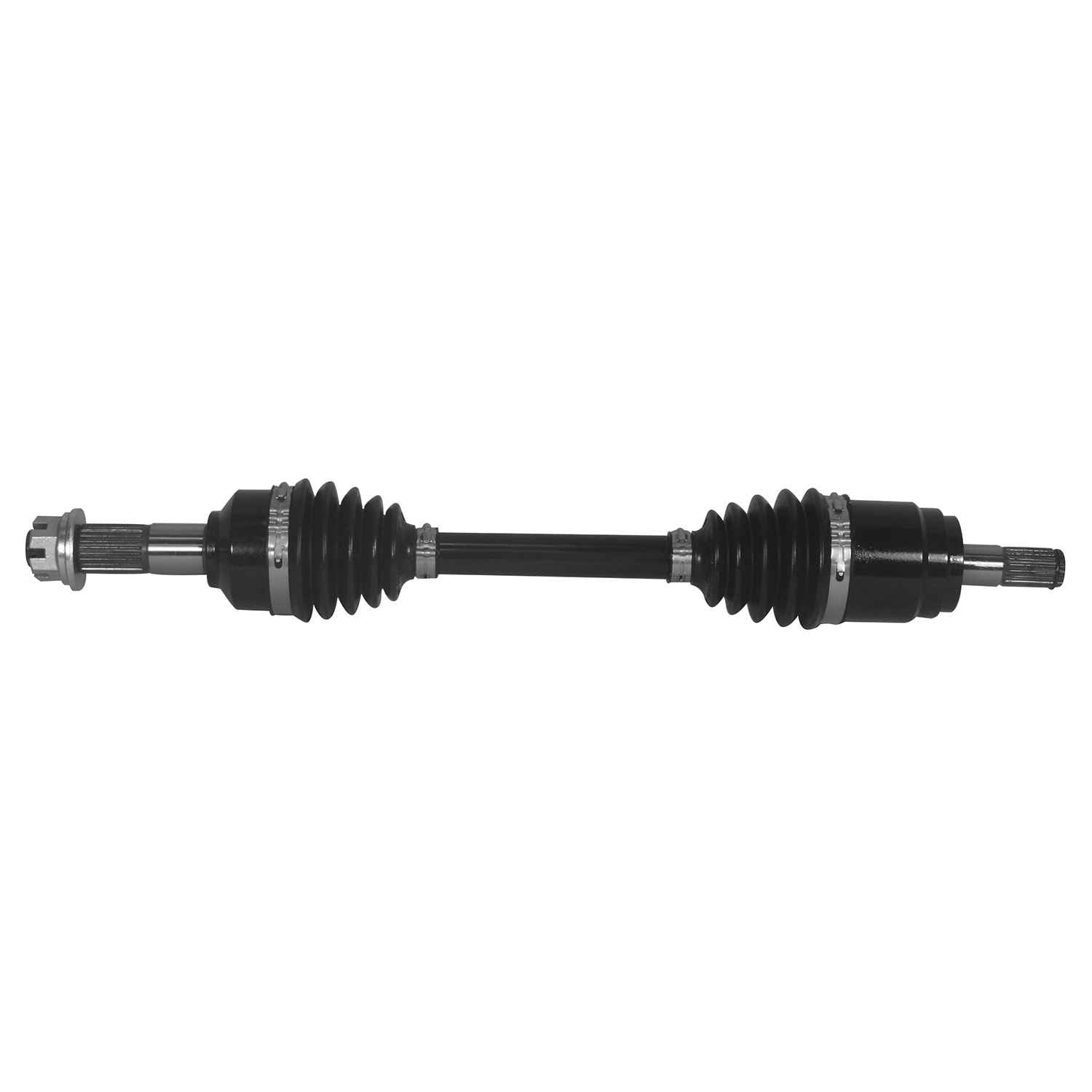

Part Number: 4123029
Couldn't load pickup availability
Specifications
| Axle Nut Included | Yes |
|---|---|
| Axle Nut Length (IN) | 0.75 |
| Axle Nut Socket Size (MM) | 30 |
| Axle Nut Thread Size | M20X1.0-6H |

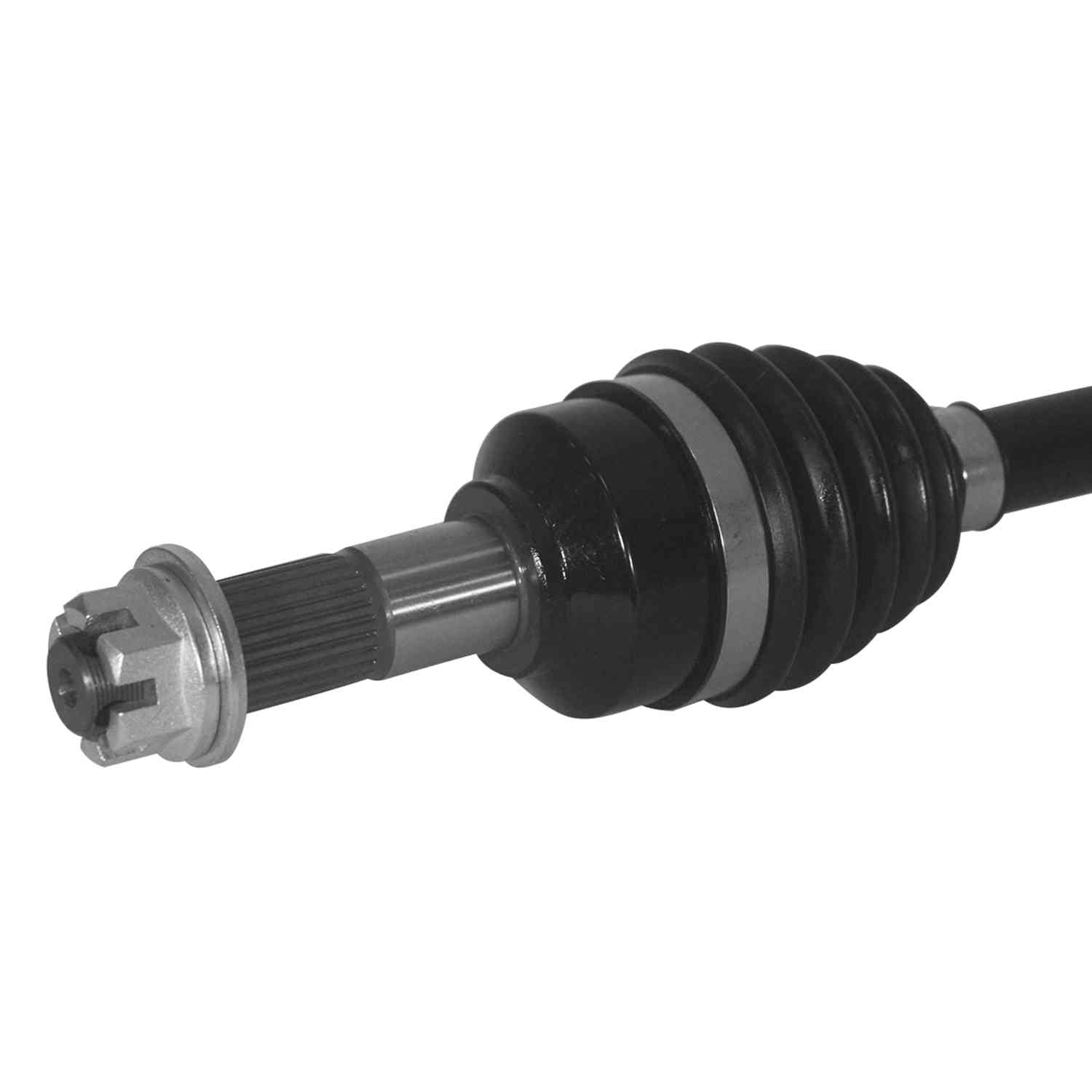

| Axle Nut Type | Castle Nut |
| Boot Material | TPE |
| California Proposition 65 | Yes |

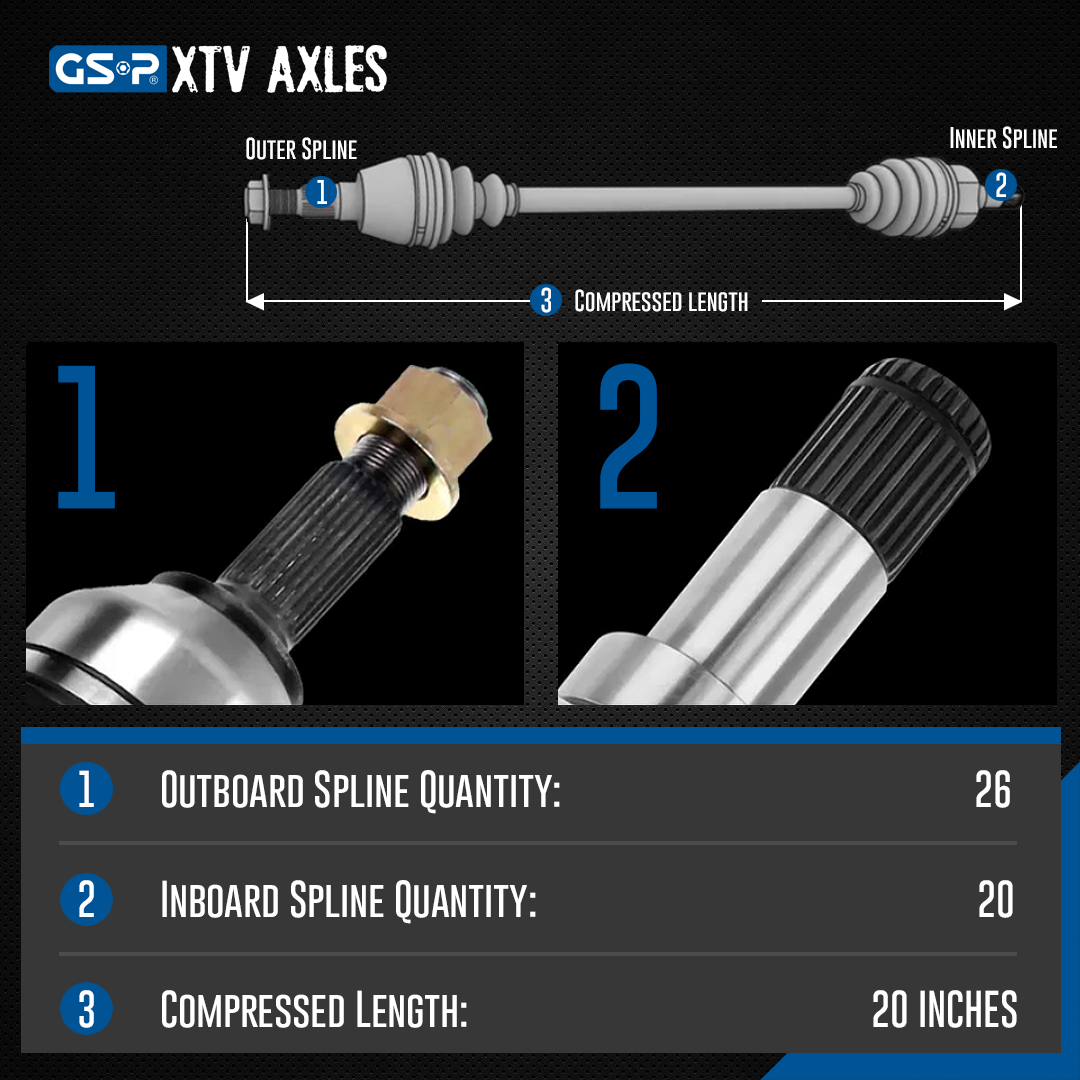

| Compressed Length (IN) | 20.00 |
| Dynamic Damper Attached | No |
| Extended Length (IN) | 21.5 |

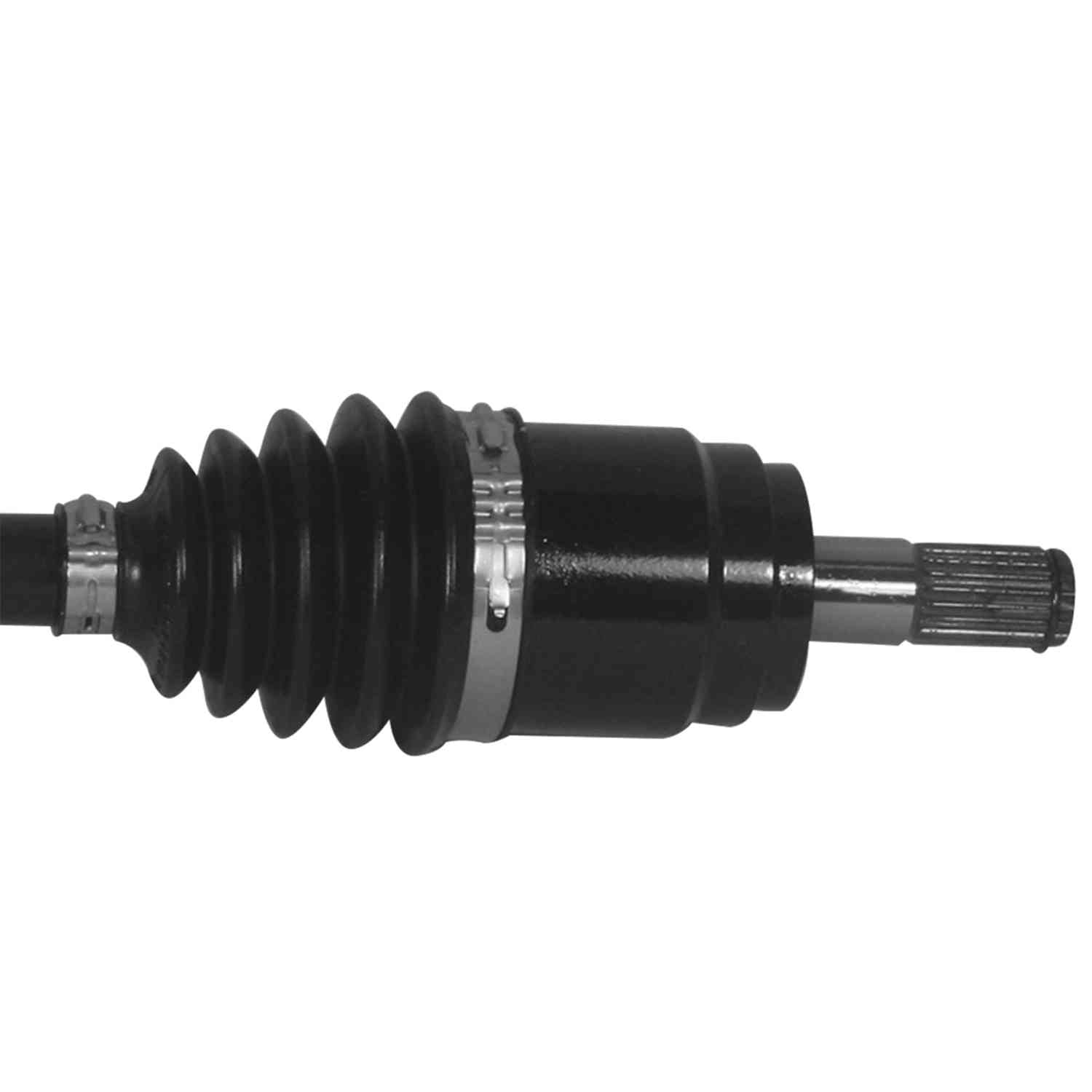

| Inboard Joint Type | DOJ |
| Inboard Spline Quantity | 20 |
| Outboard Joint Type | BJ |
| Outboard Spline Quantity | 26 |
| Placement | Front Right |
| Prop 65 Applicable | Yes |
| Shaft Diameter (MM) | 23 |
| Shaft Material | 40Cr(XC) |
Product Description
GSP's OE+ line is designed to provide you with an affordable yet high-quality OEM replacement axle that will exceed your expectations. With GSPXTV OE+ CV Axles, you can trust that you're getting a top-notch product that matches the quality of an original equipment (OE) replacement. We understand the importance of having a reliable and durable axle for your vehicle, which is why our OE+ line is built to last. Not only do our OE+ CV Axles offer exceptional quality, but they also provide outstanding value. We believe that everyone should have access to reliable and affordable replacement parts, without sacrificing on performance.
Features & Benefits
- Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
- All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
- Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
- High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
- To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Applications
| Year Range | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2014-2014 | Honda | TRX500FA FourTrax Foreman Rubicon | - | Front Right |
| 2014-2014 | Honda | TRX500FPA FourTrax Foreman Rubicon with EPS | - | Front Right |
| 2019-2019 | Honda | TRX420FA2 FourTrax Rancher 4x4 Auto DCT with EPS | - | Front Right |
| 2018-2019 | Honda | TRX420FE1 FourTrax Rancher 4x4 ES | - | Front Right |
| 2018-2019 | Honda | TRX420FM1 FourTrax Rancher 4x4 | - | Front Right |
| 2018-2018 | Honda | TRX420TM1 FourTrax Rancher | - | Front Right |
| 2015-2016 | Honda | TRX500FE1 FourTrax Foreman 4x4 ES | - | Front Right |
| 2015-2019 | Honda | TRX500FE2 FourTrax Foreman 4x4 ES with EPS | - | Front Right |
| 2015-2019 | Honda | TRX500FM1 FourTrax Foreman 4x4 | - | Front Right |
| 2015-2016 | Honda | TRX500FM2 FourTrax Foreman 4x4 with EPS | - | Front Right |
| 2015-2016 | Honda | TRX500FM5 FourTrax Foreman Rubicon | - | Front Right |
| 2015-2019 | Honda | TRX500FM6 FourTrax Foreman Rubicon EPS | - | Front Right |
| 2015-2016 | Honda | TRX500FA5 FourTrax Foreman Rubicon Auto DCT | - | Front Right |
| 2015-2016 | Honda | TRX500FA6 FourTrax Foreman Rubicon Auto DCT EPS | - | Front Right |
| 2015-2019 | Honda | TRX420FA5 FourTrax Rancher 4x4 Auto DCT IRS | - | Front Right |
| 2015-2019 | Honda | TRX420FA6 FourTrax Rancher 4x4 Auto DCT IRS EPS | - | Front Right |
