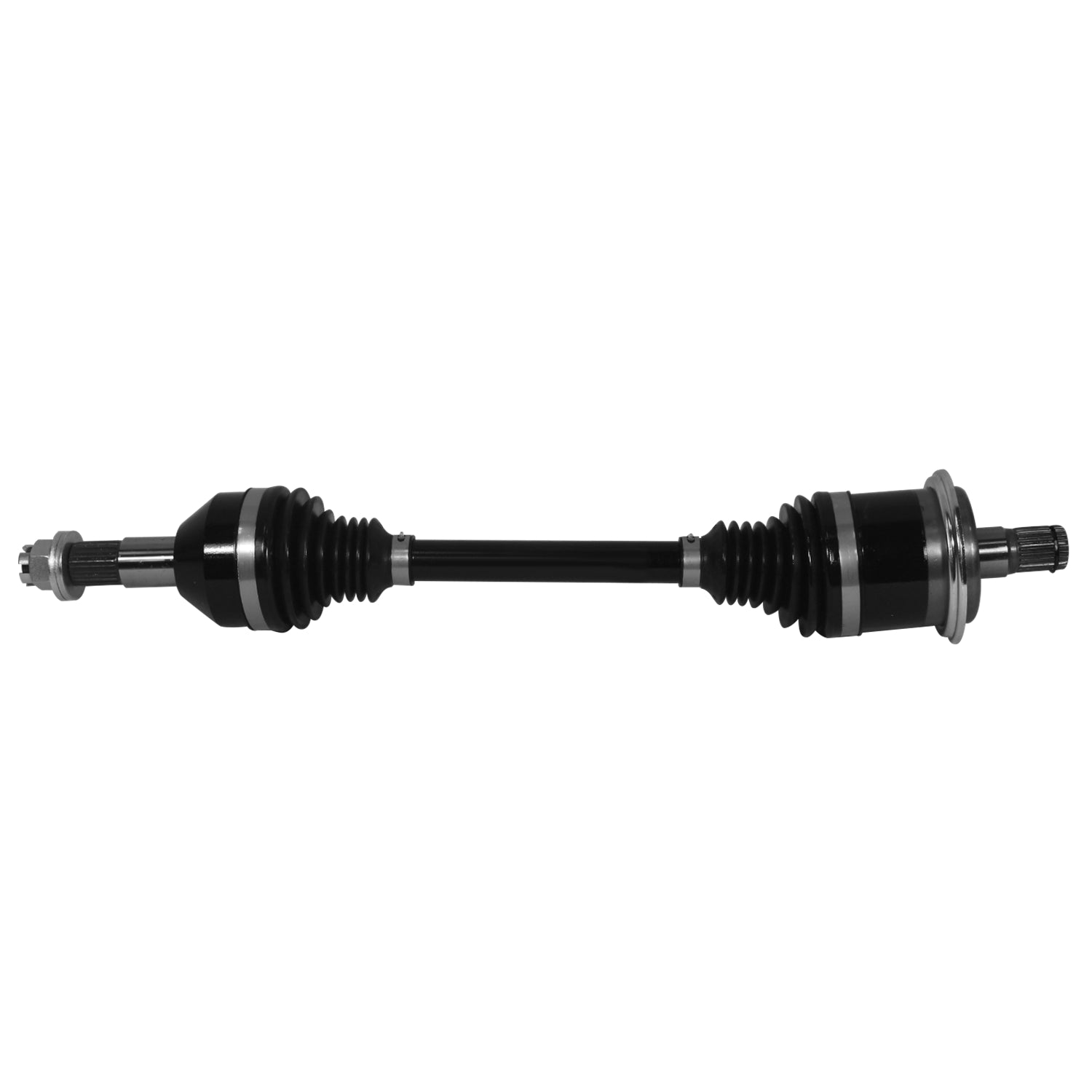

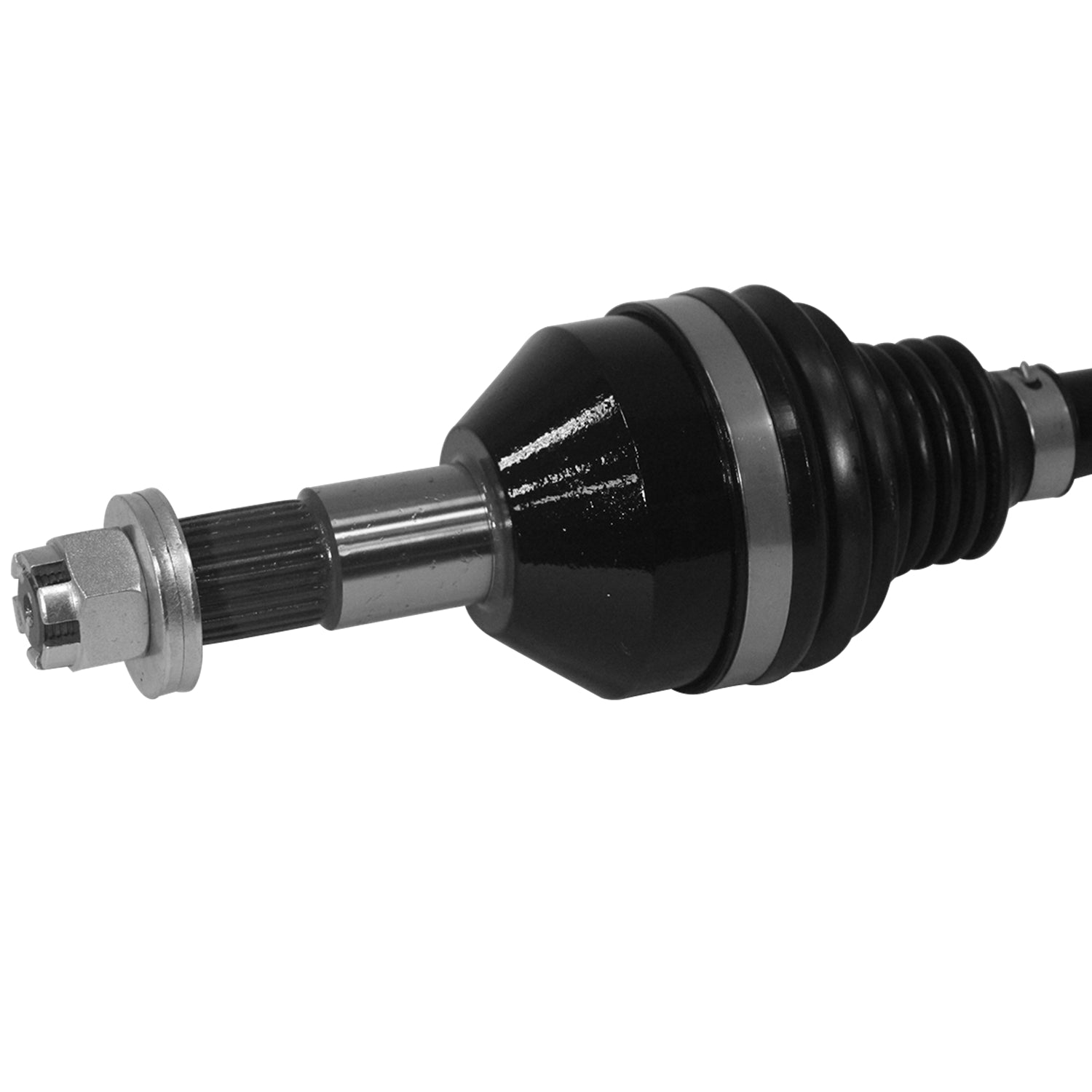

Part Number: 4102014
Couldn't load pickup availability
Specifications
| Axle Nut Included | Yes |
|---|---|
| Axle Nut Length (IN) | 0.83 |
| Axle Nut Socket Size (MM) | 27 |
| Axle Nut Thread Size | M18X1.5-6H |
| Axle Nut Type | Castle Nut |
| Boot Material | TPE |
| California Proposition 65 | Yes |
| Compressed Length (IN) | 22.01 |
| Dynamic Damper Attached | No |
| Extended Length (IN) | 24.25 |
| Inboard Joint Type | BJ |
| Inboard Spline Quantity | 24 |
| Outboard Joint Type | BJ |
| Outboard Spline Quantity | 26 |
| Placement | Rear Left |
| Prop 65 Applicable | Yes |
| Shaft Diameter (MM) | 24.5 |
| Shaft Material | 40Cr(XC) |
Product Description
GSP's OE+ line is designed to provide you with an affordable yet high-quality OEM replacement axle that will exceed your expectations. With GSPXTV OE+ CV Axles, you can trust that you're getting a top-notch product that matches the quality of an original equipment (OE) replacement. We understand the importance of having a reliable and durable axle for your vehicle, which is why our OE+ line is built to last. Not only do our OE+ CV Axles offer exceptional quality, but they also provide outstanding value. We believe that everyone should have access to reliable and affordable replacement parts, without sacrificing on performance.
Features & Benefits
- Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
- All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
- Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
- High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
- To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
Applications
| Year Range | Make | Model | Submodel | Position |
|---|---|---|---|---|
| 2011-2014 | Can-Am | Outlander 400 EFI | - | Rear Left |
| 2011-2013 | Can-Am | Outlander 400 EFI XT | - | Rear Left |
| 2007-2008 | Can-Am | Outlander 400 HO | - | Rear Left |
| 2008-2010 | Can-Am | Outlander 400 HO EFI | - | Rear Left |
| 2008-2010 | Can-Am | Outlander 400 HO EFI XT | - | Rear Left |
| 2007-2008 | Can-Am | Outlander 400 HO XT | - | Rear Left |
| 2011-2014 | Can-Am | Outlander 500 EFI | - | Rear Left |
| 2011-2015 | Can-Am | Outlander 500 EFI XT | - | Rear Left |
| 2007-2010 | Can-Am | Outlander 500 HO 4x4 EFI | - | Rear Left |
| 2007-2010 | Can-Am | Outlander 500 HO 4x4 EFI XT | - | Rear Left |
| 2010-2010 | Can-Am | Outlander 500 HO 4x4 EFI XT-P | - | Rear Left |
| 2011-2016 | Can-Am | Outlander 650 EFI | - | Rear Left |
| 2011-2015 | Can-Am | Outlander 650 EFI XT | - | Rear Left |
| 2010-2011 | Can-Am | Outlander 650 EFI XT-P | - | Rear Left |
| 2007-2010 | Can-Am | Outlander 650 HO 4x4 EFI | - | Rear Left |
| 2007-2010 | Can-Am | Outlander 650 HO 4x4 EFI XT | - | Rear Left |
| 2007-2010 | Can-Am | Outlander 800 HO 4x4 EFI | - | Rear Left |
| 2007-2010 | Can-Am | Outlander 800 HO 4x4 EFI XT | - | Rear Left |
| 2011-2015 | Can-Am | Outlander 800R EFI | - | Rear Left |
| 2011-2011 | Can-Am | Outlander 800R EFI X xc | - | Rear Left |
| 2011-2015 | Can-Am | Outlander 800R EFI XT | - | Rear Left |
| 2011-2011 | Can-Am | Outlander 800R EFI XT-P | - | Rear Left |
| 2013-2015 | Can-Am | Outlander 800R EFI XT-P | - | Rear Left |
| 2011-2012 | Can-Am | Outlander Max 400 EFI | - | Rear Left |
| 2011-2012 | Can-Am | Outlander Max 400 EFI XT | - | Rear Left |
| 2014-2014 | Can-Am | Outlander Max 400 EFI XT | - | Rear Left |
| 2007-2008 | Can-Am | Outlander Max 400 HO | - | Rear Left |
| 2008-2010 | Can-Am | Outlander Max 400 HO EFI | - | Rear Left |
| 2008-2010 | Can-Am | Outlander Max 400 HO EFI XT | - | Rear Left |
| 2007-2008 | Can-Am | Outlander Max 400 HO XT | - | Rear Left |
| 2011-2011 | Can-Am | Outlander Max 500 EFI | - | Rear Left |
| 2013-2014 | Can-Am | Outlander Max 500 EFI | - | Rear Left |
| 2011-2014 | Can-Am | Outlander Max 500 EFI XT | - | Rear Left |
| 2007-2010 | Can-Am | Outlander Max 500 HO EFI | - | Rear Left |
| 2010-2010 | Can-Am | Outlander Max 500 HO EFI LTD | - | Rear Left |
| 2007-2010 | Can-Am | Outlander Max 500 HO EFI XT | - | Rear Left |
| 2010-2010 | Can-Am | Outlander Max 500 HO EFI XT-P | - | Rear Left |
| 2011-2015 | Can-Am | Outlander Max 650 EFI | - | Rear Left |
| 2011-2014 | Can-Am | Outlander Max 650 EFI XT | - | Rear Left |
| 2011-2012 | Can-Am | Outlander Max 650 EFI XT-P | - | Rear Left |
| 2007-2010 | Can-Am | Outlander Max 650 HO EFI | - | Rear Left |
| 2007-2010 | Can-Am | Outlander Max 650 HO EFI XT | - | Rear Left |
| 2007-2010 | Can-Am | Outlander Max 800 HO EFI | - | Rear Left |
| 2007-2010 | Can-Am | Outlander Max 800 HO EFI LTD | - | Rear Left |
| 2007-2010 | Can-Am | Outlander Max 800 HO EFI XT | - | Rear Left |
| 2011-2012 | Can-Am | Outlander Max 800R EFI | - | Rear Left |
| 2011-2012 | Can-Am | Outlander Max 800R EFI LTD | - | Rear Left |
| 2011-2014 | Can-Am | Outlander Max 800R EFI XT | - | Rear Left |
| 2010-2014 | Can-Am | Outlander Max 800R EFI XT-P | - | Rear Left |
| 2008-2015 | Can-Am | Renegade 500 | - | Rear Left |
| 2012-2012 | Can-Am | Outlander 1000 EFI | - | Rear Left |
| 2012-2012 | Can-Am | Outlander 1000 EFI XT | - | Rear Left |
| 2014-2014 | Can-Am | Outlander 1000 EFI XT | - | Rear Left |
| 2012-2012 | Can-Am | Outlander 800R EFI X mr | - | Rear Left |
| 2012-2018 | Can-Am | Renegade 1000 | - | Rear Left |
| 2013-2015 | Can-Am | Renegade 800R | - | Rear Left |
| 2014-2016 | Can-Am | Outlander 1000 EFI DPS | - | Rear Left |
| 2014-2015 | Can-Am | Outlander 1000 EFI XT-P | - | Rear Left |
| 2013-2018 | Can-Am | Outlander 1000 X mr | - | Rear Left |
| 2013-2015 | Can-Am | Outlander 500 EFI DPS | - | Rear Left |
| 2013-2016 | Can-Am | Outlander 650 EFI DPS | - | Rear Left |
| 2013-2013 | Can-Am | Outlander 650 X mr | - | Rear Left |
| 2013-2015 | Can-Am | Outlander 800R EFI DPS | - | Rear Left |
| 2013-2015 | Can-Am | Outlander Max 1000 EFI DPS | - | Rear Left |
| 2013-2014 | Can-Am | Outlander Max 1000 EFI LTD | - | Rear Left |
| 2013-2014 | Can-Am | Outlander Max 1000 EFI XT | - | Rear Left |
| 2013-2014 | Can-Am | Outlander Max 1000 EFI XT-P | - | Rear Left |
| 2013-2015 | Can-Am | Outlander Max 500 EFI DPS | - | Rear Left |
| 2013-2015 | Can-Am | Outlander Max 650 EFI DPS | - | Rear Left |
| 2013-2015 | Can-Am | Outlander Max 800R EFI DPS | - | Rear Left |
| 2016-2016 | Can-Am | Outlander L 570 | - | Rear Left |
| 2016-2016 | Can-Am | Outlander L 570 DPS | - | Rear Left |
| 2016-2016 | Can-Am | Outlander L 570 X mr | - | Rear Left |
| 2017-2019 | Can-Am | Outlander 570 DPS | - | Rear Left |
| 2016-2016 | Can-Am | Outlander 850 DPS | - | Rear Left |
| 2016-2018 | Can-Am | Outlander 850 XT | - | Rear Left |
| 2017-2018 | Can-Am | Outlander Max 570 DPS | - | Rear Left |
| 2018-2018 | Can-Am | Outlander Max 850 XT | - | Rear Left |
| 2017-2017 | Can-Am | Outlander 450 | - | Rear Left |
| 2019-2021 | Can-Am | Outlander 450 | - | Rear Left |
| 2016-2023 | Can-Am | Outlander 570 | - | Rear Left |
| 2017-2017 | Can-Am | Outlander 450 DPS | - | Rear Left |
| 2019-2019 | Can-Am | Outlander 450 DPS | - | Rear Left |
| 2018-2019 | Can-Am | Outlander 570 Mossy Oak Hunting Edition | - | Rear Left |
| 2017-2017 | Can-Am | Outlander Max 450 | - | Rear Left |
| 2017-2017 | Can-Am | Outlander Max 570 | - | Rear Left |
| 2017-2017 | Can-Am | Outlander Max 450 DPS | - | Rear Left |
| 2017-2017 | Can-Am | Outlander 570 EFI X mr | - | Rear Left |
| 2017-2018 | Can-Am | Outlander 650 | - | Rear Left |
| 2018-2018 | Can-Am | Outlander 1000 DPS | - | Rear Left |
| 2018-2018 | Can-Am | Outlander Max 650 DPS | - | Rear Left |
| 2018-2018 | Can-Am | Outlander 650 6x6 DPS | - | Rear Left |
| 2019-2019 | Can-Am | Outlander 450 Mossy Oak Hunting Edition | - | Rear Left |
| 2018-2018 | Can-Am | Outlander 650 North Edition | - | Rear Left |
| 2018-2018 | Can-Am | Outlander Max 650 North Edition | - | Rear Left |
| 2018-2018 | Can-Am | Outlander 850 North Edition | - | Rear Left |
| 2018-2018 | Can-Am | Outlander Max 850 North Edition | - | Rear Left |
