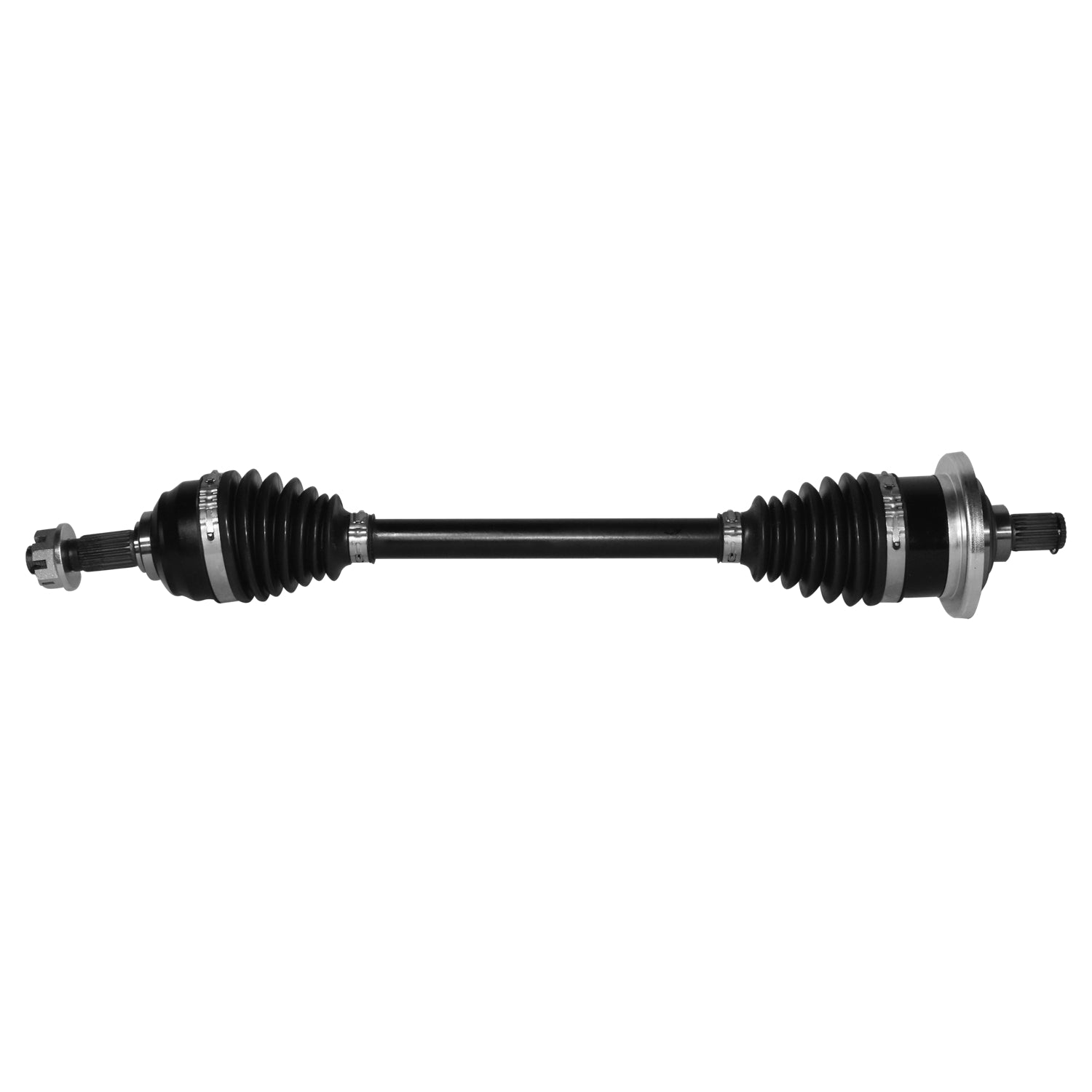

• 4101016.jpg

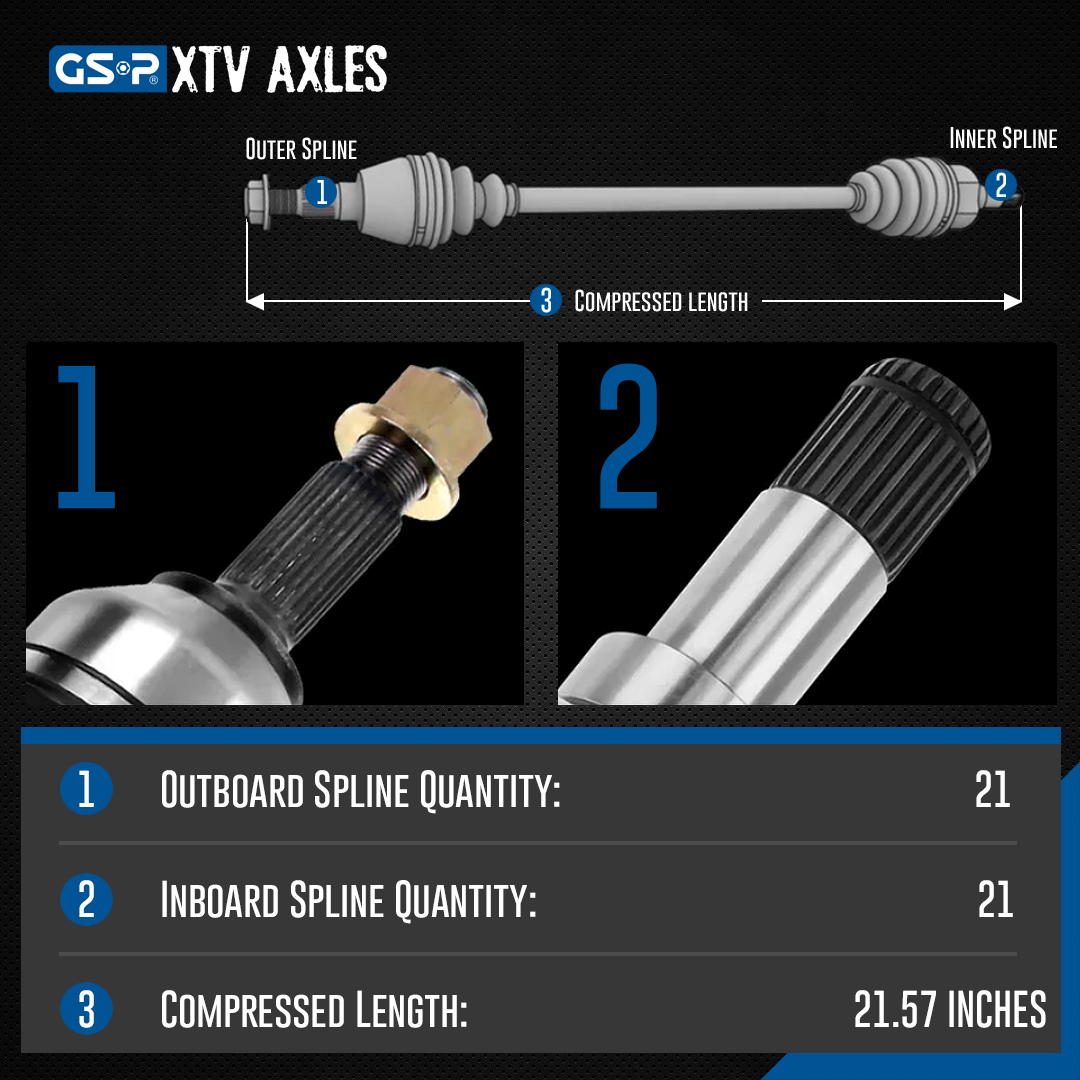

  • 4101016_Aplusspecs.png
  • 4101016_1.jpg

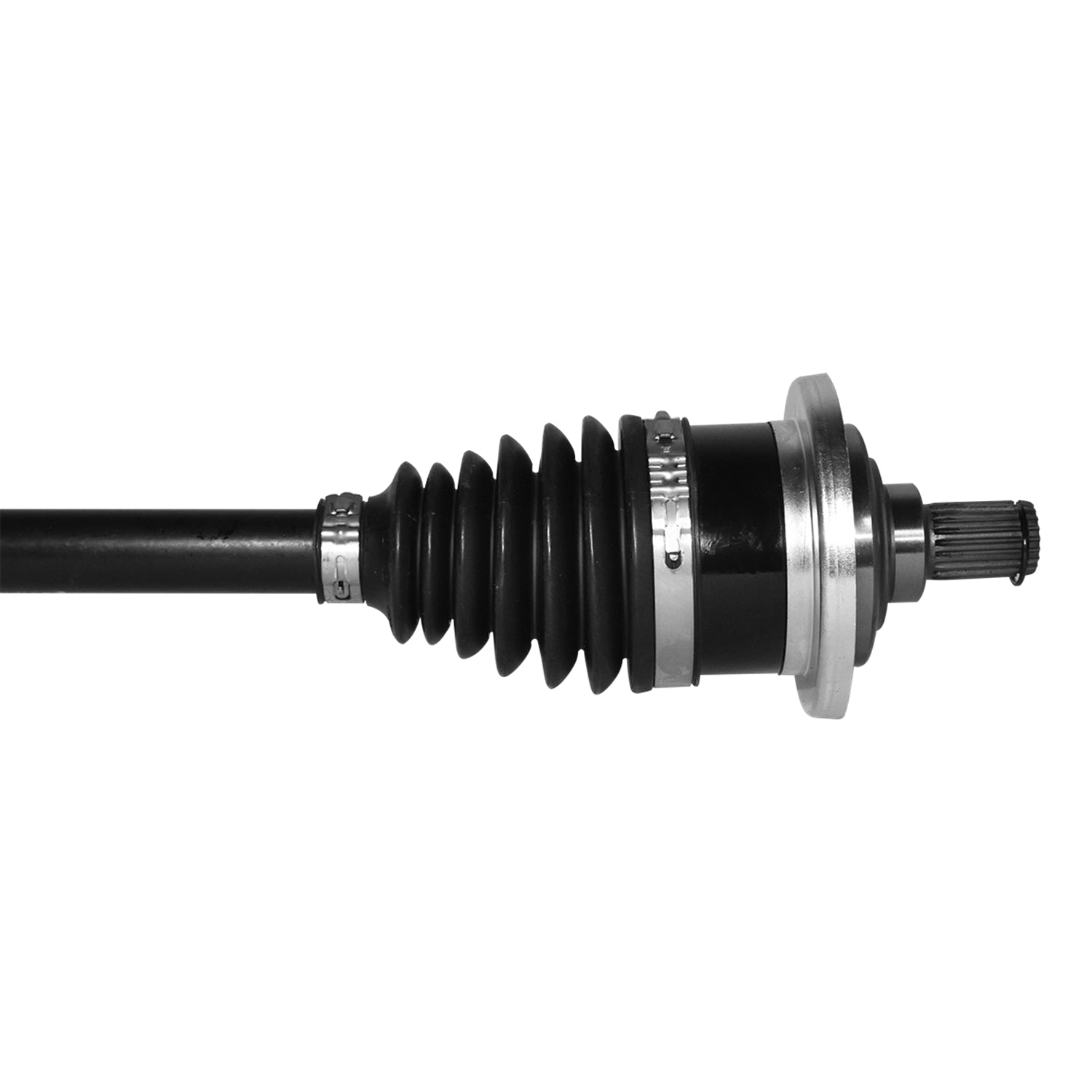

  • 4101016_2.jpg

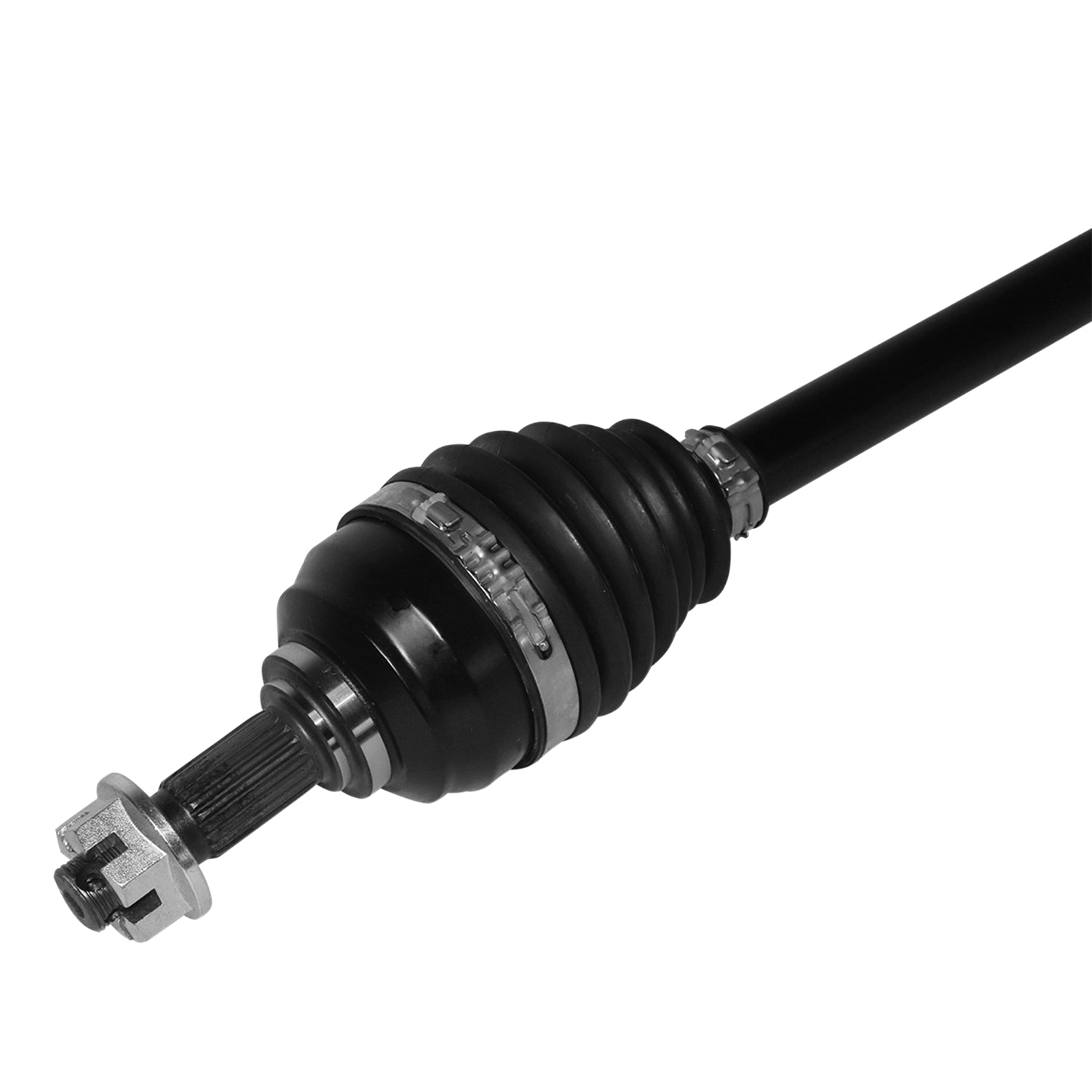

  • 4101016_3.jpg
  • 4101016_4.jpg

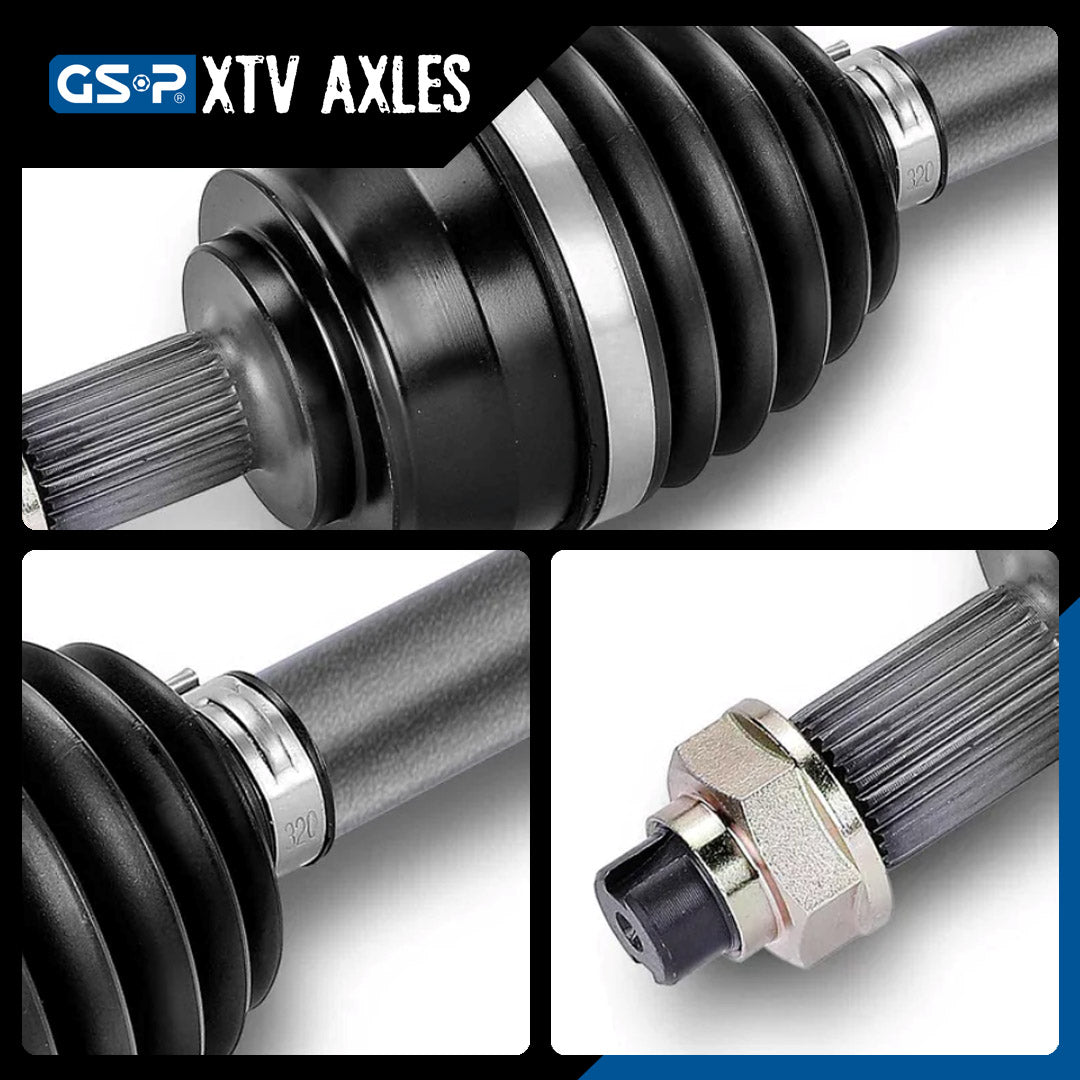

  • Upclose Images.jpg

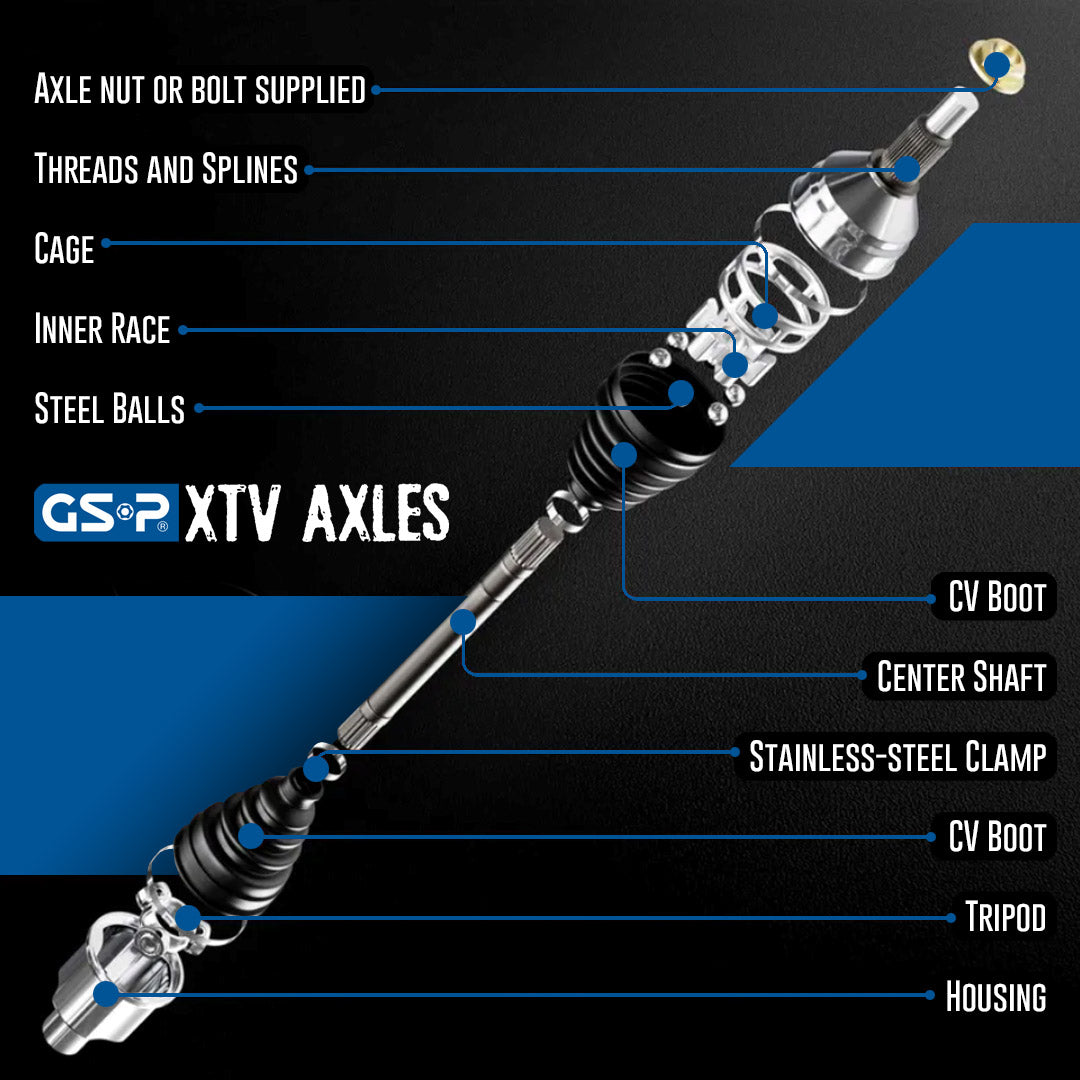

  • Breakdown of Axle.jpg
  • Signs and Symptoms.jpg

GSP

Part Number: 4101016

883331002314

Contact Dealer for Price

Locate a Distributor

Specifications

Axle Nut Included Yes
Axle Nut Length (IN) 0.71
Axle Nut Socket Size (MM) 30
Axle Nut Thread Size M18X1.5-6H
Axle Nut Type Castle Nut
Boot Material TPE
California Proposition 65 Yes

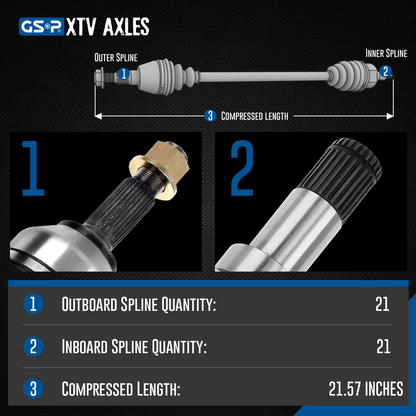

Compressed Length (IN) 21.57
Dynamic Damper Attached No
Extended Length (IN) 23.19
Inboard Joint Type DOJ
Inboard Spline Quantity 21
Outboard Joint Type BJ
Outboard Spline Quantity 21
Placement Front Left
Prop 65 Applicable Yes
Shaft Diameter (MM) 23
Shaft Material 40Cr(XC)
Arctic Cat CV Axle Assembly

$165.95 USD

Product Description

GSP's OE+ line is designed to provide you with an affordable yet high-quality OEM replacement axle that will exceed your expectations. With GSPXTV OE+ CV Axles, you can trust that you're getting a top-notch product that matches the quality of an original equipment (OE) replacement. We understand the importance of having a reliable and durable axle for your vehicle, which is why our OE+ line is built to last. Not only do our OE+ CV Axles offer exceptional quality, but they also provide outstanding value. We believe that everyone should have access to reliable and affordable replacement parts, without sacrificing on performance.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2003-2004 Arctic Cat 400 2x4 - Front Left
2003-2004 Arctic Cat 400 2x4 - Front Right
2003-2004 Arctic Cat 400 2x4 - Rear Left
2003-2004 Arctic Cat 400 2x4 - Rear Right
2003-2004 Arctic Cat 400 2x4 Auto - Front Left
2003-2004 Arctic Cat 400 2x4 Auto - Front Right
2003-2004 Arctic Cat 400 2x4 Auto - Rear Left
2003-2004 Arctic Cat 400 2x4 Auto - Rear Right
2002-2002 Arctic Cat 400 2x4 FIS - Front Left
2002-2002 Arctic Cat 400 2x4 FIS - Front Right
2002-2002 Arctic Cat 400 2x4 FIS - Rear Left
2002-2002 Arctic Cat 400 2x4 FIS - Rear Right
2002-2004 Arctic Cat 400 4x4 - Front Left
2002-2004 Arctic Cat 400 4x4 - Front Right
2002-2004 Arctic Cat 400 4x4 - Rear Left
2002-2004 Arctic Cat 400 4x4 - Rear Right
2003-2004 Arctic Cat 400 4x4 ACT - Front Left
2003-2004 Arctic Cat 400 4x4 ACT - Front Right
2003-2004 Arctic Cat 400 4x4 ACT - Rear Left
2003-2004 Arctic Cat 400 4x4 ACT - Rear Right
2002-2004 Arctic Cat 400 4x4 Auto - Front Left
2002-2004 Arctic Cat 400 4x4 Auto - Front Right
2002-2004 Arctic Cat 400 4x4 Auto - Rear Left
2002-2004 Arctic Cat 400 4x4 Auto - Rear Right
2003-2004 Arctic Cat 400 4x4 Auto ACT - Front Left
2003-2004 Arctic Cat 400 4x4 Auto ACT - Front Right
2003-2004 Arctic Cat 400 4x4 Auto ACT - Rear Left
2003-2004 Arctic Cat 400 4x4 Auto ACT - Rear Right
2003-2004 Arctic Cat 400 4x4 Auto MRP - Front Left
2003-2004 Arctic Cat 400 4x4 Auto MRP - Front Right
2003-2004 Arctic Cat 400 4x4 Auto MRP - Rear Left
2003-2004 Arctic Cat 400 4x4 Auto MRP - Rear Right
2004-2004 Arctic Cat 400 4x4 Auto TBX - Front Left
2004-2004 Arctic Cat 400 4x4 Auto TBX - Front Right
2004-2004 Arctic Cat 400 4x4 Auto TBX - Rear Left
2004-2004 Arctic Cat 400 4x4 Auto TBX - Rear Right
2002-2002 Arctic Cat 400 4x4 FIS - Front Left
2002-2002 Arctic Cat 400 4x4 FIS - Front Right
2002-2002 Arctic Cat 400 4x4 FIS - Rear Left
2002-2002 Arctic Cat 400 4x4 FIS - Rear Right
2003-2004 Arctic Cat 400 4x4 MRP - Front Left
2003-2004 Arctic Cat 400 4x4 MRP - Front Right
2003-2004 Arctic Cat 400 4x4 MRP - Rear Left
2003-2004 Arctic Cat 400 4x4 MRP - Rear Right
2004-2004 Arctic Cat 50 2x4 - Front Left
2004-2004 Arctic Cat 50 2x4 - Front Right
2004-2004 Arctic Cat 50 2x4 - Rear Left
2004-2004 Arctic Cat 50 2x4 - Rear Right
2002-2004 Arctic Cat 500 4x4 - Front Left
2002-2004 Arctic Cat 500 4x4 - Front Right
2002-2004 Arctic Cat 500 4x4 - Rear Left
2002-2004 Arctic Cat 500 4x4 - Rear Right
2002-2004 Arctic Cat 500 4x4 Auto - Front Left
2002-2004 Arctic Cat 500 4x4 Auto - Front Right
2002-2004 Arctic Cat 500 4x4 Auto - Rear Left
2002-2004 Arctic Cat 500 4x4 Auto - Rear Right
2002-2002 Arctic Cat 500 4x4 Auto FIS - Front Left
2002-2002 Arctic Cat 500 4x4 Auto FIS - Front Right
2002-2002 Arctic Cat 500 4x4 Auto FIS - Rear Left
2002-2002 Arctic Cat 500 4x4 Auto FIS - Rear Right
2003-2004 Arctic Cat 500 4x4 Auto MRP - Front Left
2003-2004 Arctic Cat 500 4x4 Auto MRP - Front Right
2003-2004 Arctic Cat 500 4x4 Auto MRP - Rear Left
2003-2004 Arctic Cat 500 4x4 Auto MRP - Rear Right
2002-2004 Arctic Cat 500 4x4 Auto TBX - Front Left
2002-2004 Arctic Cat 500 4x4 Auto TBX - Front Right
2002-2004 Arctic Cat 500 4x4 Auto TBX - Rear Left
2002-2004 Arctic Cat 500 4x4 Auto TBX - Rear Right
2003-2004 Arctic Cat 500 4x4 Auto TRV - Front Left
2003-2004 Arctic Cat 500 4x4 Auto TRV - Front Right
2003-2004 Arctic Cat 500 4x4 Auto TRV - Rear Left
2003-2004 Arctic Cat 500 4x4 Auto TRV - Rear Right
2002-2002 Arctic Cat 500 4x4 FIS - Front Left
2002-2002 Arctic Cat 500 4x4 FIS - Front Right
2002-2002 Arctic Cat 500 4x4 FIS - Rear Left
2002-2002 Arctic Cat 500 4x4 FIS - Rear Right
2003-2004 Arctic Cat 500 4x4 MRP - Front Left
2003-2004 Arctic Cat 500 4x4 MRP - Front Right
2003-2004 Arctic Cat 500 4x4 MRP - Rear Left
2003-2004 Arctic Cat 500 4x4 MRP - Rear Right
2004-2004 Arctic Cat 650 4x4 Auto - Front Left
2004-2004 Arctic Cat 650 4x4 Auto - Front Right
2004-2004 Arctic Cat 650 4x4 Auto LE - Front Left
2004-2004 Arctic Cat 650 4x4 Auto LE - Front Right
2004-2004 Arctic Cat 650 V-2 4x4 Auto - Front Left
2004-2004 Arctic Cat 650 V-2 4x4 Auto - Front Right
2004-2004 Arctic Cat 650 V-2 4x4 Auto LE/TS - Front Left
2004-2004 Arctic Cat 650 V-2 4x4 Auto LE/TS - Front Right
2004-2004 Arctic Cat 650 V-2 4x4 Auto MRP - Front Left
2004-2004 Arctic Cat 650 V-2 4x4 Auto MRP - Front Right
