GSP

Part Number: 4101009

883331002246

Contact Dealer for Price

Locate a Distributor

Specifications

Axle Nut Included Yes
Axle Nut Length (IN) 0.63
Axle Nut Socket Size (MM) 30
Axle Nut Thread Size M22X1.5-6H
Axle Nut Type Castle Nut
Boot Material TPE
California Proposition 65 Yes

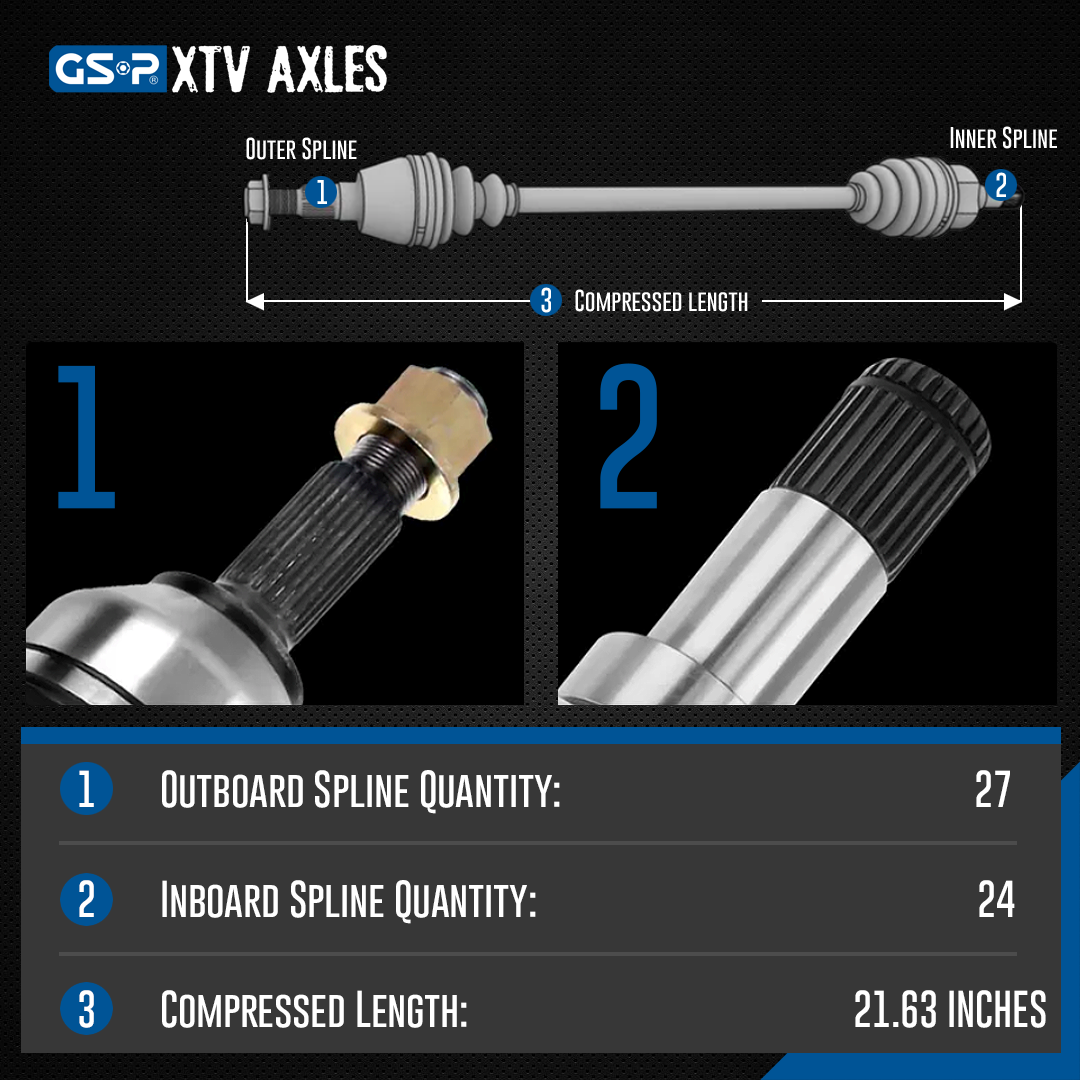

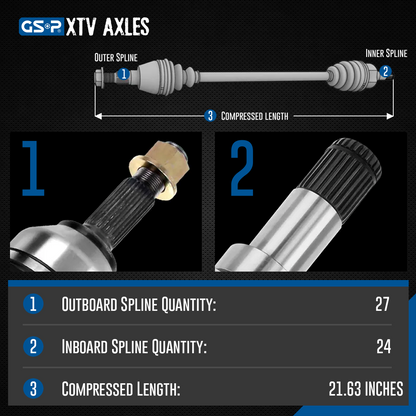

Compressed Length (IN) 21.63
Dynamic Damper Attached No
Extended Length (IN) 23.05
Inboard Joint Type DOJ
Inboard Spline Quantity 24
Outboard Joint Type BJ
Outboard Spline Quantity 27
Placement Front Left
Prop 65 Applicable Yes
Shaft Diameter (MM) 23
Shaft Material 40Cr(XC)

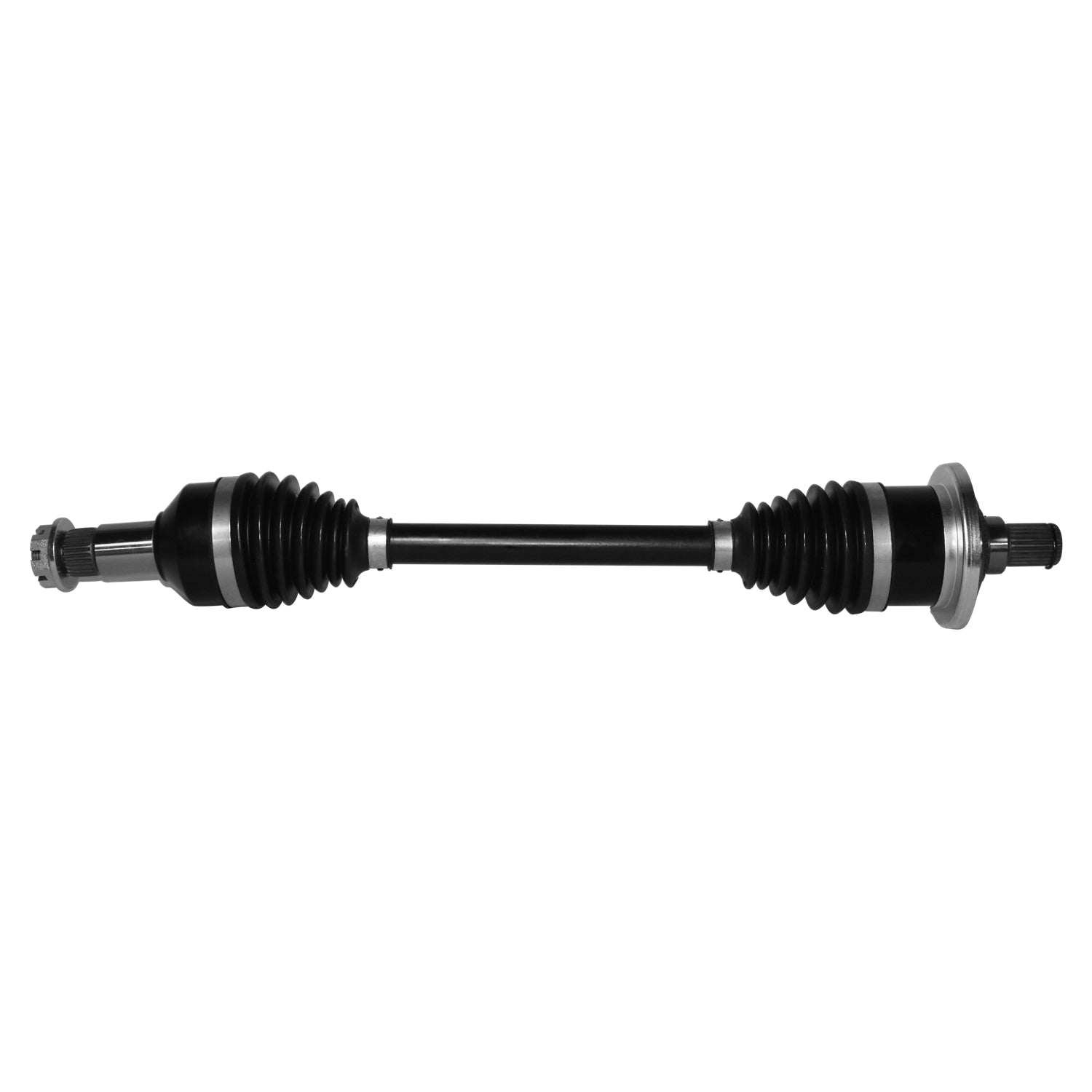

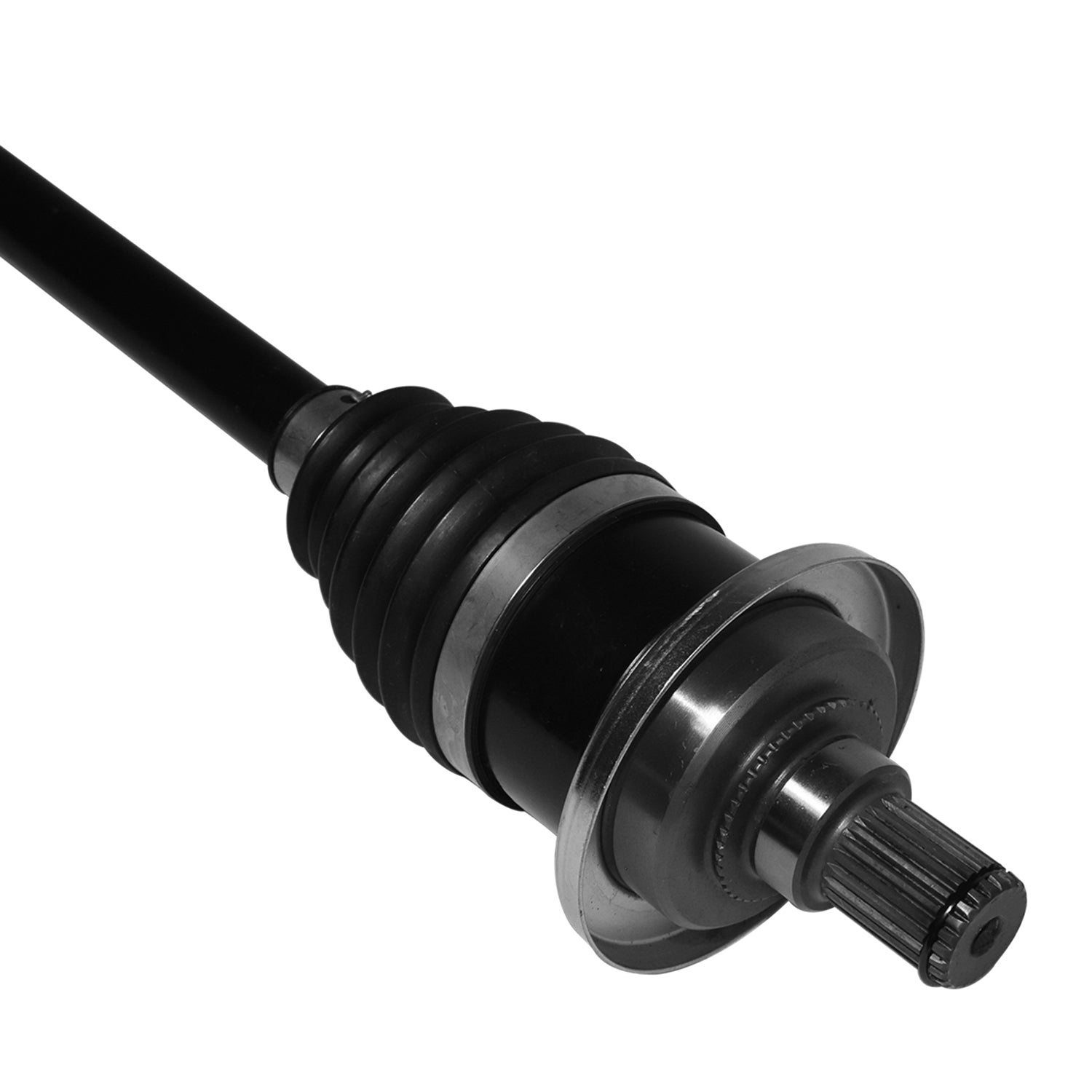

Arctic Cat CV Axle Assembly - Front Left

$165.95 USD

Product Description

GSP's OE+ line is designed to provide you with an affordable yet high-quality OEM replacement axle that will exceed your expectations. With GSPXTV OE+ CV Axles, you can trust that you're getting a top-notch product that matches the quality of an original equipment (OE) replacement. We understand the importance of having a reliable and durable axle for your vehicle, which is why our OE+ line is built to last. Not only do our OE+ CV Axles offer exceptional quality, but they also provide outstanding value. We believe that everyone should have access to reliable and affordable replacement parts, without sacrificing on performance.

Features & Benefits

  • Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
  • All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
  • Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
  • High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
  • To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.

Applications

Year Range Make Model Submodel Position
2009-2011 Arctic Cat 1000 TRV Cruiser - Front Left
2006-2006 Arctic Cat 400 4x4 - Front Left
2006-2006 Arctic Cat 400 4x4 Auto - Front Left
2008-2008 Arctic Cat 400 4x4 Auto - Front Left
2006-2006 Arctic Cat 400 4x4 Auto LE - Front Left
2006-2006 Arctic Cat 400 4x4 Auto TBX - Front Left
2006-2010 Arctic Cat 400 4x4 Auto TRV - Front Left
2007-2007 Arctic Cat 400 4x4 Auto TRV Plus - Front Left
2006-2006 Arctic Cat 400 4x4 Auto VP - Front Left
2006-2006 Arctic Cat 400 4x4 VP - Front Left
2010-2010 Arctic Cat 450 EFI H1 4x4 Auto - Front Left
2006-2009 Arctic Cat 500 4x4 - Front Left
2006-2009 Arctic Cat 500 4x4 Auto - Front Left
2006-2006 Arctic Cat 500 4x4 Auto LE - Front Left
2008-2008 Arctic Cat 500 4x4 Auto M4 - Front Left
2006-2006 Arctic Cat 500 4x4 Auto TBX - Front Left
2006-2006 Arctic Cat 500 4x4 Auto TRV - Front Left
2008-2008 Arctic Cat 500 4x4 Auto TRV - Front Left
2009-2011 Arctic Cat 550 4x4 Auto - Front Left
2009-2010 Arctic Cat 550 4x4 Auto LE - Front Left
2009-2011 Arctic Cat 550 4x4 Auto TRV - Front Left
2009-2009 Arctic Cat 550 4x4 Auto TRV LE - Front Left
2011-2011 Arctic Cat 550 LTD - Front Left
2011-2011 Arctic Cat 550 S - Front Left
2011-2011 Arctic Cat 550 TRV Cruiser - Front Left
2011-2011 Arctic Cat 550 TRV GT - Front Left
2009-2009 Arctic Cat 650 4x4 Auto TBX - Front Left
2006-2008 Arctic Cat 650 H1 4x4 Auto - Front Left
2010-2011 Arctic Cat 650 H1 4x4 Auto - Front Left
2007-2007 Arctic Cat 650 H1 4x4 Auto LE - Front Left
2010-2011 Arctic Cat 650 H1 4x4 Auto Mud Pro - Front Left
2006-2006 Arctic Cat 650 H1 4x4 Auto SE - Front Left
2007-2007 Arctic Cat 650 H1 4x4 Auto TBX - Front Left
2008-2009 Arctic Cat 650 H1 4x4 Auto TRV - Front Left
2007-2007 Arctic Cat 650 H1 4x4 Auto TRV Plus - Front Left
2007-2007 Arctic Cat 650 H1 4x4 Auto TRV Plus LE - Front Left
2006-2006 Arctic Cat 650 V-2 4x4 Auto - Front Left
2006-2006 Arctic Cat 650 V-2 4x4 Auto LE/TS - Front Left
2011-2011 Arctic Cat 700 - Front Left
2014-2014 Arctic Cat 700 - Front Left
2007-2008 Arctic Cat 700 Diesel - Front Left
2007-2008 Arctic Cat 700 EFI 4x4 Auto - Front Left
2007-2007 Arctic Cat 700 EFI 4x4 Auto LE - Front Left
2008-2008 Arctic Cat 700 EFI 4x4 Auto M4 - Front Left
2006-2006 Arctic Cat 700 EFI 4x4 Auto SE - Front Left
2008-2011 Arctic Cat 700 EFI 4x4 Auto TRV Cruiser - Front Left
2008-2008 Arctic Cat 700 EFI 4x4 Auto TRV LE - Front Left
2009-2010 Arctic Cat 700 EFI H1 4x4 Auto - Front Left
2009-2010 Arctic Cat 700 EFI H1 4x4 Auto LE - Front Left
2009-2011 Arctic Cat 700 EFI H1 4x4 Auto Mud Pro - Front Left
2008-2009 Arctic Cat 700 EFI H1 4x4 Auto SE - Front Left
2010-2010 Arctic Cat 700 EFI H1 4x4 Auto TBX - Front Left
2009-2011 Arctic Cat 700 EFI H1 4x4 Auto TRV - Front Left
2014-2014 Arctic Cat 700 LTD - Front Left
2010-2011 Arctic Cat 700 S - Front Left
2012-2014 Arctic Cat 700 Super Duty Diesel - Front Left
2012-2012 Arctic Cat 550 - Front Left
2014-2014 Arctic Cat 550 - Front Left
2012-2012 Arctic Cat 550i GT - Front Left
2012-2013 Arctic Cat 550i LTD - Front Left
2012-2012 Arctic Cat 700i - Front Left
2012-2012 Arctic Cat 700i GT - Front Left
2012-2013 Arctic Cat 700i LTD - Front Left
2012-2012 Arctic Cat TRV 450i - Front Left
2012-2012 Arctic Cat TRV 450i GT - Front Left
2012-2012 Arctic Cat TRV 550i Crusier - Front Left
2012-2012 Arctic Cat TRV 700i Cruiser - Front Left
2012-2012 Arctic Cat TRV 700i GT - Front Left
2013-2014 Arctic Cat 1000 XT - Front Left
2013-2014 Arctic Cat 500 XT - Front Left
2013-2014 Arctic Cat 550 XT - Front Left
2013-2014 Arctic Cat 700 XT - Front Left
2013-2014 Arctic Cat TRV 550 LTD - Front Left
2013-2014 Arctic Cat TRV 550 XT - Front Left
2013-2014 Arctic Cat TRV 700 LTD - Front Left
2013-2014 Arctic Cat TRV 700 XT - Front Left
2014-2015 Arctic Cat 400 - Front Left
