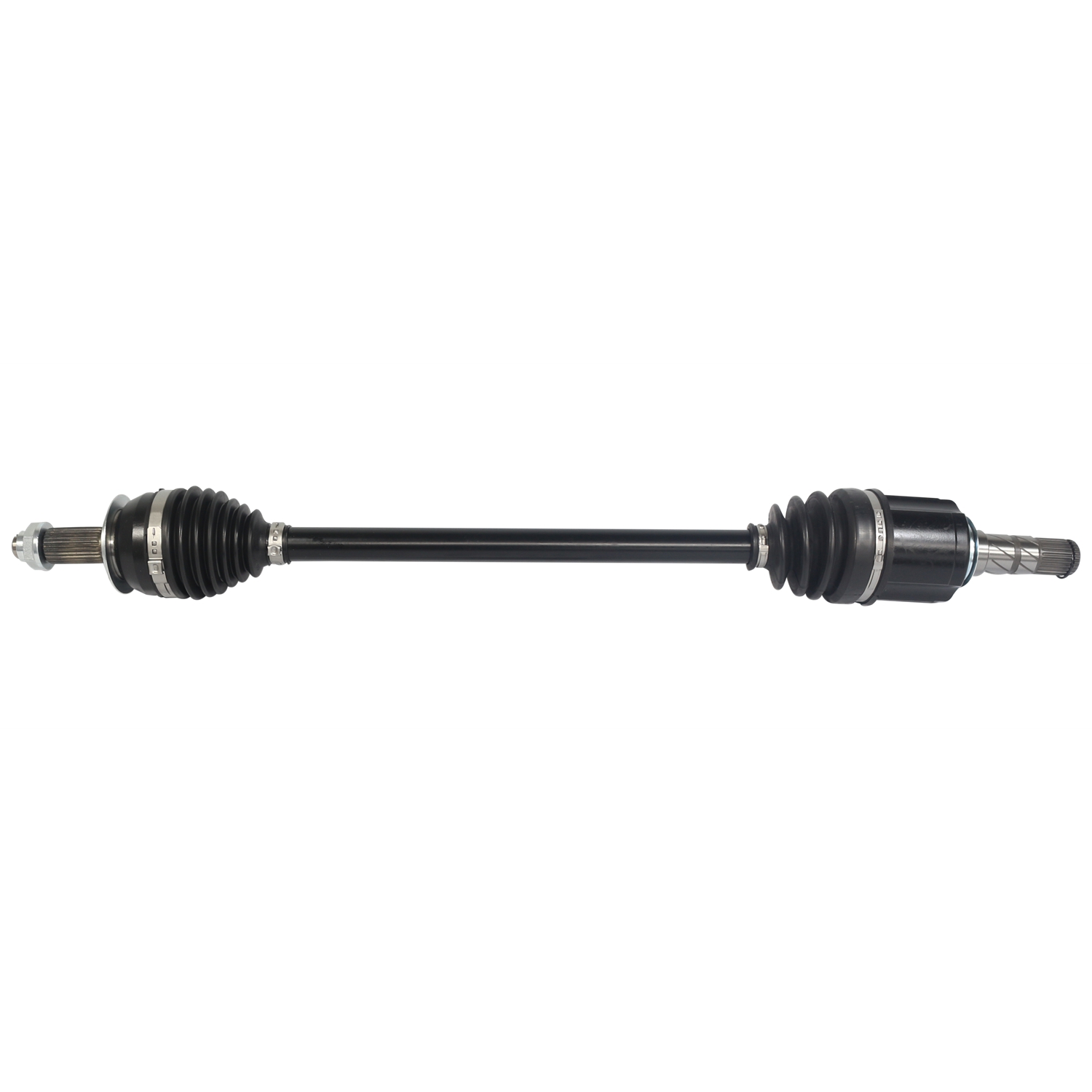

Subaru CV Axle Assembly - Front
SPECIFICATIONS
ABS Tone Ring Included
NO
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Hex
California Proposition 65
Yes
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Placement
Front
ABS Tone Ring Tooth Quantity
-
Axle Nut Length
20
Axle Nut Thread Size
M22X1.5
Boot Material
TPE(OBJ)/Neoprene(IBJ)
Compressed Length
30.59
Inboard Spline Quantity
25
Outboard Spline Quantity
27
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● High-Perf CV Boot prevents deformation, wear, swelling, and leakage for superior durability
● Premium Grease for improved lubrication resulting in a better service life
● OE style Inner and outer joint structures
● Friction welded intermediate shafts
● Premium coated center bar & inner/outer joint
● Designed for luxury late model applications
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2010-2010 | Subaru | Impreza | WRX Limited, WRX GT, WRX SE, 2.5i Limited | Front |
2010-2011 | Subaru | Impreza | 2.5i Premium | Front |
2009-2010 | Subaru | Impreza | 2.5 GT, R, WRX Premium | Front |
2008-2011 | Subaru | Impreza | 2.5i, Outback Sport | Front |
2008-2010 | Subaru | Impreza | Sport, WRX | Front |
2008-2008 | Subaru | Impreza | 2.0R | Front |
2005-2009 | Subaru | Legacy | Front | |
2005-2009 | Subaru | Outback | Front |
