06-13 Suzuki Grand Vitara CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
NO
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Hex
California Proposition 65
Yes

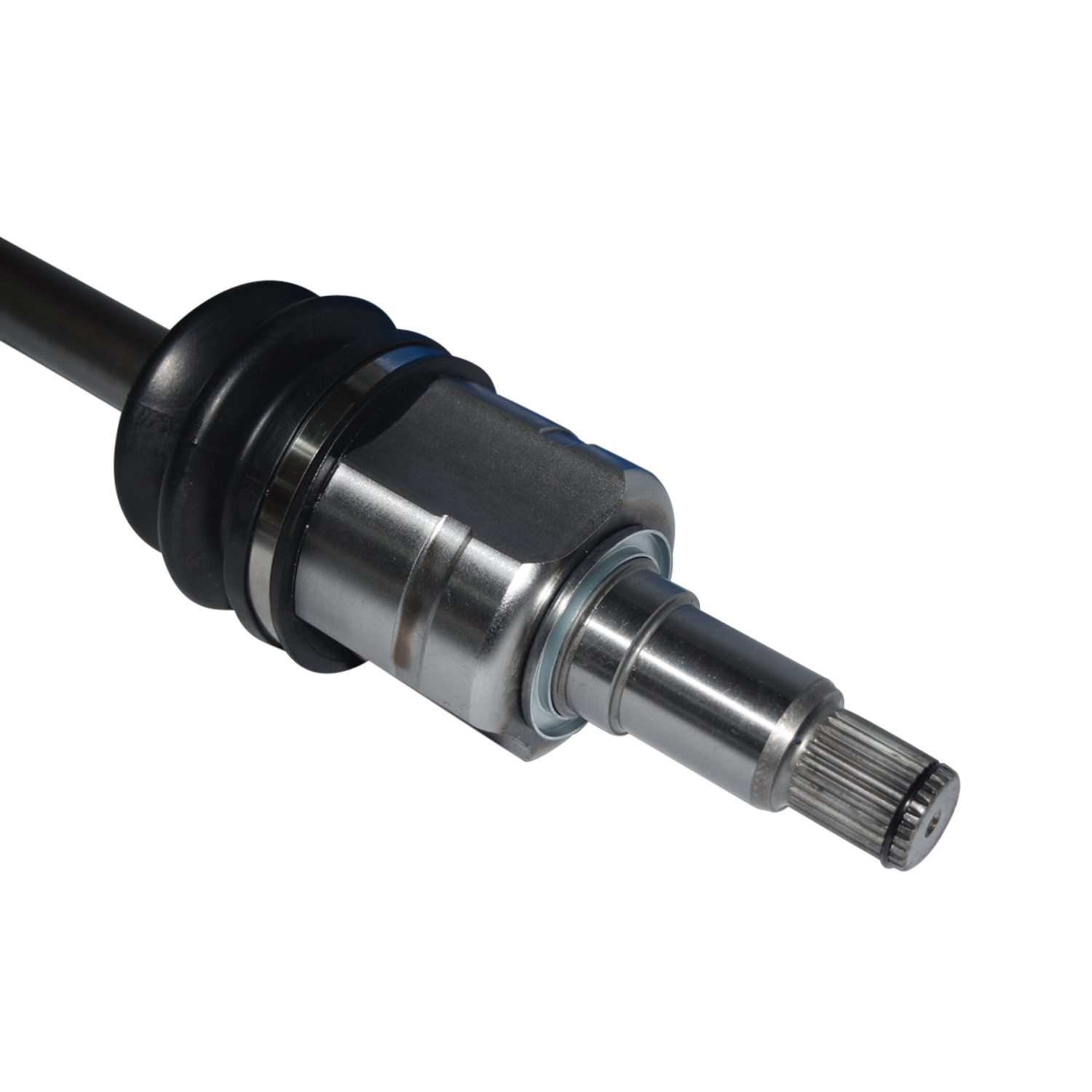

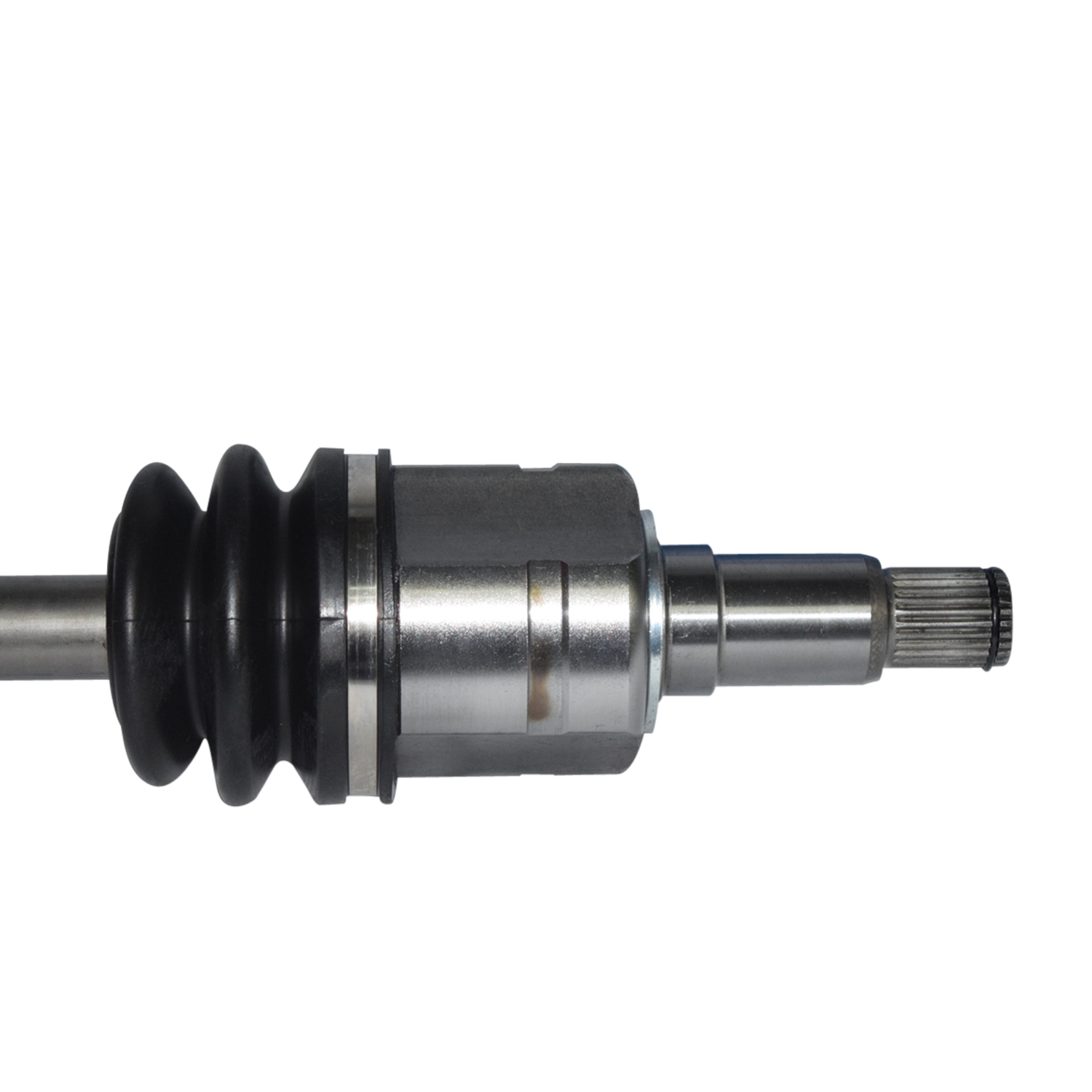

Inboard Joint Type
Male

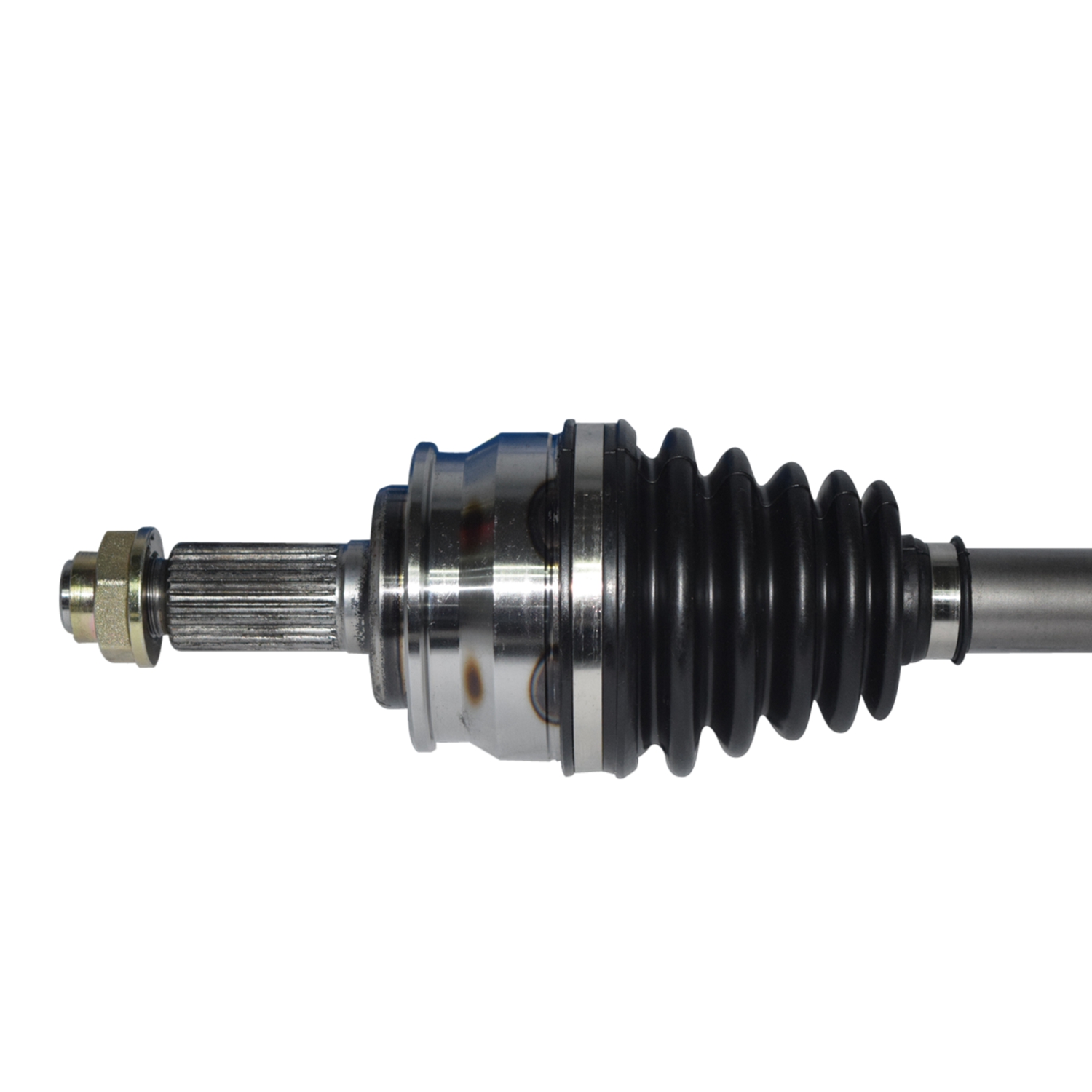

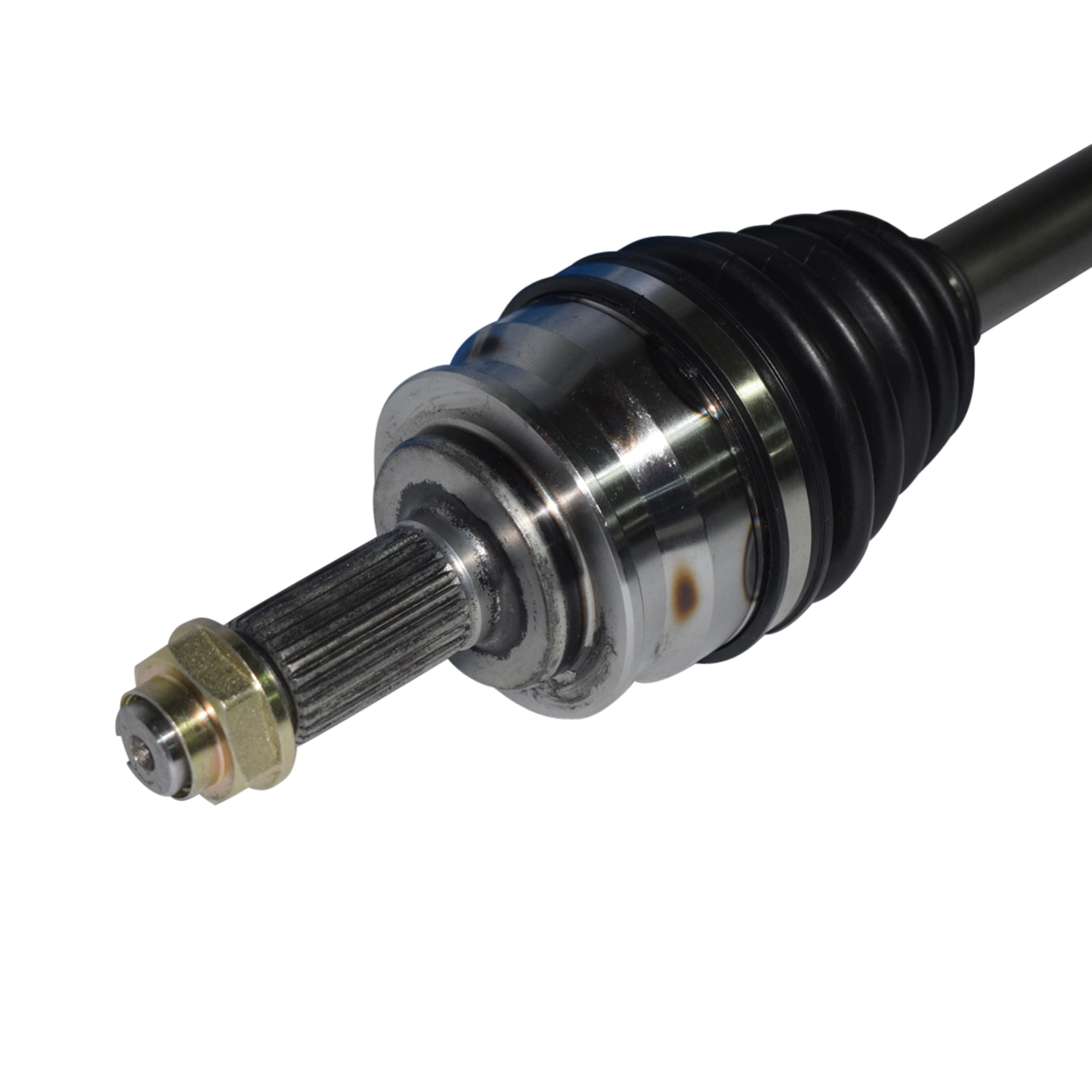

Outboard Joint Type
Conventional
Placement
Front Right
ABS Tone Ring Tooth Quantity
-
Axle Nut Length
20
Axle Nut Thread Size
M22×1.5
Boot Material
Neoprene

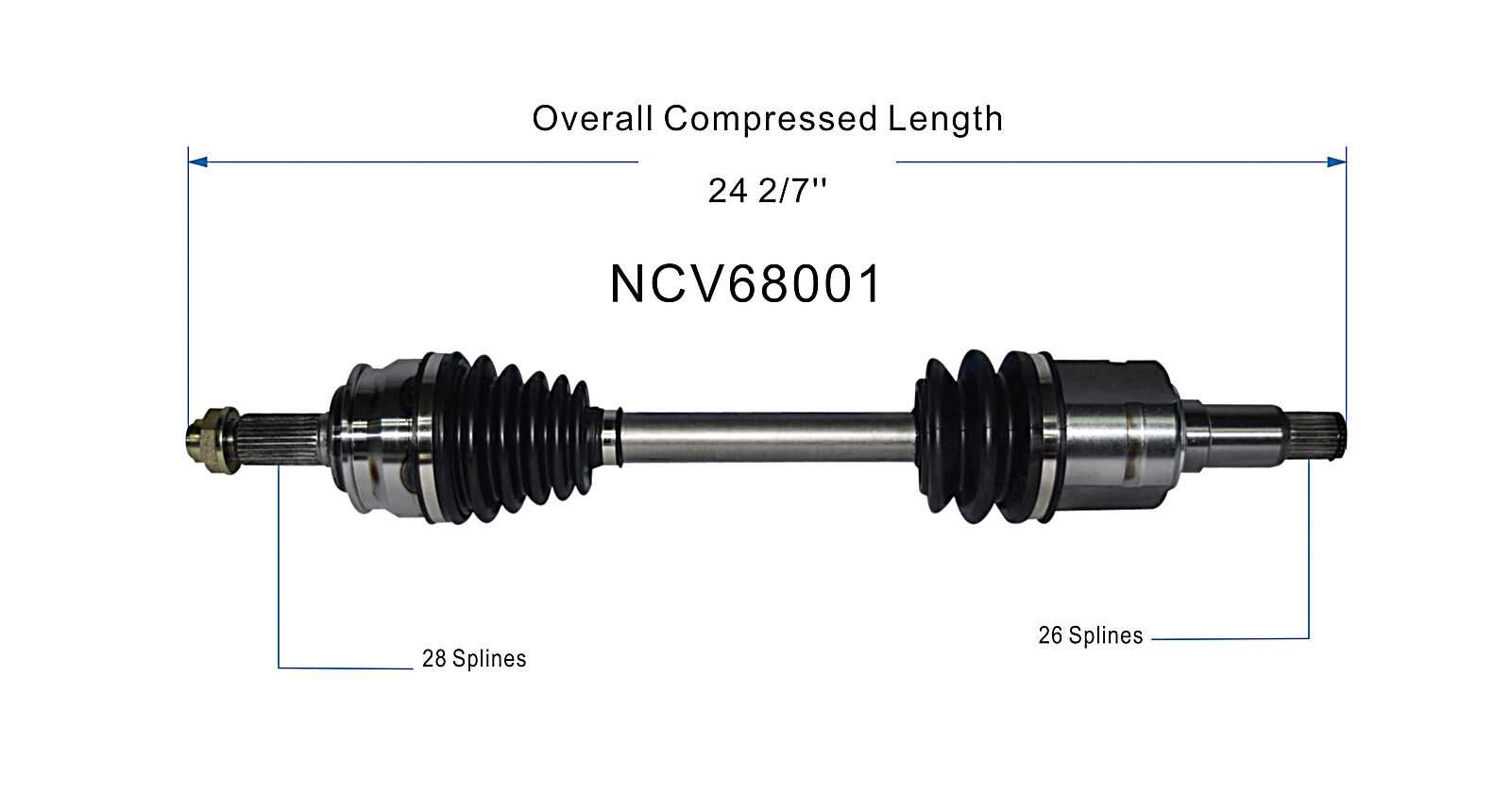

Compressed Length
617
Inboard Spline Quantity
26
Outboard Spline Quantity
28
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● Extensive quality control and testing process to ensure a long-lasting performance
● Heat-treated components provide premium strength, increased tensile, and extended service life
● GSP Silent Ride Technology OE designed and manufactured CV joints to provide a quiet ride
● Premium grade neoprene boots provide protection against dirt and debris in driving conditions
● Specially formulated moly grease for optimal performance at high temperatures
● High-quality stainless-steel clamps for heavy duty strength and durability
● Spline rolled for precise durable fitment
● GSP CV Axles are covered with a limited lifetime warranty
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2010-2010 | Suzuki | Grand Vitara | JLX, GLS | Front Right |
2010-2013 | Suzuki | Grand Vitara | Limited | Front Right |
2009-2013 | Suzuki | Grand Vitara | Premium | Front Right |
2006-2008 | Suzuki | Grand Vitara | Base | Front Right |
2006-2010 | Suzuki | Grand Vitara | XSport | Front Right |
2006-2009 | Suzuki | Grand Vitara | Luxury | Front Right |
2006-2006 | Suzuki | Grand Vitara | Premium | Front Right |
