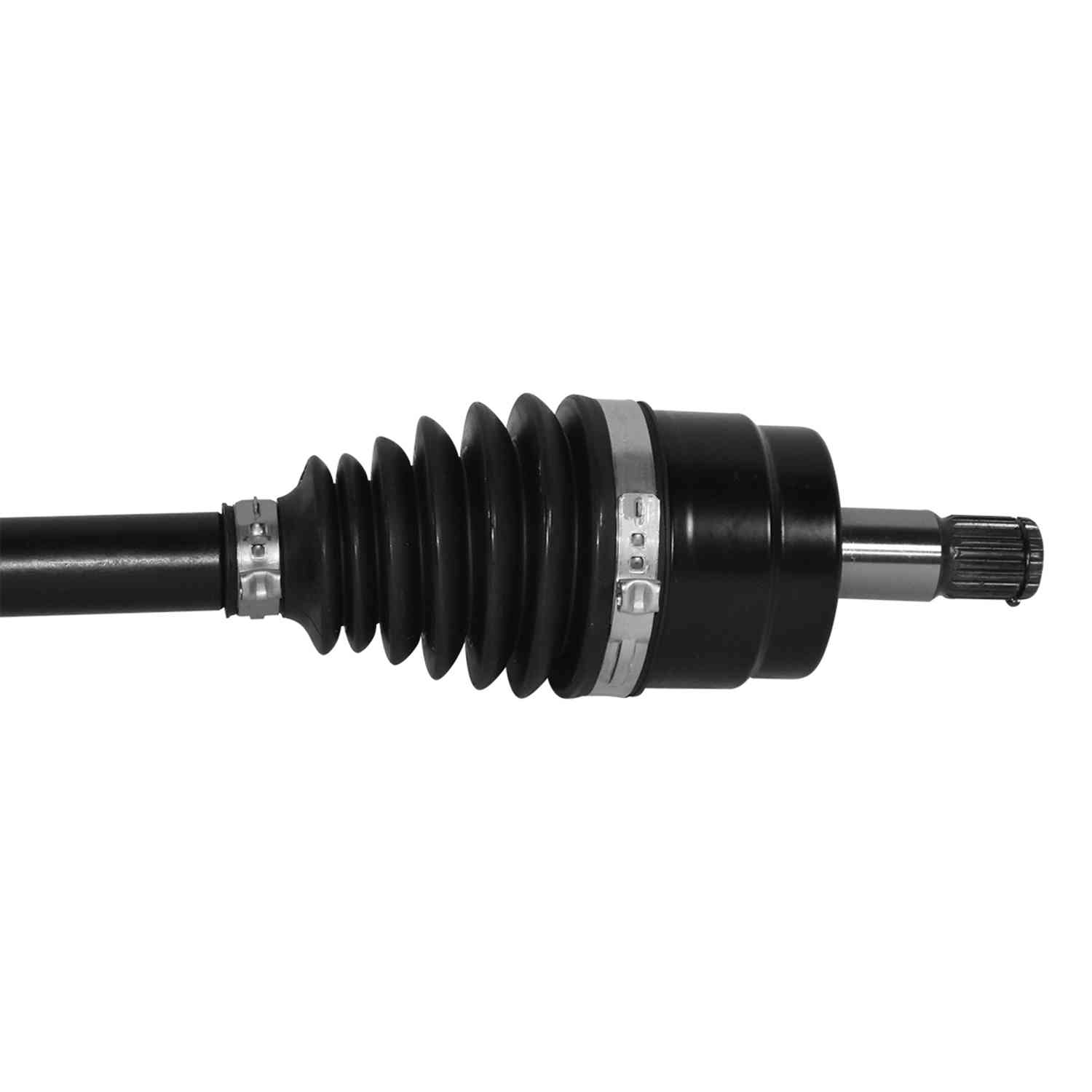

Yamaha CV Axle Assembly - Front Left
SPECIFICATIONS
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Castle Nut
California Proposition 65
Yes
Dynamic Damper Attached
No
Inboard Joint Type
DOJ
Outboard Joint Type
BJ
Placement
Front Left
Axle Nut Length
0.93
Axle Nut Thread Size
M24X1.5-6H
Boot Material
TPE
Compressed Length
24.02
Extended Length
25.18
Inboard Spline Quantity
21
Outboard Spline Quantity
27
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● High performance Moly grease for optimal performance
● Premium grade neoprene & TPEE boots
● Heavy Duty Center Shafts use industry leading alloy material
● Oversized CV joints dramatically improved strength for high articulation angles
● Precision engineered cage and housing for reduced friction and a smooth range of motion
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2009-2009 | Yamaha | YFM450 Grizzly 4x4 Auto | Front Left | |
2008-2008 | Yamaha | YXR45F Rhino 450 Special Edition | Front Left | |
2006-2009 | Yamaha | YXR45F Rhino 450 | Front Left | |
2004-2007 | Yamaha | YXR66F Rhino 660 | Front Left |
