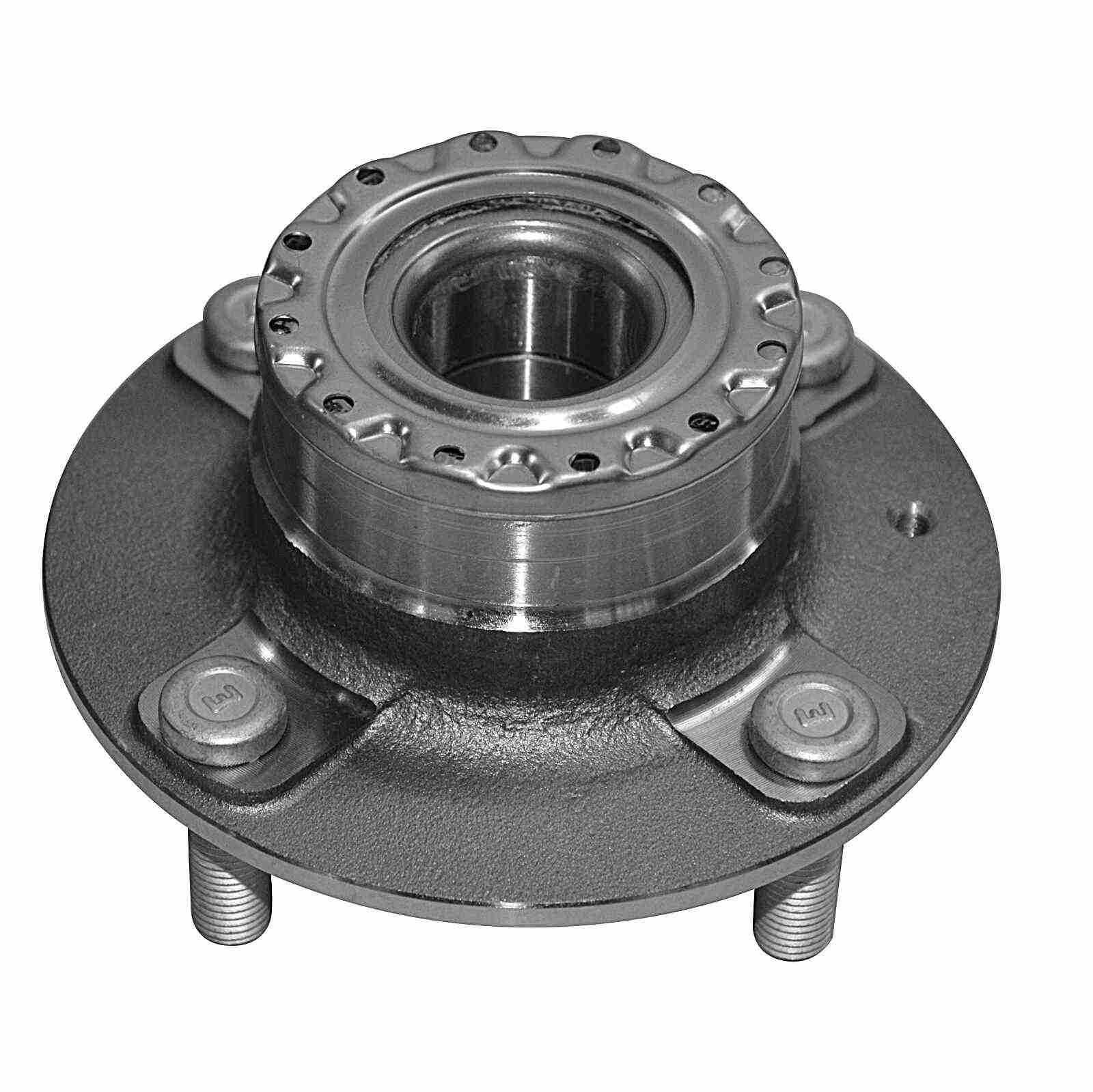

01-05 Hyundai Elantra (2.0 - Disc/Drum) Wheel Bearing and Hub Assembly
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
-
Anti Lock Braking System Type
-
Bearing Type
Ball
Bolt Thread Pitch
M12×1.5
Brake Pilot Diameter
76
Flange Bolts Included
No
Flange Included
Yes
Placement
Rear Right
Anti Lock Braking System
No
Bearing Generation
Gen 2
Bolt Circle Diameter
114.3
Bolts Included
No
California Proposition 65
Yes
Flange Diameter
139
Flange Offset
50.5
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2005-2005 | Hyundai | Elantra | GLS | Rear |
2003-2004 | Hyundai | Elantra | GT, GLS | Rear Right |
2001-2002 | Hyundai | Elantra | GLS | Rear Right |
