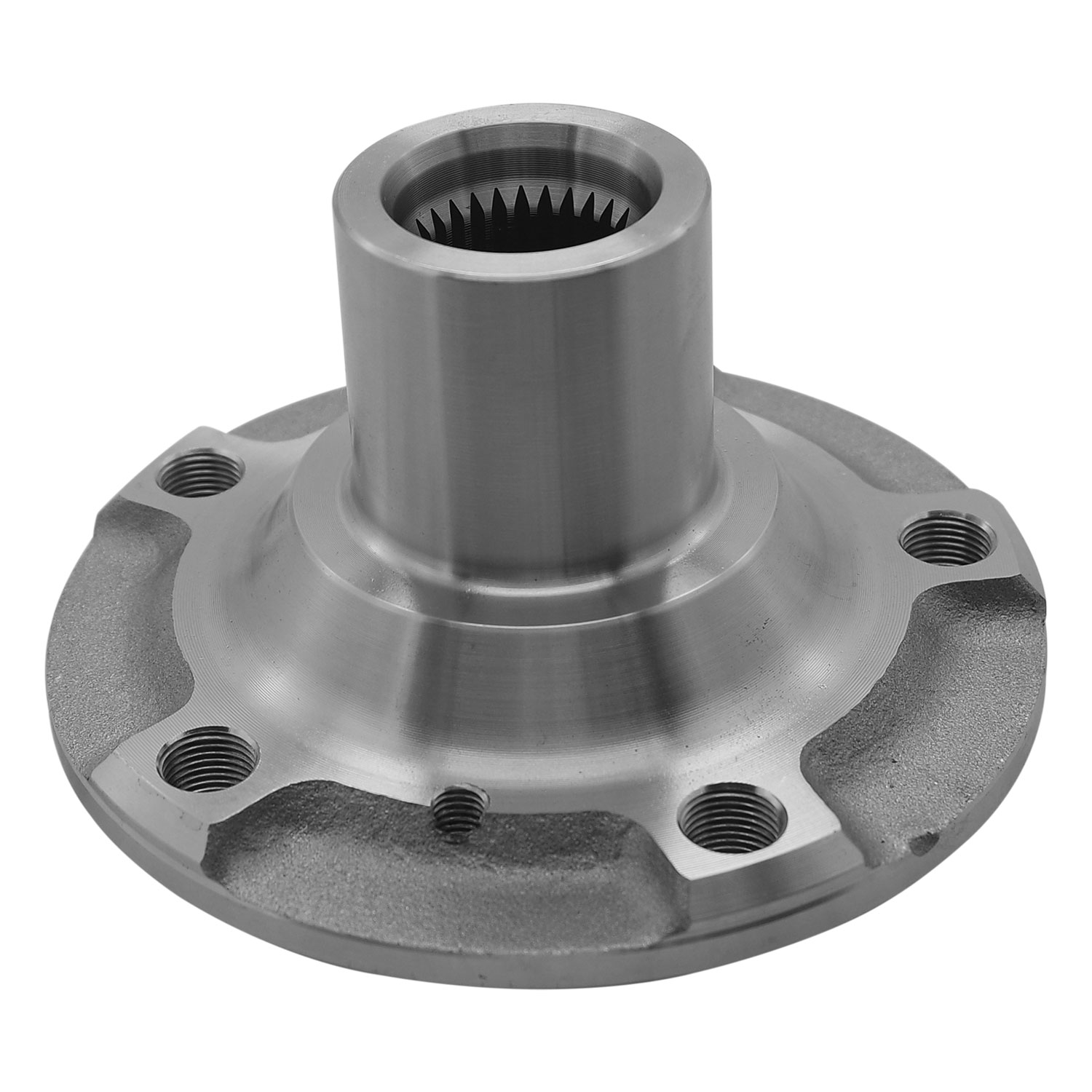

BMW Wheel Hub - Rear
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
-
Anti Lock Braking System Type
-
Bearing Type
-
Bolt Thread Pitch
M14×1.25
Brake Pilot Diameter
75
Driven Type
Driven
Flange Bolts Included
No
Flange Included
Yes
Anti Lock Braking System
No
Bearing Generation
Wheel Hub
Bolt Circle Diameter
120
Bolts Included
No
California Proposition 65
Yes
Flange Bolt Hole Quantity
-
Flange Diameter
145
Flange Offset
48
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
|---|---|---|---|---|
2015-2019 | BMW | X6 | xDrive50i, xDrive35i, sDrive35i | Rear |
2014-2018 | BMW | X5 | sDrive35i | Rear |
2011-2018 | BMW | X5 | xDrive35i, xDrive50i, xDrive35d | Rear |
2007-2010 | BMW | X5 | Rear |
VIDEO
