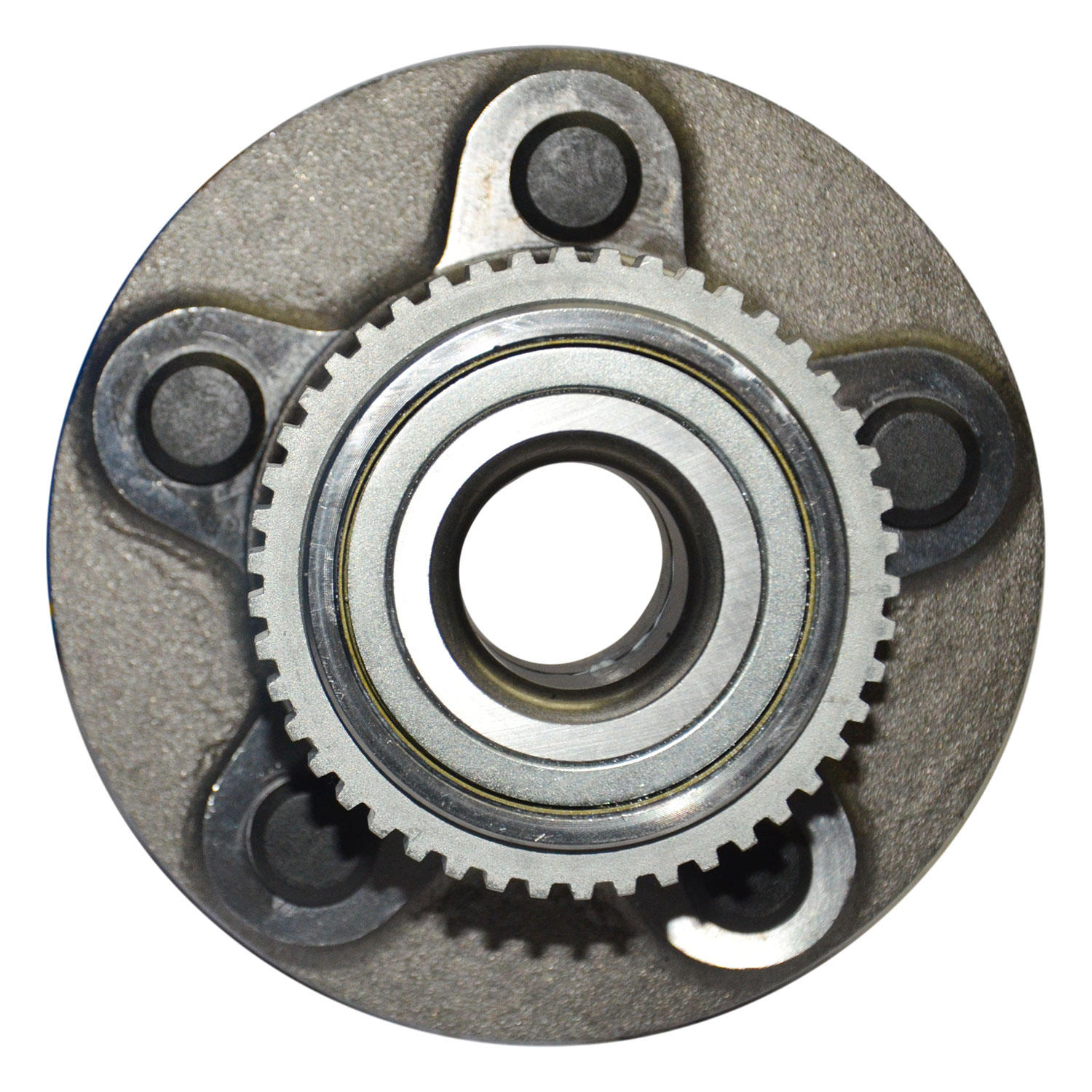

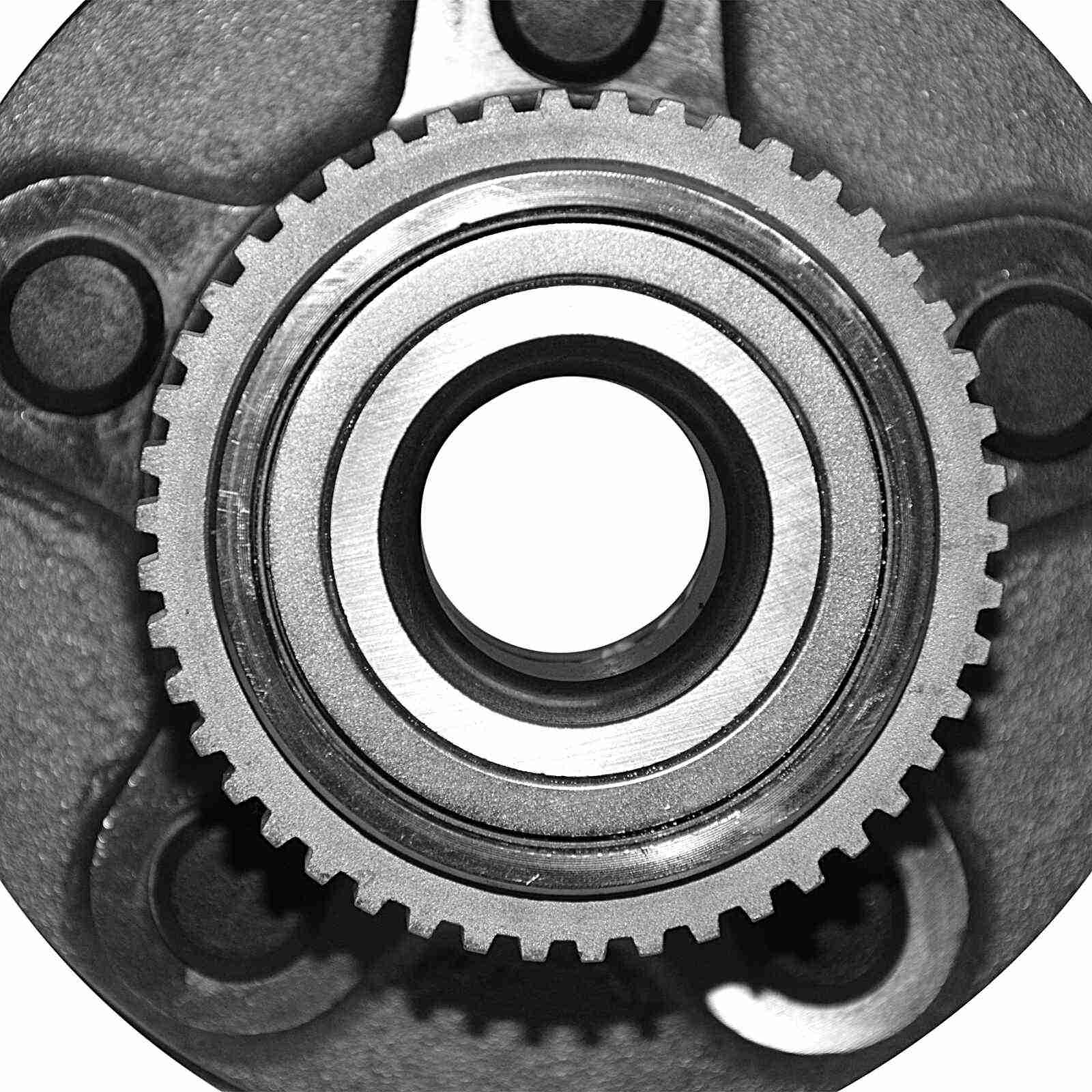

01-03 Chrysler PT Cruiser (2.4 - Disc) Wheel Bearing and Hub Assembly
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
46
Anti Lock Braking System Type
Tone Ring
Bearing Type
Ball
Bolt Thread Pitch
M12×1.5
Brake Pilot Diameter
57.35
Flange Bolts Included
No
Flange Included
Yes
Hub Pilot Diameter
76
Anti Lock Braking System
Yes
Bearing Generation
Gen 2
Bolt Circle Diameter
100
Bolts Included
No
California Proposition 65
Yes
Flange Diameter
135
Flange Offset
57.5
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
● Designed with raw steel material that meets or exceeds standards to produce a long-lasting service life.
● All hub assemblies go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components.
● Ball bearings are spaced precisely to the appropriate clearance for smooth rotation and abrasion resistance.
● High quality rubber optimizes the seals performance and durability against high-temperatures and weathering.
● To ensure a smooth surface, free from defects, all bearing housings are manufactured with polyamides for added impact toughness and age resistance.
APPLICATIONS
Year Range | Make | Model | Sub Model | Position |
---|---|---|---|---|
2002-2002 | Chrysler | PT Cruiser | Base, Limited, Dream, Touring | Rear Right |
2001-2003 | Chrysler | PT Cruiser | Base | Rear |
VIDEO
